SE6166 Controller • Rev. 4/13/2011 11 © 2011 Automated Logic Corporation
Color Code Black, white, green, red
Shielding If shielded, Aluminum/Mylar shield (100% coverage) with TC
drain wire
UL temperature rating 32–167°F (0–75°C)
Voltage 300 Vac, power limited
Listing UL: NEC CL2P, or better
1 Turn off the SE6166's power.

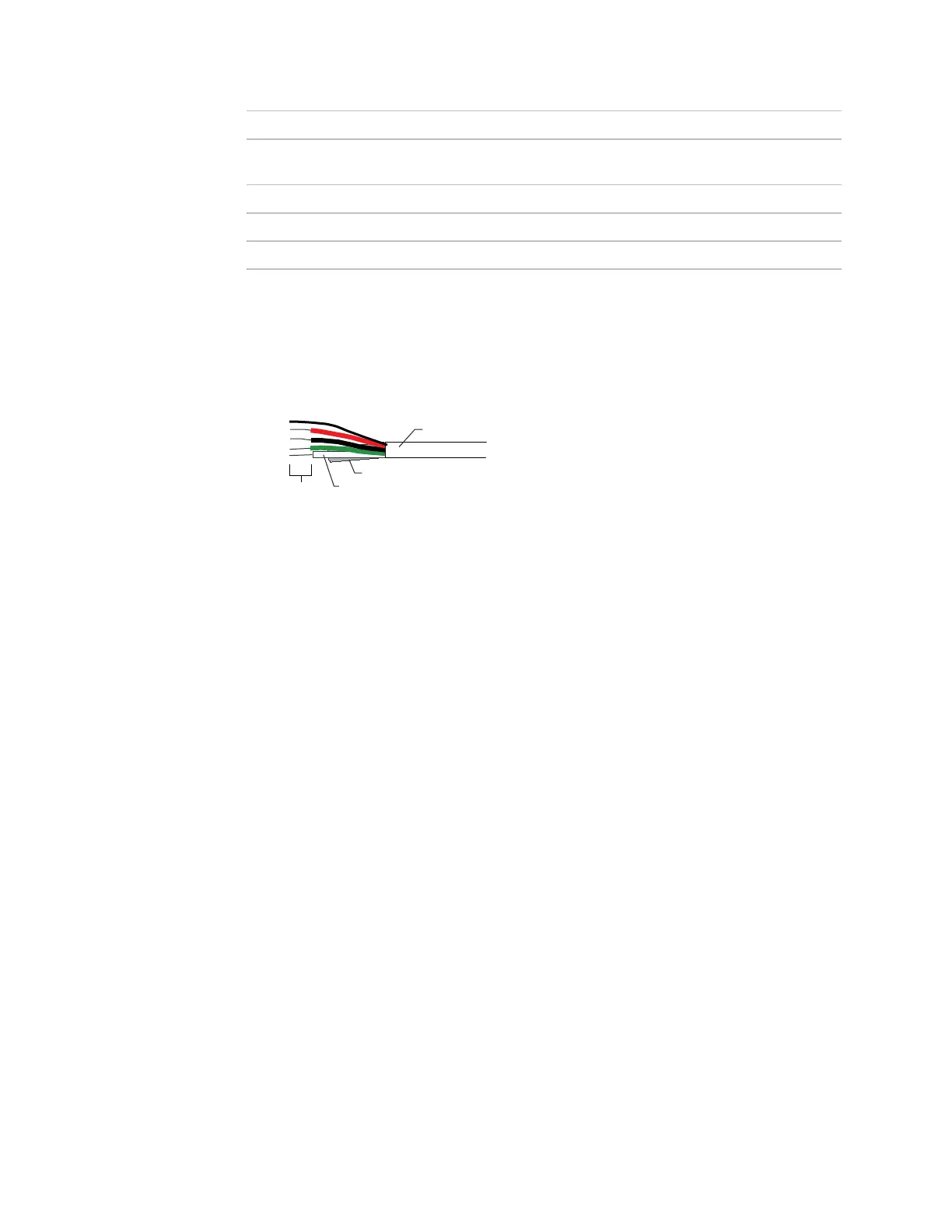

2 Partially cut, then bend and pull off the outer jacket of the Rnet cable(s). Do not nick
the inner insulation.
3
Inner insulation
Outer jacket
Foil shield
.25 in.
(.6 cm)
4 Strip about .25 inch (.6 cm) of the inner insulation from each wire.
5 Wire each terminal on the SE6166's Rnet port to the terminal of the same name on
the RS room sensor.
NOTE If using shielded wire, connect the shield wire and the ground wire to the Gnd
terminal.
6 Set the Stat Select jumper to Rnet.
7 Turn on the SE6166's power.
Use 22 AWG, unshielded wire, maximum length 100 feet (30 meters).
1 Turn off the SE6166's power.
2 Wire each terminal on the SE6166's LStat port to the terminal of the same name on
the LogiStat.
3 Set the Stat Select jumper to LogiStat.
4 Turn on the SE6166's power.
To wire an RS
sensor
LogiStat wiring
specifications
To wire a LogiStat
sensor
