ZoneLogix™ PRO Zone Controller User Guide | Revision 1.0 November 2019 | Page 28

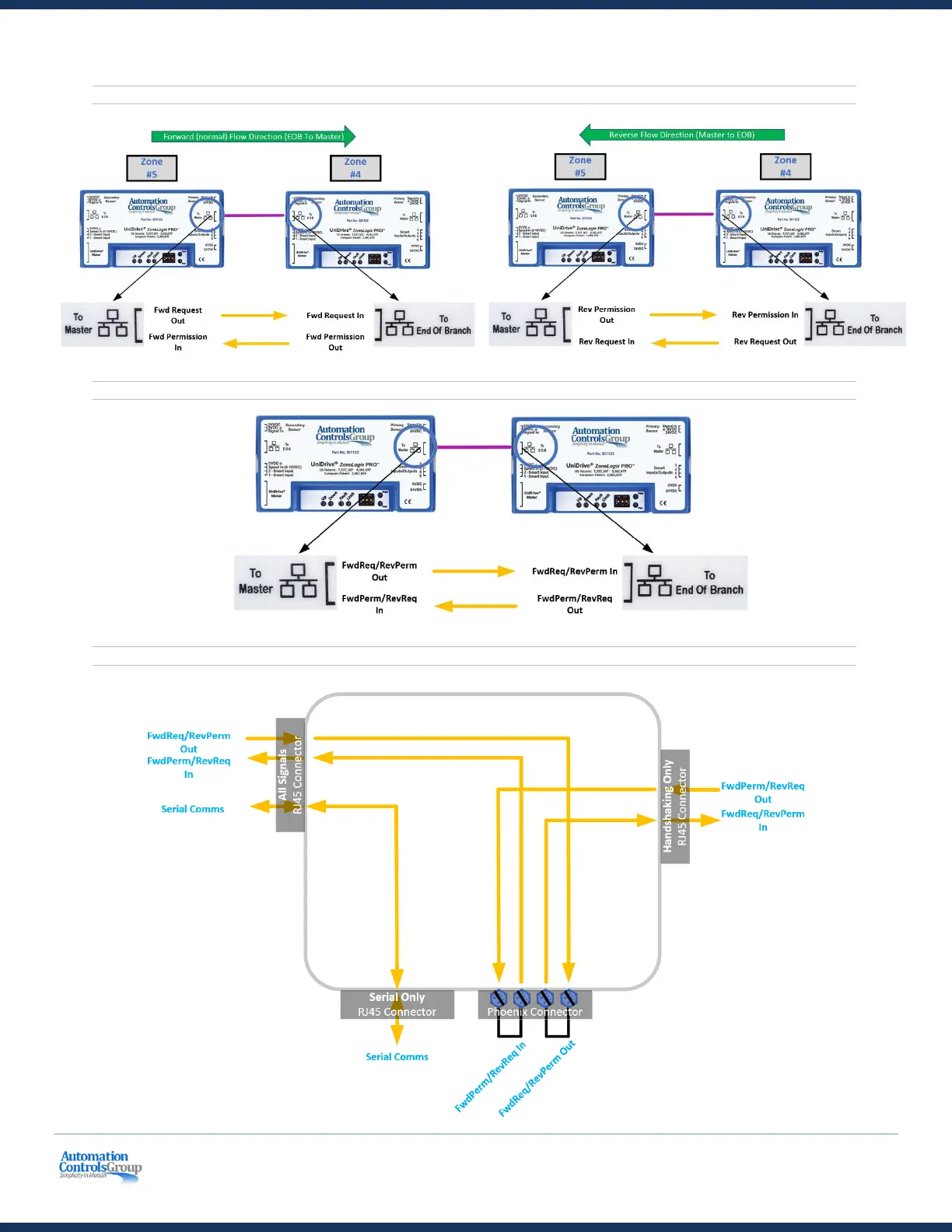

Figure 13: Handshaking Signals Showing Forward and Reverse Flow Request / Permission Signals

Figure 14: Handshaking Signals Showing Both Forward / Reverse Request / Permission Signals

Figure 15: Internal Diagram of the Breakout Module
