ZoneLogix™ PRO Branch Monitor Guide | Revision 0.1 September 2019 | Page 34

Appendix A:

Operating Modes

A.1.

Singulate (ZPA)

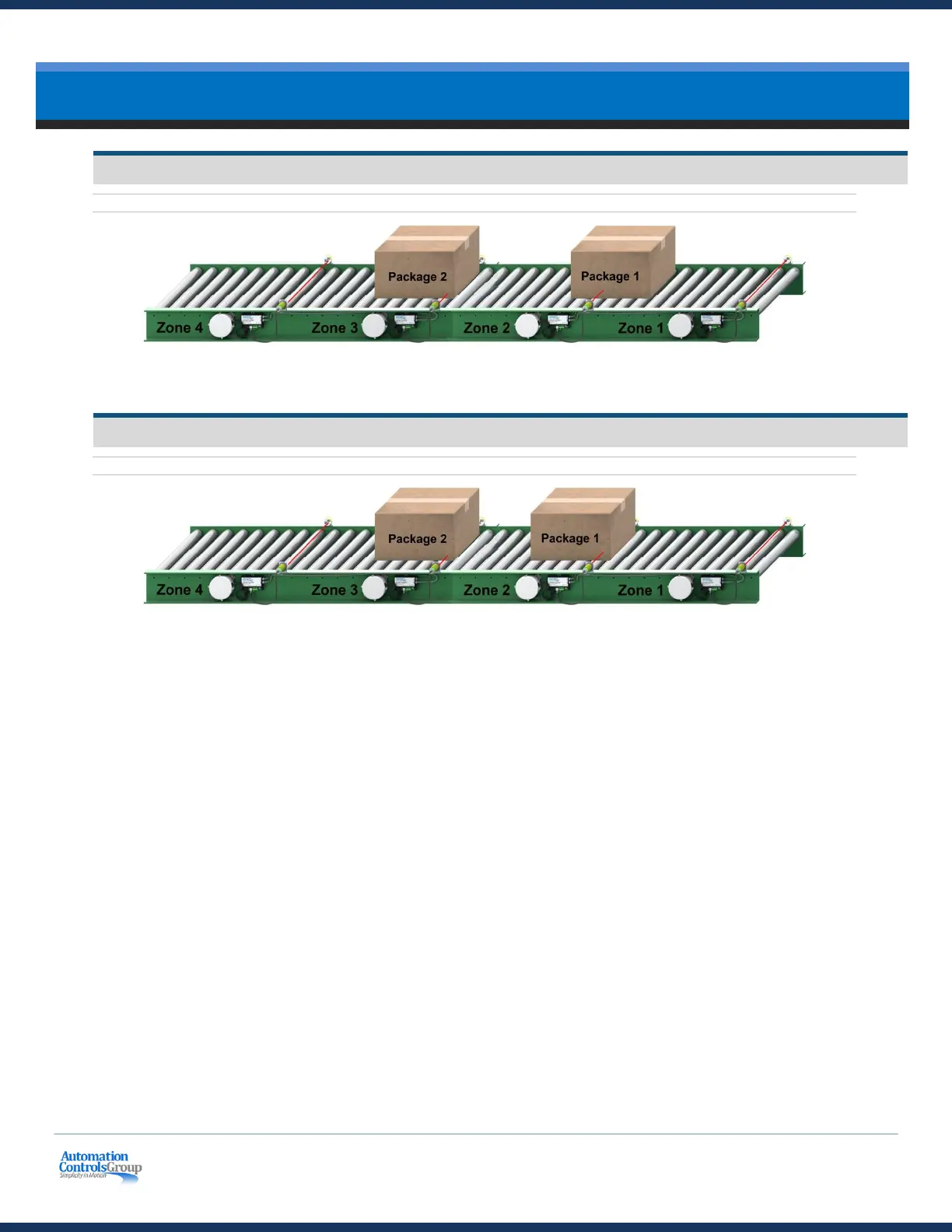

Figure 21: Singulate (Singulate Mode)

Package 2 will be held in Zone 3 and not allowed to enter Zone 2 until Package 1 has cleared the Zone 2 sensor.

A.2.

Slug

Figure 22: Slug (Slug Mode)

All zones will run in this mode if the Sleep Timer has not expired, however if Zone 2 is in accumulation it will stop Zone 3.
