4. Consistency Check
of Configuration Data
4.1 Introduction
4.2 Parameters Used for the Consistency Check

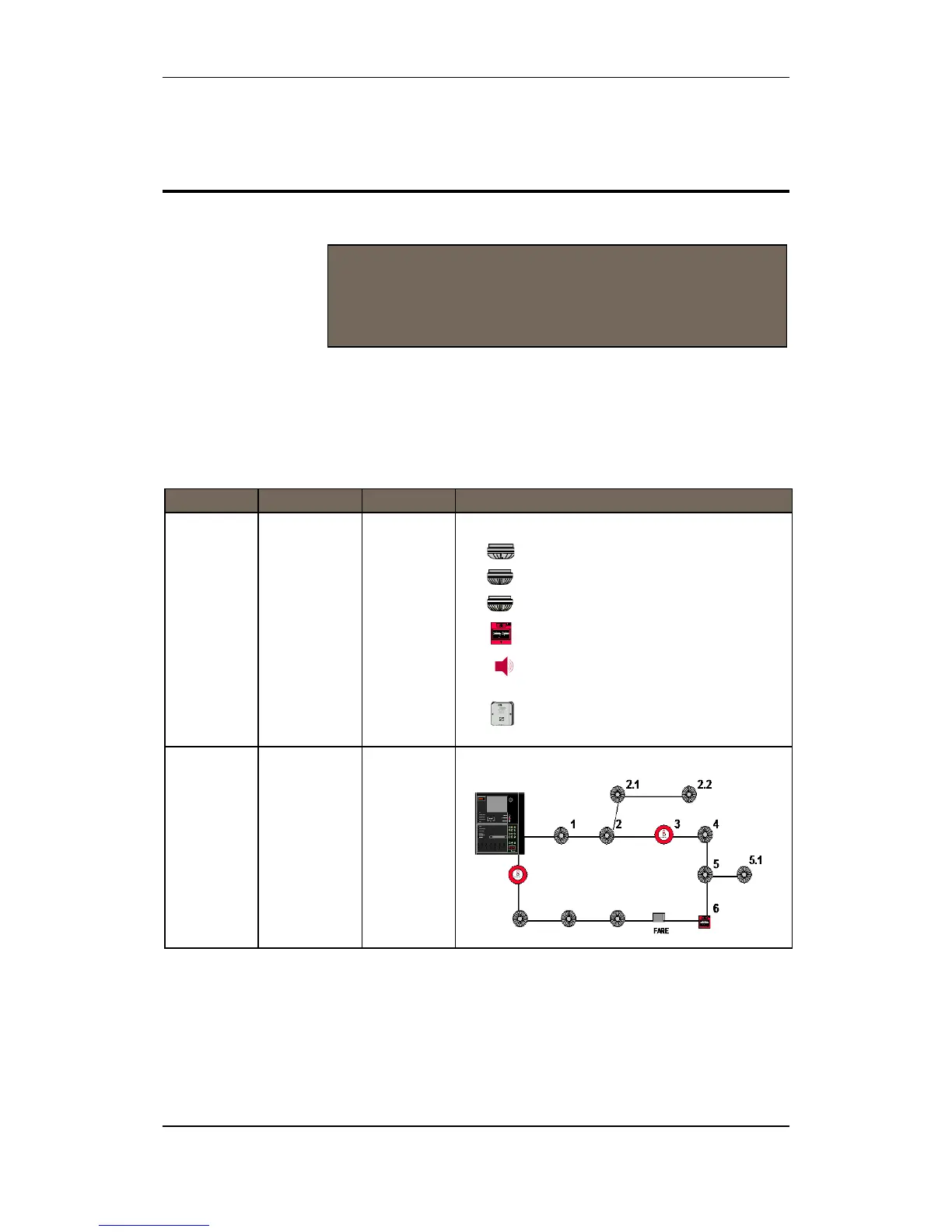

The table below provides a description of two of the parameters that
are used for the consistency check. These parameters are shown in
the Topology View in AS-2000, as well as in the topology view in the
AutroSafe Configuration Tool.
Parameter
Abbreviation
Description
Illustration
Loop Unit
The loop unit
can be a
detector, a
manual call
point, a loop
sounder or an
I/O unit.
(Examples)
Heat detector (BD-200/300/500)
Optical smoke detector (BH-200/300/500)
MultiSensor detector (BH-220/320/520)
Manual callpoint (BF-200/300/500)
Electronic addressable sounder
(BBR-200)
Input / Output unit (BN-300, BN-310, BN-320 etc.)
Loop
Sequence
Index
LSI
A loop specific
index telling the
exact Loop Unit
order on the
loop
(sequencially
numbered).
A branch-off is
described by a
decimal
followed by a
sequencial
index.
NOTE:
To ensure a problem-
free upload of configuration data, always
perform a consistency check, using the results from the
AS-2000 verification and the data that has been configured by
means of the AutroSafe Configuration Tool.
