6.4 Assigning Panel IDs
Each panel in the system must be assigned a unique Panel ID (switch
setting; rotary switches X6 and X4, plus the settings of dip-switch S2).
For each different panel type (i.e. BS-420 or BU-420) the addressing
on the rotary switches always starts on 0-1.
Note that a standalone Fire Alarm Control Panel BS-420 always has
Panel ID=00.
Switch X6 corresponds to the most significant digit in the address.
Note that the correct switch settings for the panel type in question is
preset at the factory (dipswitch S2) - except for the BU-BV-420 panel,
as this panel can be defined both as a Information Panel and Fire
Brigade Panel.
The following table deals with the Panel IDs when several panels
communicate on the AutroNet (local area network).
Panel
Panel ID
Panel ID
Hex.
values Rotary
switch X6
Rotary
switch X4
Panel Type
Dip-switch S2
0=OFF, 1=ON
Switch 1 2 3 4
BS-420
1-31
01-1F
0-3
0-9
0 0 0 0
BC-420
33-63
21–3F
0-3
0-9
1 0 0 0
BC-440
33-63
21–3F
0-3
0-9
1 0 0 1
BS-430
65-95
41-5F
0-3
0-9
0 1 0 0
BU-420
97-159
61-9F
0-6
0-9
1 1 0 0
BV-420
161-223
A1-DF
0-6
0-9
1 0 1 0

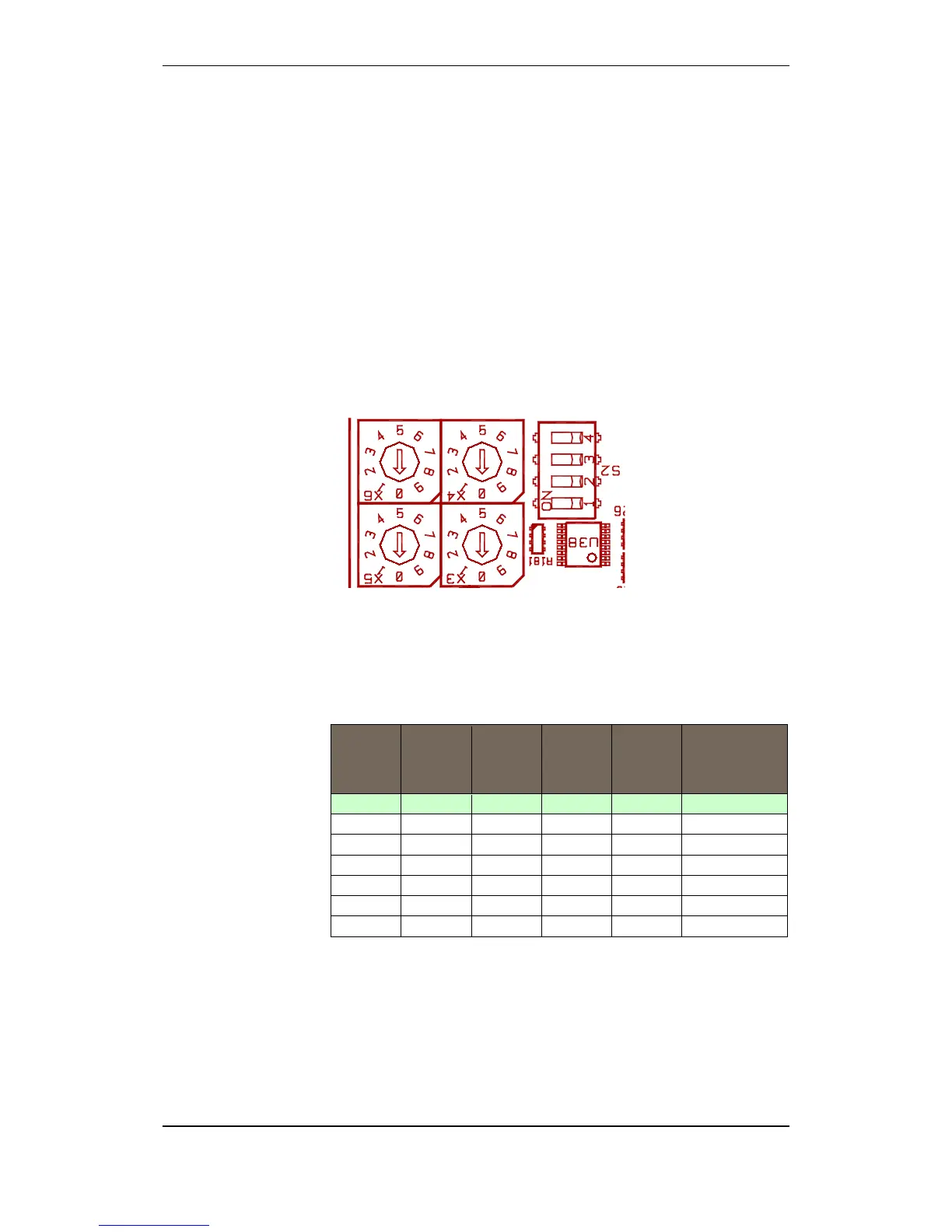

X6
X4
S2
