Avant e5
29
.
Rated operating capacity
To easily determine how much load the loader can
handle safely, a table of the tipping load and a
calculated Rated Operating Capacity (ROC) is
shown in the adjacent label. The label is also visible
from the driver's seat.
Rated operating capacity depends on type of use of
the loader:
In bucket and general application the rated
operating capacity is 50% of tipping load
In pallet fork application the rated operating
capacity is 60% of tipping load
The information shown in the table is the worst case
minimum load, with the conditions listed on page
27. Actual lifting capacity could be significantly
higher, or it may be lower, depending on terrain
conditions, available lifting force, and load
distribution. Adding or removing counterweights will
affect the indicated ROC.

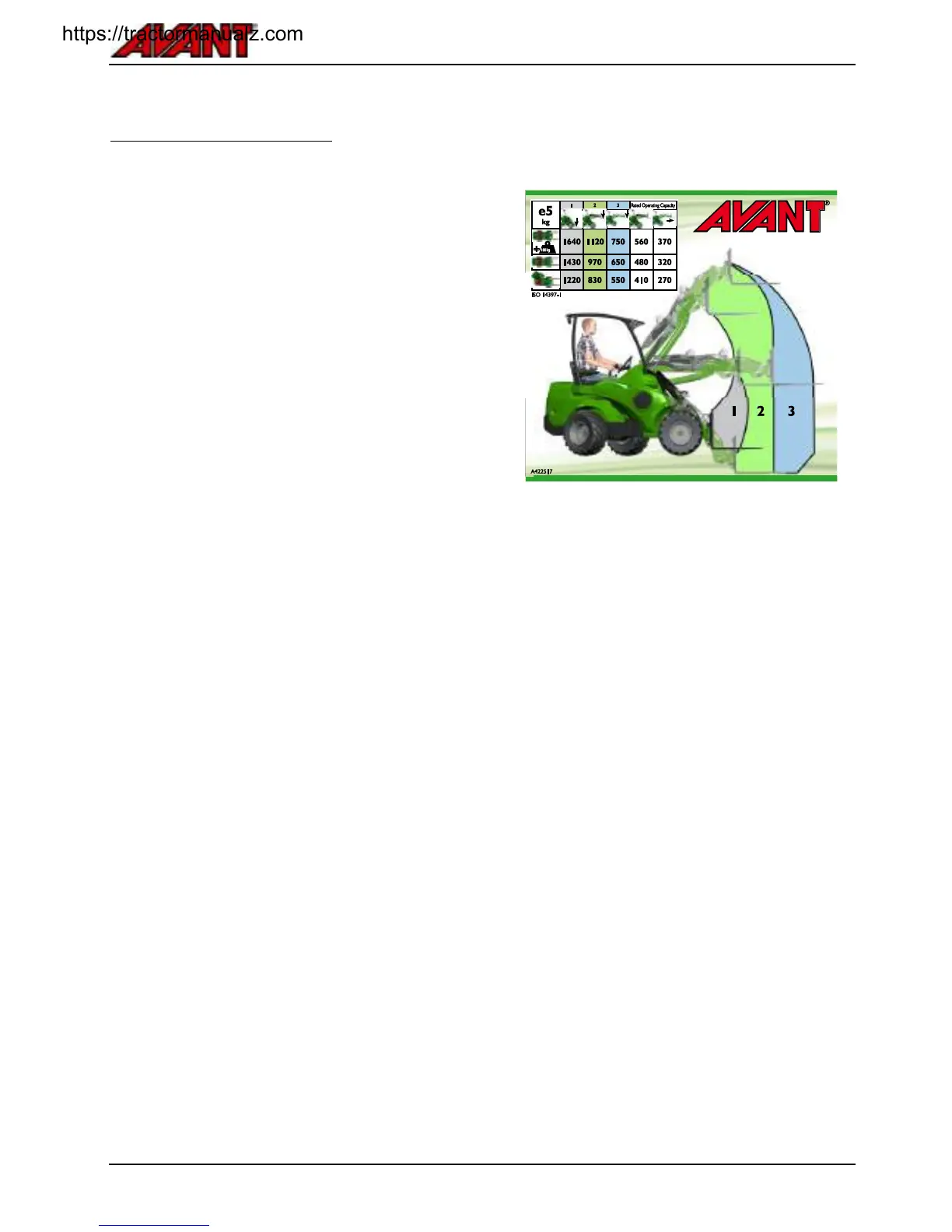

Rated operating capacity label
Different loader configurations, rows in the label:
1. Loader frame in straight position, additional
180 kg counterweights fitted
2. Loader frame in straight position, standard
counterweight fitted
3. Loader frame in fully articulated position,
standard counterweight fitted
Different positions of the loader boom, columns
in the label:
1. Maximum tipping load, stability when lifting
load just off the ground with pallet forks
2. Boom lifted to horizontal position
3. Boom lifted to horizontal position, telescopic
boom fully extended (least stable position)
4. Rated operating capacity in pallet fork
application, telescopic boom retracted
5. Rated operating capacity in pallet fork
application, telescopic boom fully extended
