AVANT e5 - Releasing the Residual Pressure of Hydraulic System

Avant e5
62
Releasing the residual pressure of hydraulic system
Make sure that there isn't pressure in the hydraulic system that could cause danger during service operations.
To release the pressure in hydraulic system:
1. Lower the boom down completely and place attachment firmly on the ground
2. Switch off the loader
3. Move all control levers, including the control lever of the telescopic boom and auxiliary hydraulics, to extreme
end positions a couple of times
Remember that the boom or attachment can move when releasing the pressure. Move the levers until all
movements have stopped.

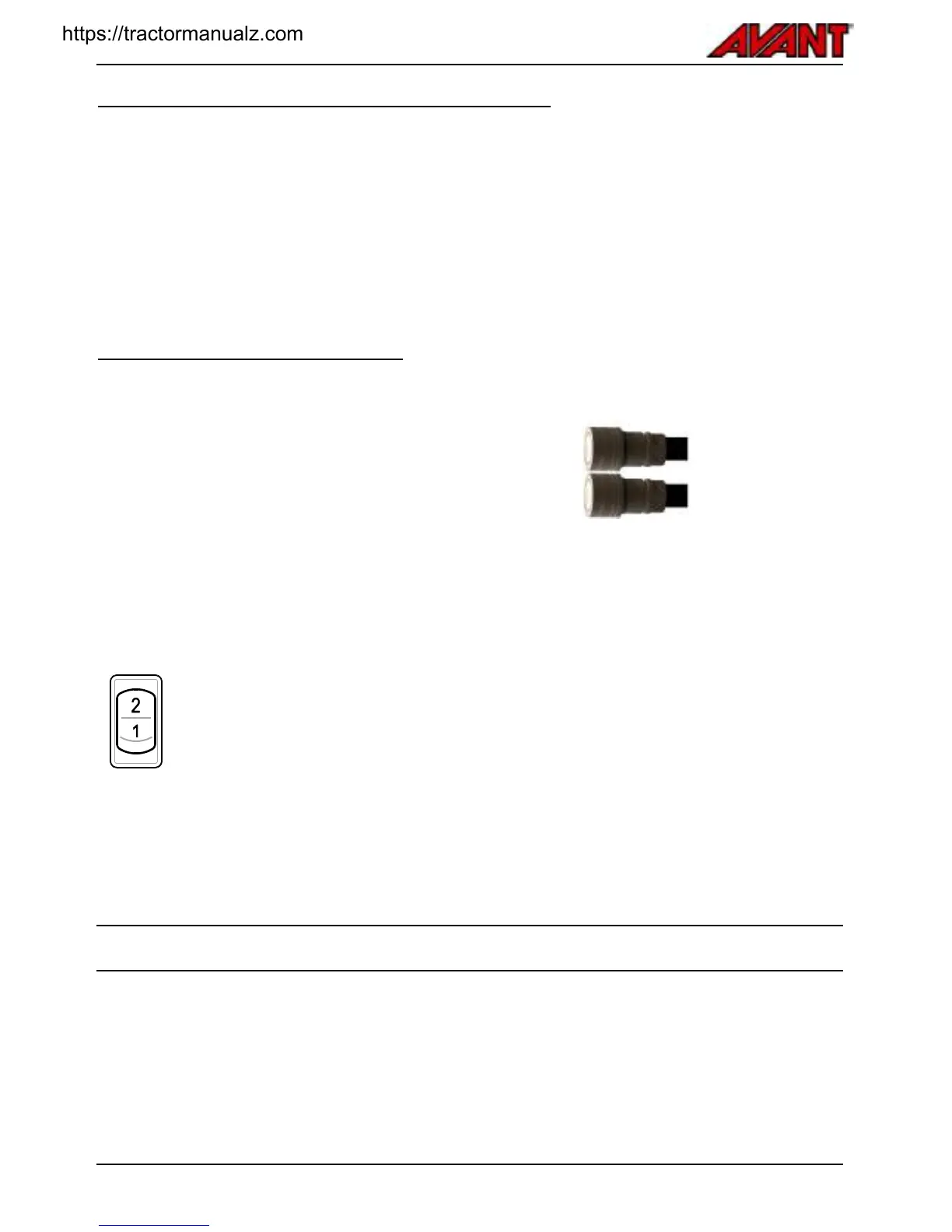

Extra auxiliary hydraulics coupling
The extra hydraulics coupling is a double-acting hydraulic with two fittings. Pair of standard type hydraulic quick
couplings are located at the front of the loader, just below the multiconnector.

Before you connect or disconnect standard couplings,
relieve hydraulic pressure as described on page

To connect and disconnect the standard couplings, move
the collar at the end of the female fitting

Note that the protective caps on the loader and the attachment can be fastened to each other
during operation to reduce the accumulation of dirt.

When disconnecting the standard quick couplings a small amount of oil may drip from the
couplings. Wear protective gloves and have some cloth at hand to keep the equipment clean.
To use the extra hydraulics coupling:
1. Activate the extra auxiliary hydraulics outlet:
Switch the selection switch of the hydraulic outlet to position 2. The switch is located on
the control panel on the right side from the driver's seat
2. Use the normal auxiliary hydraulics control lever to control the extra outlet, or use the
buttons of the 6-function joystick
3. When you want to use the multiconnector outlet again, switch the control switch back to
position 1

The quick couplings can be coupled in a way that reverses the function of the control lever. Test the operation
of the attachment after each time it is coupled to the loader.

Keep the couplings clean and use their protective covers.
You can operate either the hydraulic function connected to the standard multiconnector, or the function that is
connected to the extra outlet. Simultaneous use is not possible.
