AVANT e5 - Electric System & Fuses

Avant e5
85
.
Electric system & fuses
The e5 loader is equipped with 2 electric systems:
1. The 48 V high current system for electric
motors
This system controlled by the inverters, there
are no separate fuses
2. Regular 12 V electric system for all instruments
and controls
 Two fuse boxes at the front of the loader
 Main fuse box after 48 V to 12 V DC-DC
converter at rear left of the loader:
10 A fuse before DC-DC converter
7.5 A fuse for the ignition key circuit
In the event of electric malfunction, always check the
two 12 V system fuse boxes first. If a fuse is blown
repeatedly, search for cause of burning fuse. Electric
cables may be damaged. Contact service.
WARNING
Risk of high-current electric
shock, fire, and explosion of
battery - Never repair or modify
the 48 V electric system. Contact
with high-current parts of the
electric system can cause a
potentially lethal electric shock,
regardless of the relatively low
voltage. Contact authorized service
in case of trouble with the electric
drive system.
Main fuse boxes of 12-volt system
There are two fuse boxes located outside the cab, on
the right side of the loader boom.
Lift the boom first for easier access to the fuses, if
possible.
Remember to use the service support. If the boom
cannot be lifted, the fuses can be checked after
removing the right side cover plate.
Hydraulic oil cooler fan fuse
The red indicator on the dashboard indicates blown
hydraulic oil cooler fan fuse. If the indicator is lit,
check the10 A fuse of the oil cooler fan. Check the
cooler fan can rotate freely and is not blocked.
Contact Avant service if necessary.

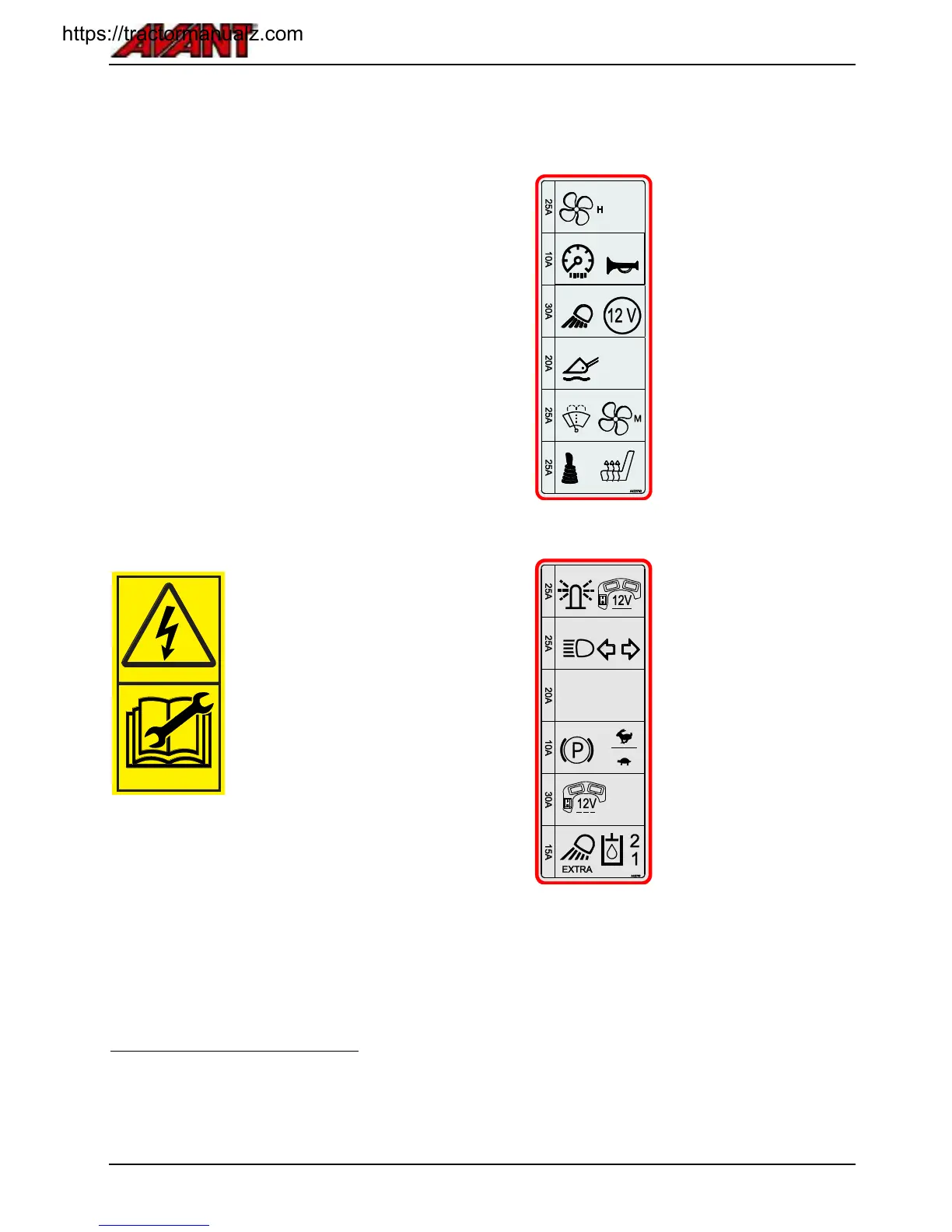

12 V Fuse box 1
1
Hydraulic oil cooler fan fuse
2
Dashboard, instruments
Signal horn
3
Standard work lights
12 V electric outlet
4
Boom floating
5
Windscreen washer and wiper
Cooling fan for electric system
and battery pack
6
Electric joystick switches
Seat heater
12 V Fuse box 2
1
Warning beacon
Continuous 12 v of attachment
control switch pack
2
Road traffic light kit
3
not in use
4
Parking brake (release)
Drive mode / drive speed
range selection switch
5
Switches of attachment control
switch pack
6
Extra work light kit
Selection switch of hydraulic
flow to extra front or rear
couplings
.
..
Ignition switch fuses
The ignition switch controls the main switch of the
loader by a separate electricity circuit. If the loader
does not respond to ignition switch, even if battery is
charged, check the two fuses in the fuse box that is
located in the rear left side of the loader.
