Avantik Cryostat QS11 / QS11UV
Avantik
36 Commerce St.
Springfield NJ 07081 / USA
387 779 - English
13

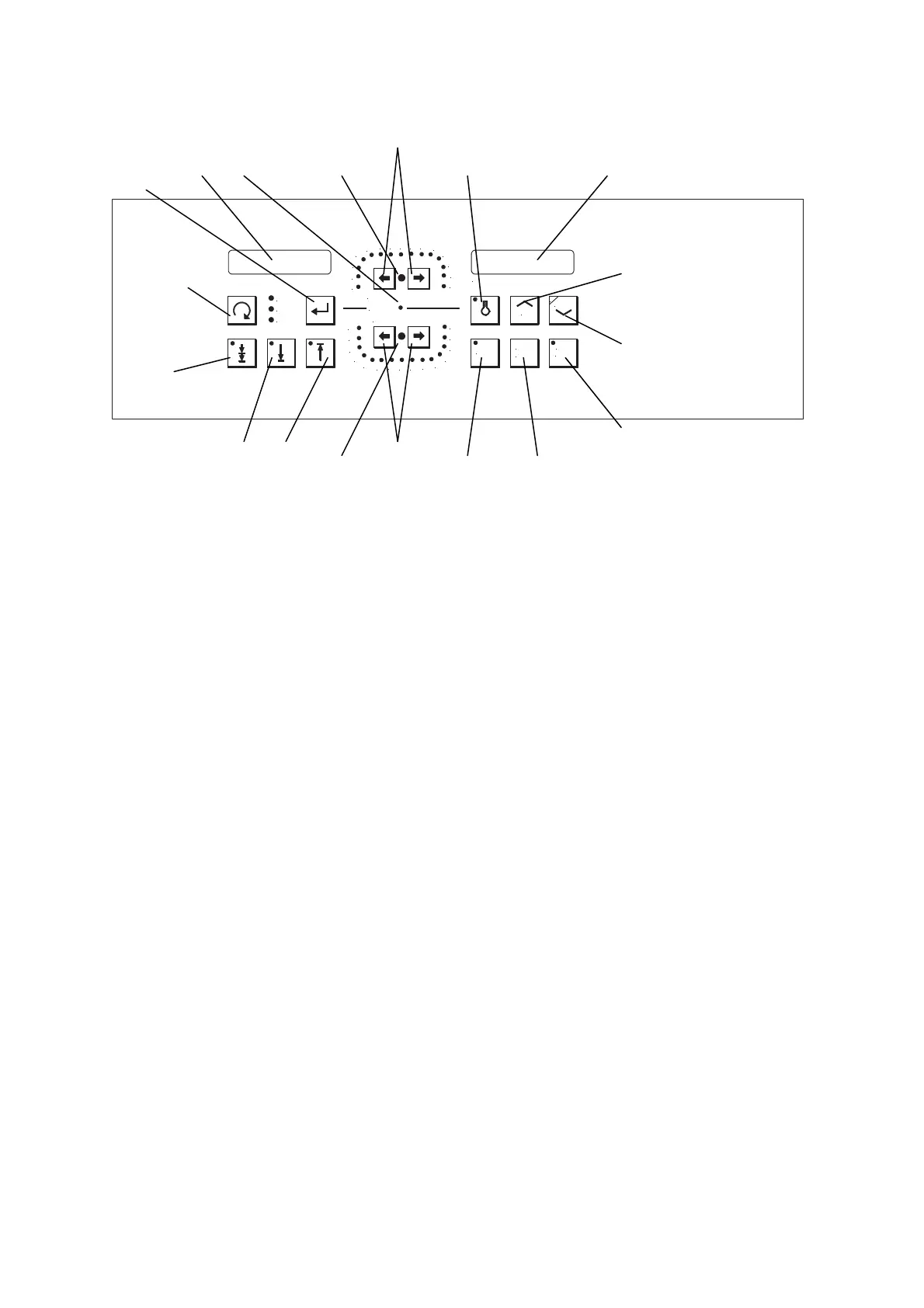

Fig. 2
1 = LED retraction
2 = Section thickness setting
3 = Trimming thickness setting
4 = LED fine feed
5 = LED trim feed
6 = Coarse feed, backwards
7 = Coarse feed, forwards
8 = Trim button
9 = Scroll button
10 = Display, left
11 = Reset button
12 = Memory button
13 = Setting defrost time
14 = Interruption defrosting cycle
15 = Down button and activation of Peltier element
16 = Up button
17 = Chamber illumination
18 = Display, right
MEMO
COUNT
SUM
TRAVEL
1
2
3
4
5
6
7
8
9
10
SECTION THICKNESS µm
RETRACT
TRIM THICKNESS µm
CHAMBER TEMPERATURE ° C
DOWN
DEFR
TIME
INTER
RUPT
UP
12
14
16
18
20
10
20
30
40
50
60
70
80 100
150
200
300
400
500
250
MICROM
HM 525
P
1
2
3
4
5
67
8
9
10
11
12 13
14
15
16
17 18
