VSI-Pro VIDEO SERIAL INTERFACE

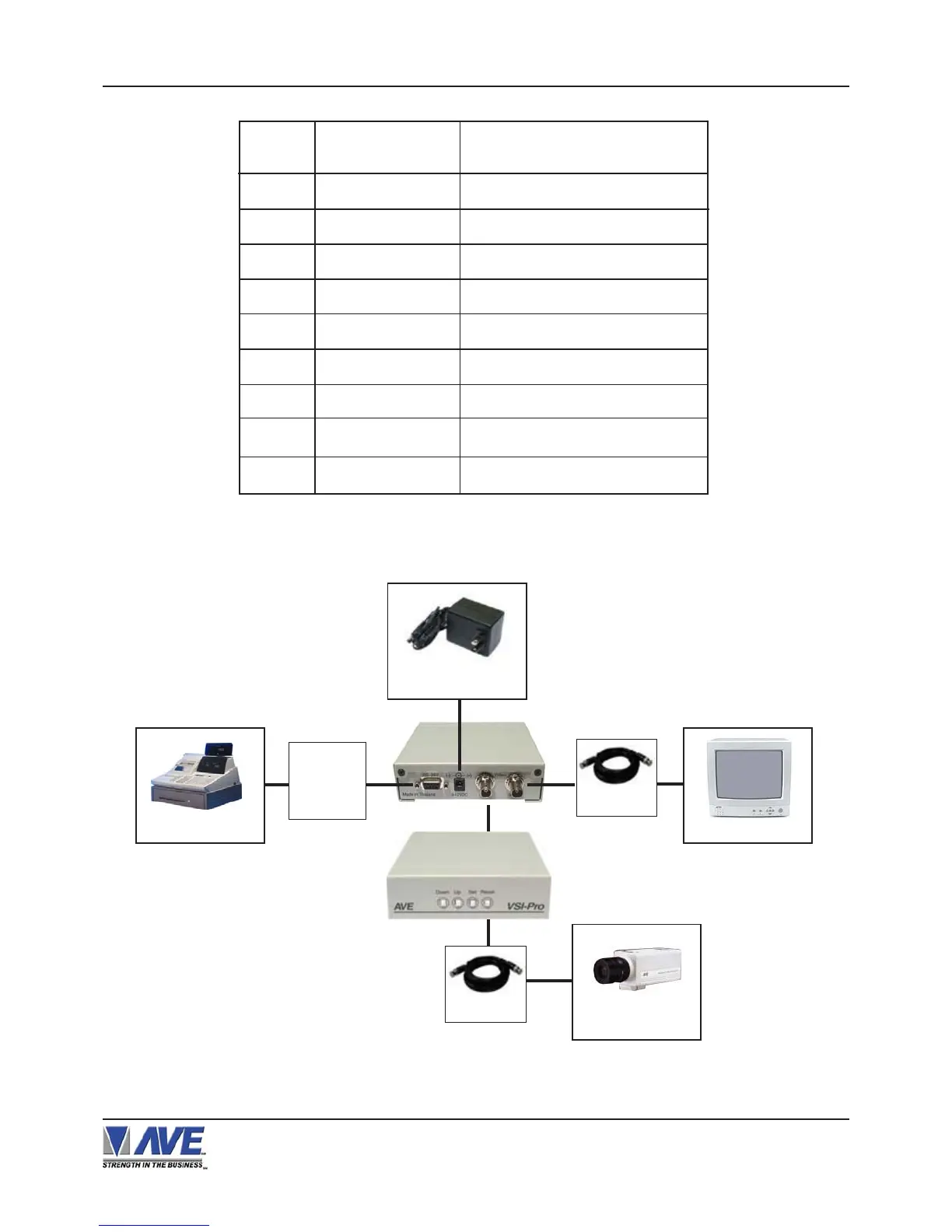

Figure 4: VSI-Pro Connections

Table 3 : Pin-Out of the DB-9 Female Connector on the VSI-Pro RS-422 / RS-485

1 Alarm Out 1 Open Collector Transisitor

2 No Function No Function

3 TXD RS-232 From VSI-Pro

4 RS-485 A Data To VSI-Pro

5 Ground

6 RS-485 B Data To VSI-Pro

7 RTS ( Alarm In ) To VSI-Pro

8 CTS From VSI-Pro

9 Alarm Out 2 Open Collector Transistor

PIN #

FUNCTION

DIRECTION

VSI-PRO

CASH REGISTER

MONITOR

RS-232

Direct

or ECR

Interface

RG-59U

WALL TRANSFORMER

9-12VDC 300mA

CAMERA

CONNECTIONS
