AVE VSI-PRO - APPENDIX J HARD ALARM OUTPUT

69
VSI-Pro VIDEO SERIAL INTERFACE
12 VDC
Internal
To
VSI-Pro
Alarm 1 or 2
Output
LED
1K OHM
5 VDC
Internal
To
VSI-Pro
Alarm 1 or 2
Output
LED
470 OHM
5 VDC
Internal
To
VSI-Pro
Alarm 1 or 2
Output
R
ELAY SPDT 1N4001
5 VDC
Internal
To
VSI-Pro
Alarm 1 or 2
Output
BUZZER
The VSI-Pro provides two open collector transistor alarm outputs to trigger alarming devices. These are Alarm 1 & 2
in the Alarm menu. Upon an Exception, a VSI-Pro can be programmed to trigger a VCR to go to its fastest record
time, have a Quad go full screen, home a switcher, trigger a preprogrammed PTZ, or provide visual or audible
alarms. The VSI-Pro provides two alarm outputs that are rated at 12VDC @ 20mA maximum.

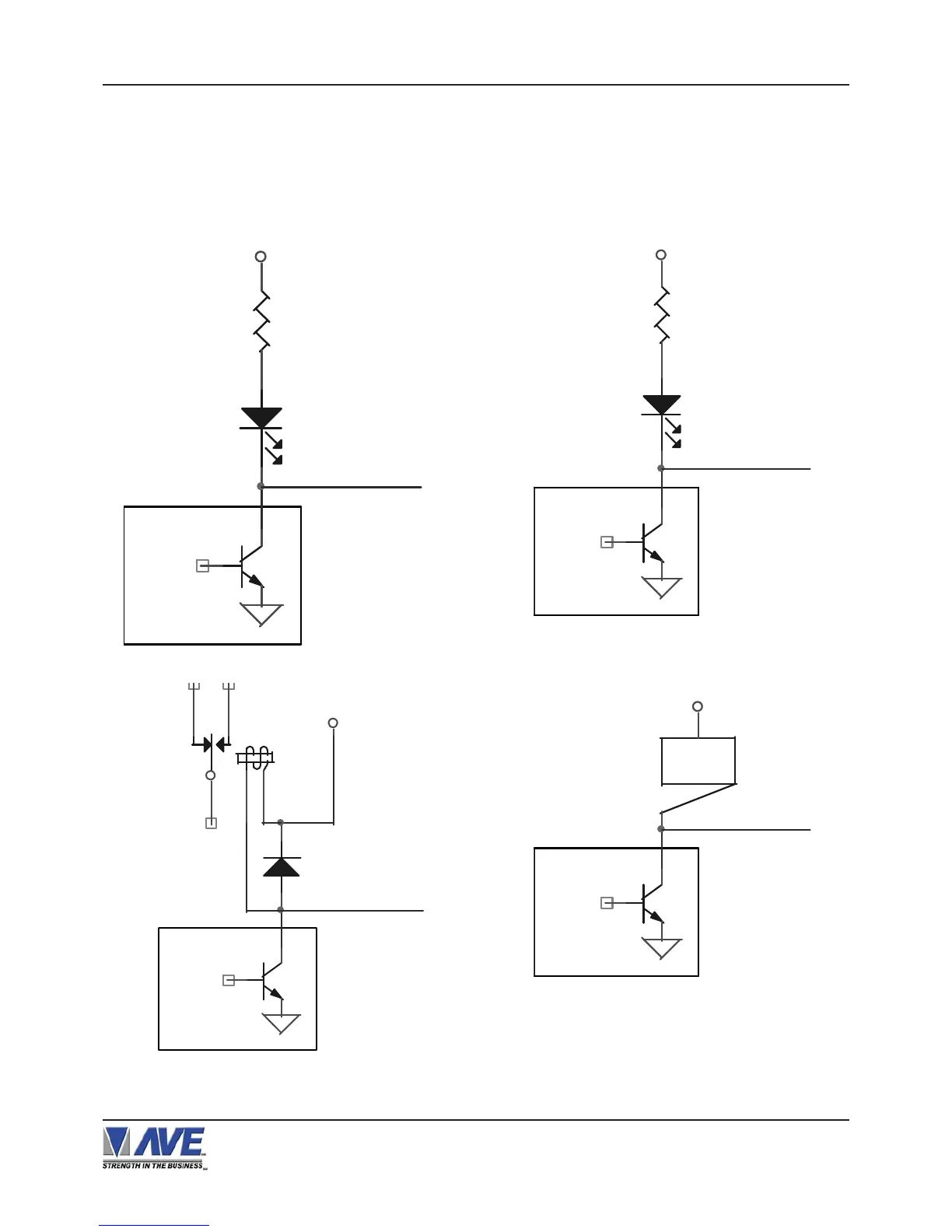

The following are some basic circuit designs to take advantage of the alarm output option of the VSI-Pro.
Figure 1H: Hard Alarm Output
HARD ALARM OUTPUT APPENDIX J
