Chapter 3: Connecting Pro Tools | MTRX Studio to an HDX or HD Native System 13
MTRX Studio with a MADI I/O in an HDX 2 System
The following shows MTRX Studio and MADI I/O with Loop Sync connections and DigiLink Mini
connections with two HDX cards.

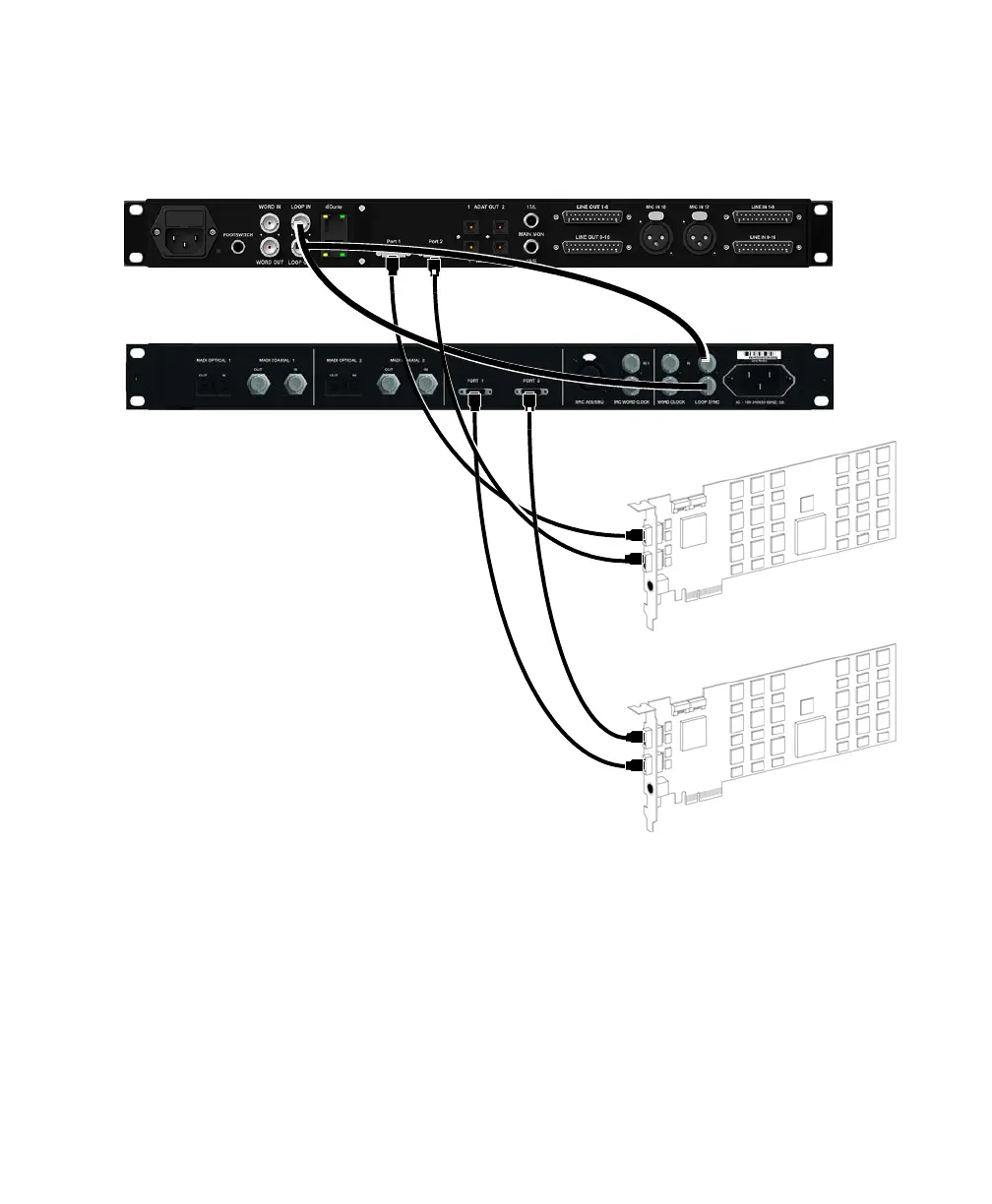

Figure 2. HDX 2 system: MTRX Studio connected to both DigiLink Mini ports on HDX card 1, MADI I/O connected to both
DigiLink Mini port s on HDX card 2, Loop Sync connections between MTRX Studio and MADI I/O
