Avigilon H5SL Series User Manual

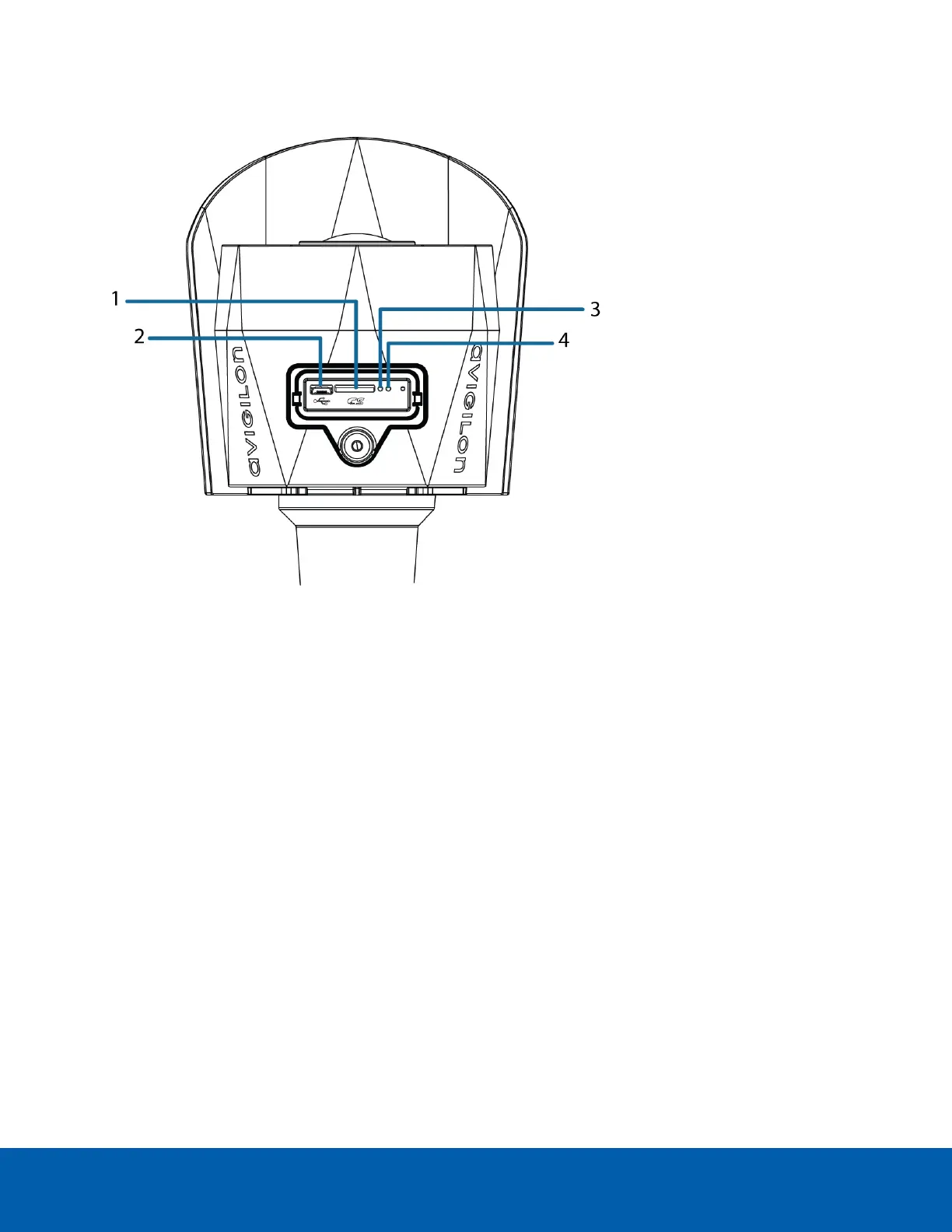

Configuration Panel View
1.
microSD card slot
Accepts a microSD card for onboard storage. For more information, see (Optional) Configuring
microSD Card Storage on page14.
2.
Micro USB port
Accepts a micro USB to USB adapter. Only required when using the Avigilon USB Wi-Fi Adapter.
3.
Link LED indicator
Amber LED indicates if there is an active connection in the Ethernet port.
4.
Connection status LED indicator
Green LED provides information about device operation. For more information, see Connection
Status LED Indicator on page17.
Configuration Panel View 4

Avigilon H5SL Series Specifications

General

Ingress Protection	IP66
Impact Rating	IK10
Day/Night	Yes, with IR cut filter
Wide Dynamic Range (WDR)	Yes, up to 120 dB
Video Compression	H.264, H.265, MJPEG
Ethernet	10/100BASE-T
Resolution	5 MP
IR Illumination	Yes
Operating Temperature	-40°C to 50°C (-40°F to 122°F)
Power	PoE, 12V DC
Sensor Type	CMOS
Lens Type	Fixed or varifocal
Iris	P-Iris
IR Distance	Up to 30m (98ft)
Frame Rate	Up to 30 fps
Analytics	Yes
Aperture	F1.6
Minimum Illumination	0 lux (IR on)
