Avigilon H5SL Series User Manual

Installation
Camera Package Contents
l Avigilon H5SL Bullet Camera
l Mounting template sticker
l 4 screws and anchors for solid walls
Installation Steps
Complete the following sections to install the device.
Mounting the Bullet Camera
If the cables for the camera will not be provided from inside the mounting surface, install the junction box
first (H4-BO-JBOX). After you install the junction box, you can skip directly to step 3 of this procedure.

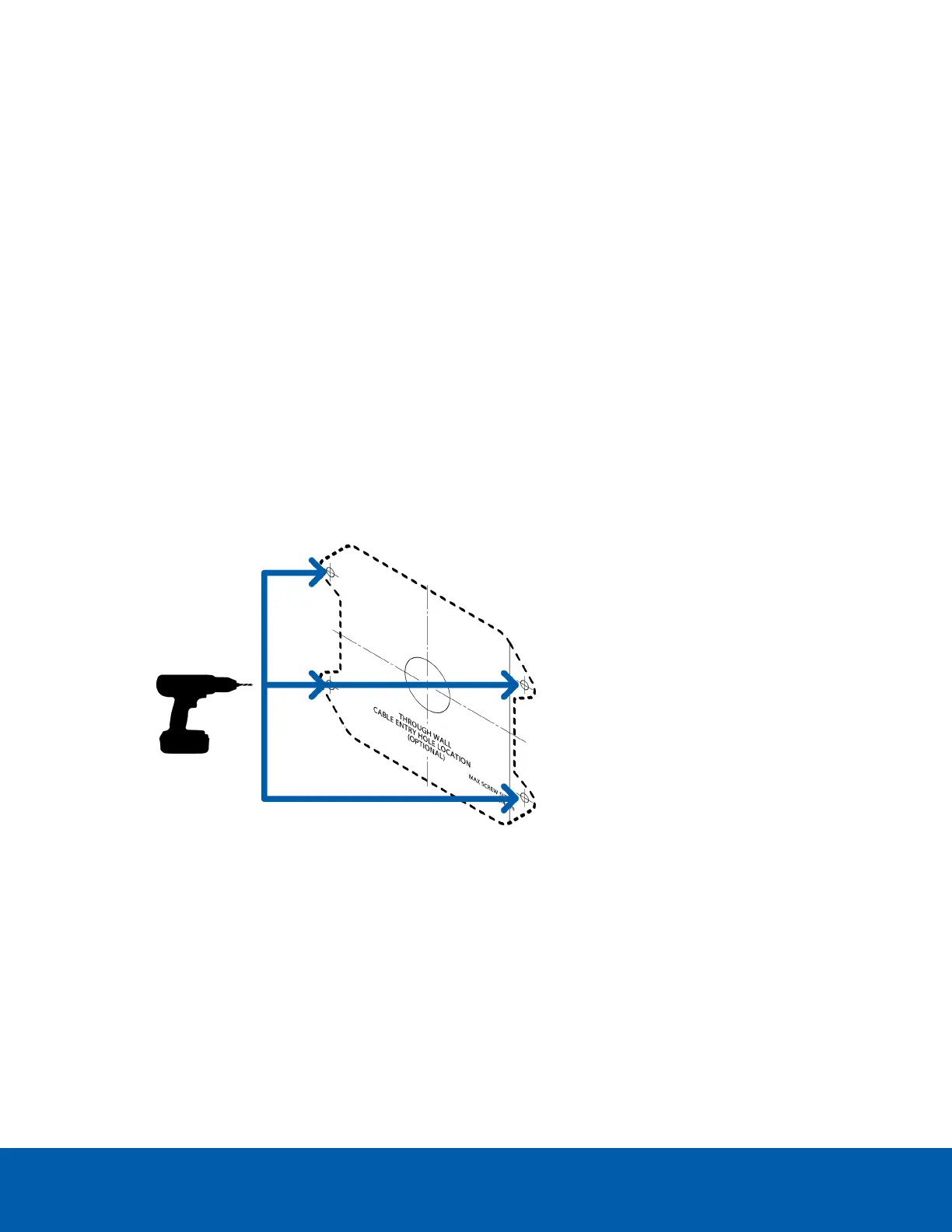

1. Use the mounting template to drill four mounting holes into the mounting surface.
2. Drill the cable entry hole into the mounting surface then pull the required Ethernet cable through the
cable entry hole.
Installation 6

Avigilon H5SL Series Specifications

General

Ingress Protection	IP66
Impact Rating	IK10
Day/Night	Yes, with IR cut filter
Wide Dynamic Range (WDR)	Yes, up to 120 dB
Video Compression	H.264, H.265, MJPEG
Ethernet	10/100BASE-T
Resolution	5 MP
IR Illumination	Yes
Operating Temperature	-40°C to 50°C (-40°F to 122°F)
Power	PoE, 12V DC
Sensor Type	CMOS
Lens Type	Fixed or varifocal
Iris	P-Iris
IR Distance	Up to 30m (98ft)
Frame Rate	Up to 30 fps
Analytics	Yes
Aperture	F1.6
Minimum Illumination	0 lux (IR on)
