Avigilon H5SL Series User Manual

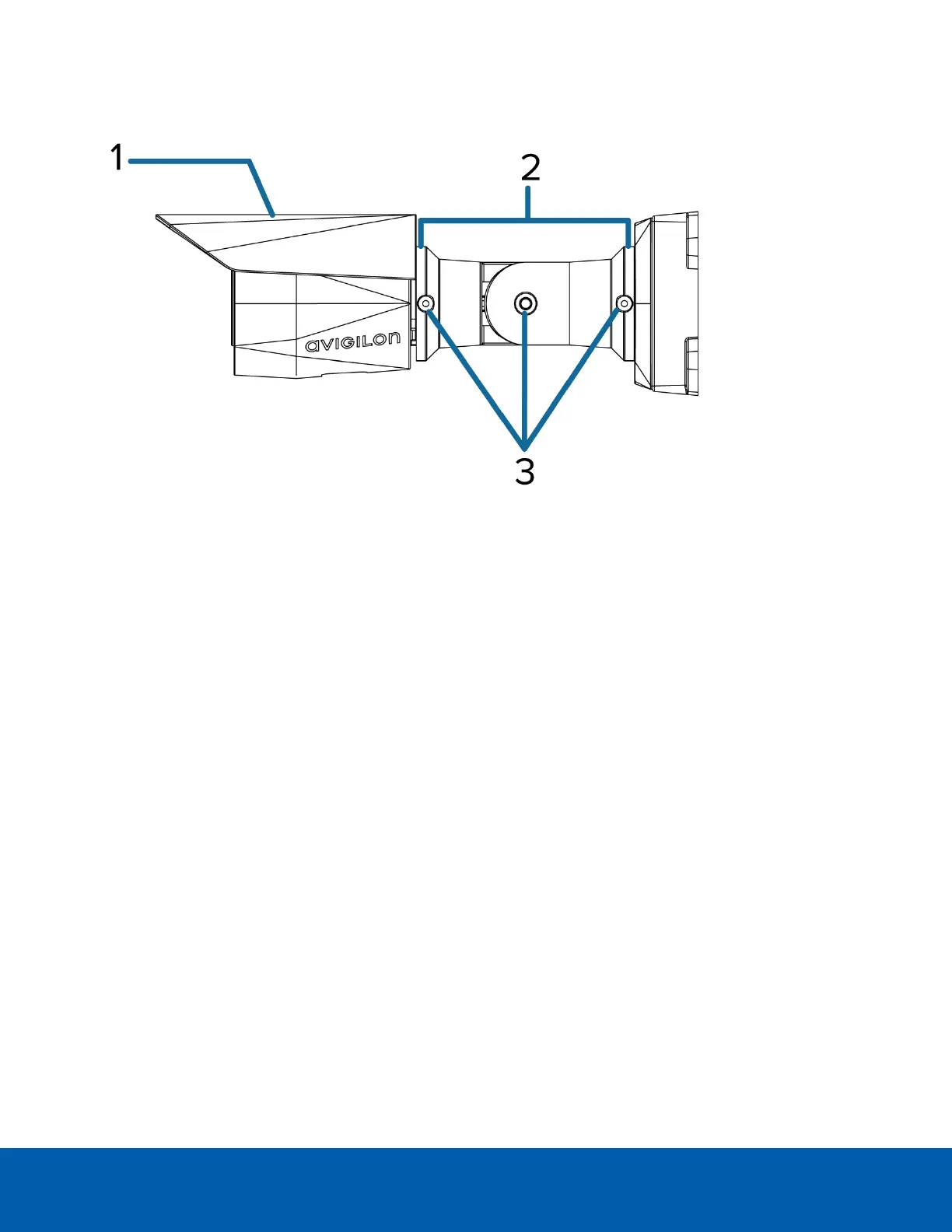

Side View
1.
Sun shroud
An adjustable cover to help protect the lens against glare from the sun.
2.
Mount arm
Adjustable mount arm for positioning the camera.
3.
Adjustment screws
Provides a locking mechanism for the mount arm.
Side View 5

Avigilon H5SL Series Specifications

General

Ingress Protection	IP66
Impact Rating	IK10
Day/Night	Yes, with IR cut filter
Wide Dynamic Range (WDR)	Yes, up to 120 dB
Video Compression	H.264, H.265, MJPEG
Ethernet	10/100BASE-T
Resolution	5 MP
IR Illumination	Yes
Operating Temperature	-40°C to 50°C (-40°F to 122°F)
Power	PoE, 12V DC
Sensor Type	CMOS
Lens Type	Fixed or varifocal
Iris	P-Iris
IR Distance	Up to 30m (98ft)
Frame Rate	Up to 30 fps
Analytics	Yes
Aperture	F1.6
Minimum Illumination	0 lux (IR on)
