Avigilon H5SL Series - Overview; Mounting Bracket View

Overview

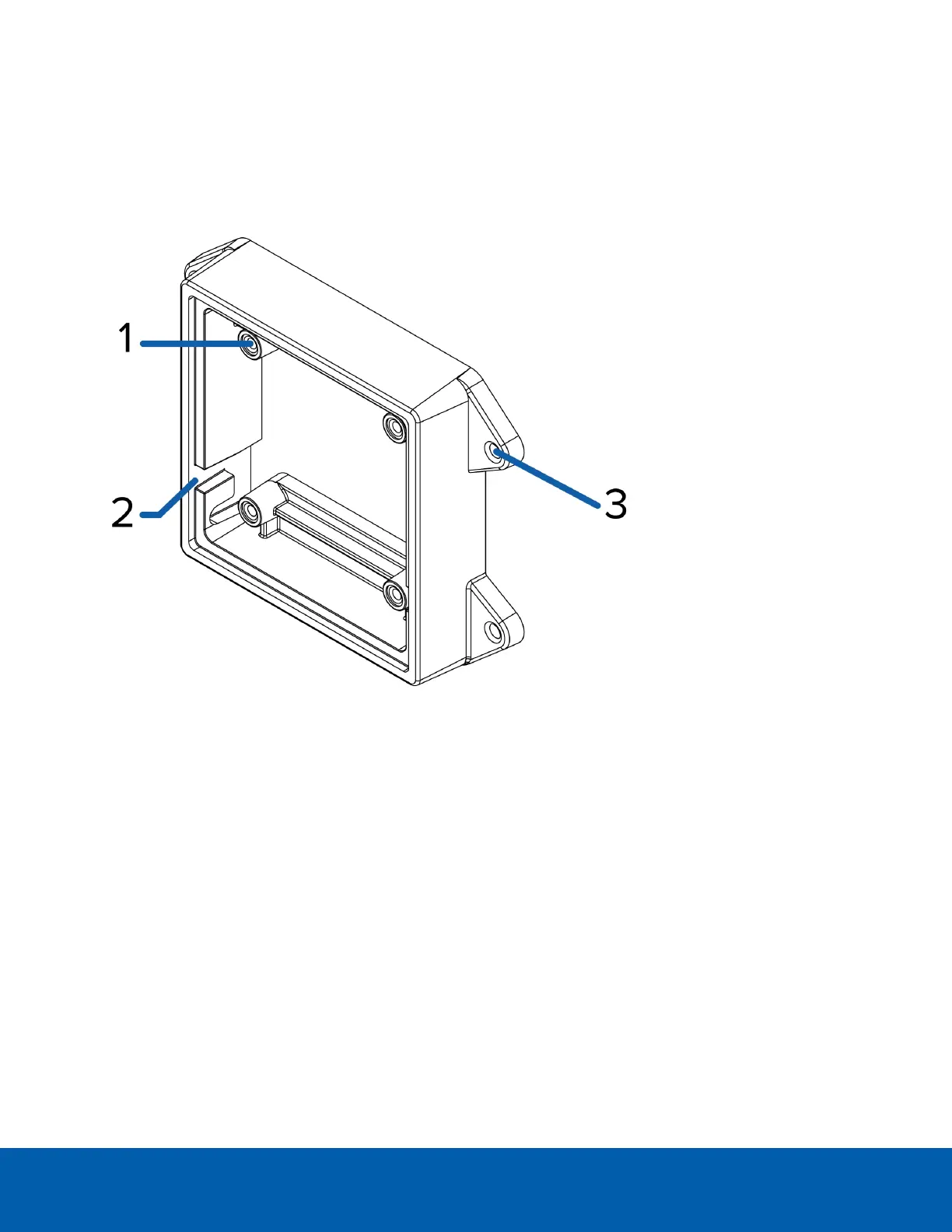

Mounting Bracket View
1.
Camera mounts
Points for installing the camera to the mounting bracket.
2.
Mounting hook slots
Points to hold the camera to the mounting bracket while connecting the required cables.
3.
Mounting holes
Holes for securing the mounting bracket to the mounting surface.
Overview 1
