Cables
FRITZ!Box 7490 181
DSL/telephone Cable
You can extend one or both ends of the network cable. You will
need the following components to extend the cable:
Standard Cat-5 network cable, type STP (shielded twisted pair)
When components of a category smaller than Cat 5 are
used, reduced transmission rates may result.
You can use both straight cables and crosslink cables.
1 standard RJ45 CAT-5 double coupling with a 1:1 pinout
All components are available from specialized vendors.
Replacement
The network cable is a standard cable.
As a replacement, use a standard Cat-5 network cable, type STP
(shielded twisted pair)
Replacement cable is available from specialized vendors.

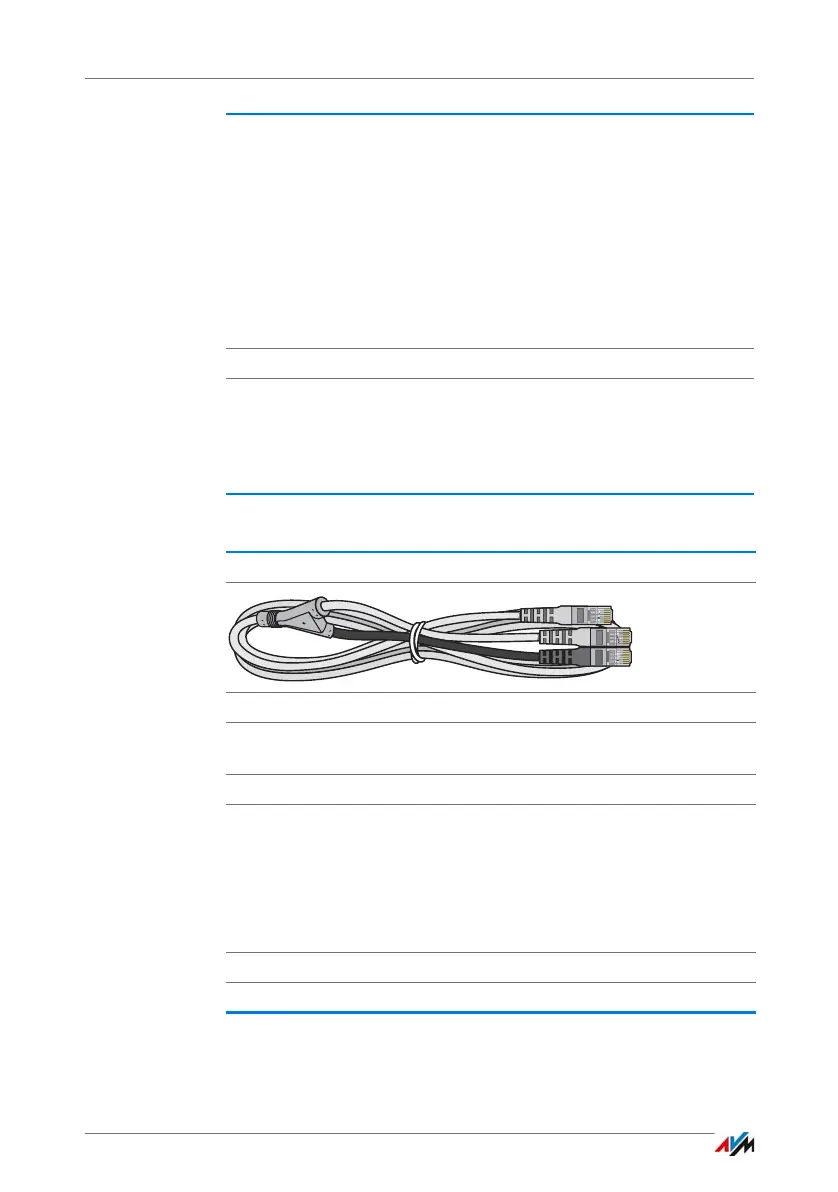

Illustration
Use
The DSL/telephone cable connects the FRITZ!Box to the DSL splitter
and the analog telephone line or the ISDN line.
Extension
You can extend one or multiple ends of the DSL/telephone cable.
You will need the following components to extend the cable:
Standard Cat-5 network cable, type STP (shielded twisted pair)
Standard RJ45 CAT-5 double coupling
Both components are available from specialized vendors.
