FRITZ!Box 7490 26
Connecting a Computer with a Network Cable
5 Connecting a Computer with a Network Cable
You can connect computers and other network devices with the
FRITZ!Box using a network cable.
5.1 Connecting to the Computer
One computer or other network device can be connected to
each LAN port of the FRITZ!Box.

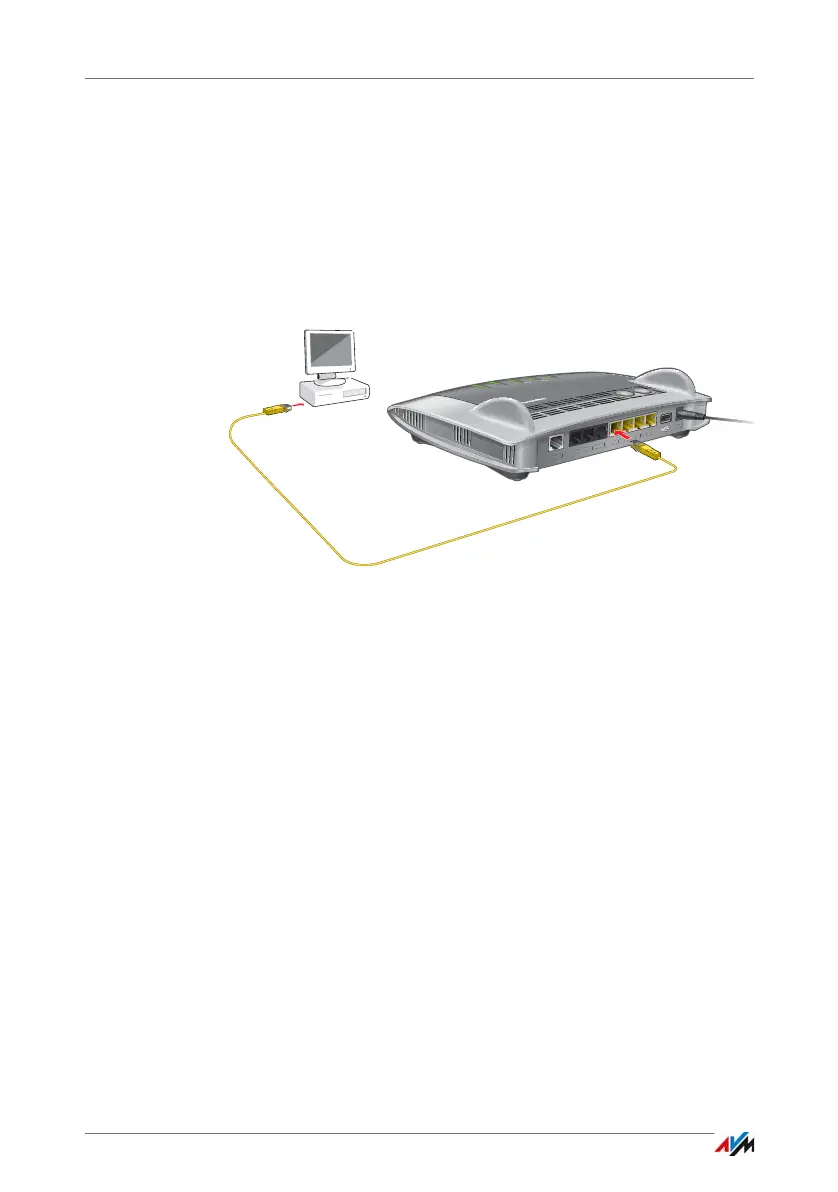

Connecting a computer using a network cable
1. Insert the network cable included in the package into
the LAN port of the computer.
You can also use any other network cable. For more in-
formation, see page 180.
2. Insert the free end of the cable into a LAN socket on the
FRITZ!Box.
Now the FRITZ!Box and the computer are connected with each
other.
DSL/
T
TE
L
DSL/TEL
FON 1
FON 1
FON 2
FON 2
LAN
1
LAN 1
LA
N
2
LAN 2
LAN
3
LAN 3
LA
N
4
LAN 4
Power
Power
FON S
0
FON S
0
W
LAN
WPS
DECT
Info
WLAN
Festnetz
Internet
Power/DSLL

AVM Fritz!Box 7490 Specifications

General

Ethernet LAN	Yes
Cabling technology	10/100/1000Base-T(X)
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet LAN interface type	Gigabit Ethernet
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Wi-Fi standards	802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
WLAN data transfer rate (max)	1300 Mbit/s
USB version	3.2 Gen 1 (3.1 Gen 1)
Rack mounting	No
Frequency range	2.4 - 5 GHz
Bandwidth (first)	2.4 GHz
Bandwidth (second)	5 GHz
USB ports quantity	2
WLAN data transfer rates supported	450, 1300 Mbit/s
Ethernet LAN (RJ-45) ports	4
DHCP client	-
Security algorithms	WPA2, WPS
Power consumption (typical)	9.3 W
Product color	Red, Silver
Cables included	DC, LAN (RJ-45), Phone (RJ-11)

Weight and Dimensions

Depth	175 mm
Width	245 mm
Height	55 mm
Weight	- g
