Connecting to the Internet
FRITZ!Box 7490 21
Connecting to a DSL or VDSL Line with a Landline
Connecting to the DSL splitter

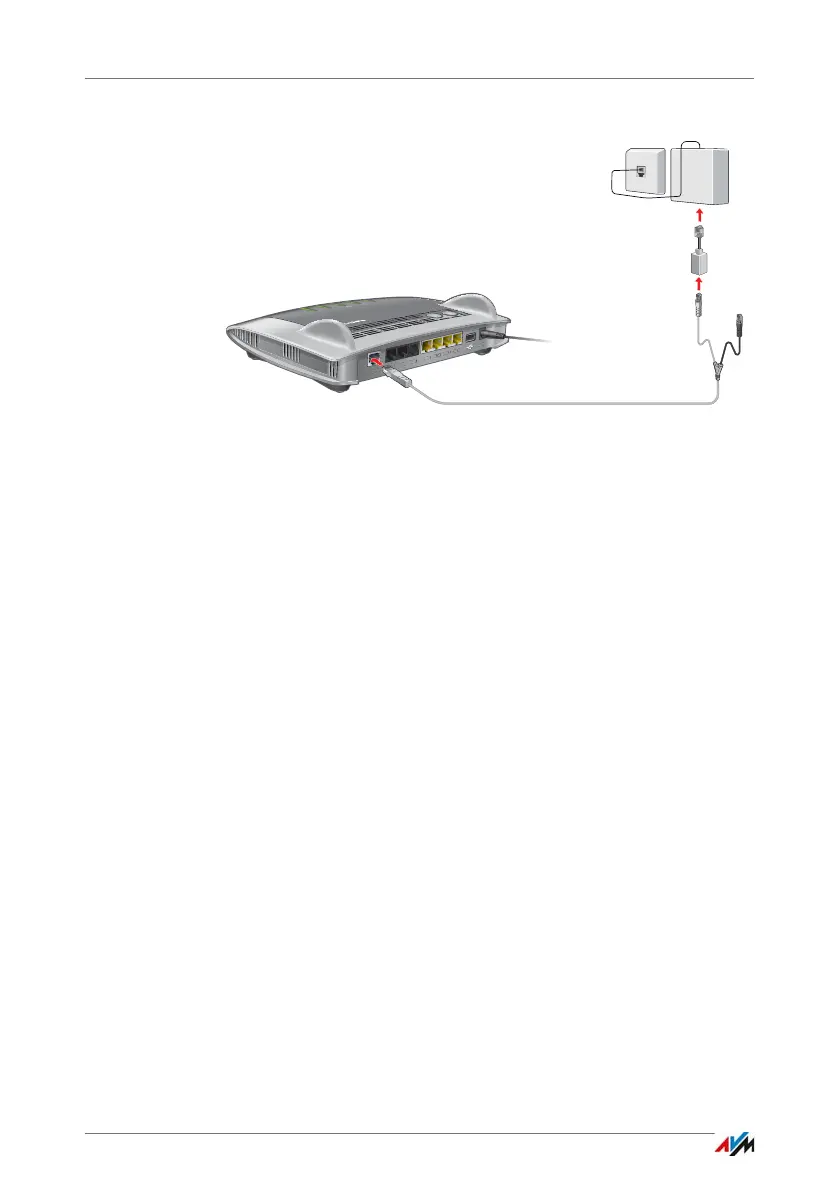

If you have a DSL line and a telephone line, then connect the
FRITZ!Box as follows:
1. Connect the long end of the DSL/telephone cable to the
socket on the FRITZ!Box labeled “DSL/TEL”.
2. Then connect the short, gray end of the cable to the ap-
propriate socket on the DSL splitter.
If the plug on the gray end of the cable does not fit into
the socket of your DSL splitter, insert it into the DSL
adapter gray included in the package. Then insert the
DSL adapter into the DSL splitter.
The “Power / DSL” LED begins flashing and then lights con-
stantly. The FRITZ!Box is now ready for Internet connections
over DSL.
If the “Power / DSL” continues flashing, read DSL Connection
Not Established on page 160.
