Axel Oxygen 5 User Manual

Name: Axel Oxygen 5
Brand: Axel
Rating: 4 (1 reviews)

64 pages

To Next Page

To Previous Page

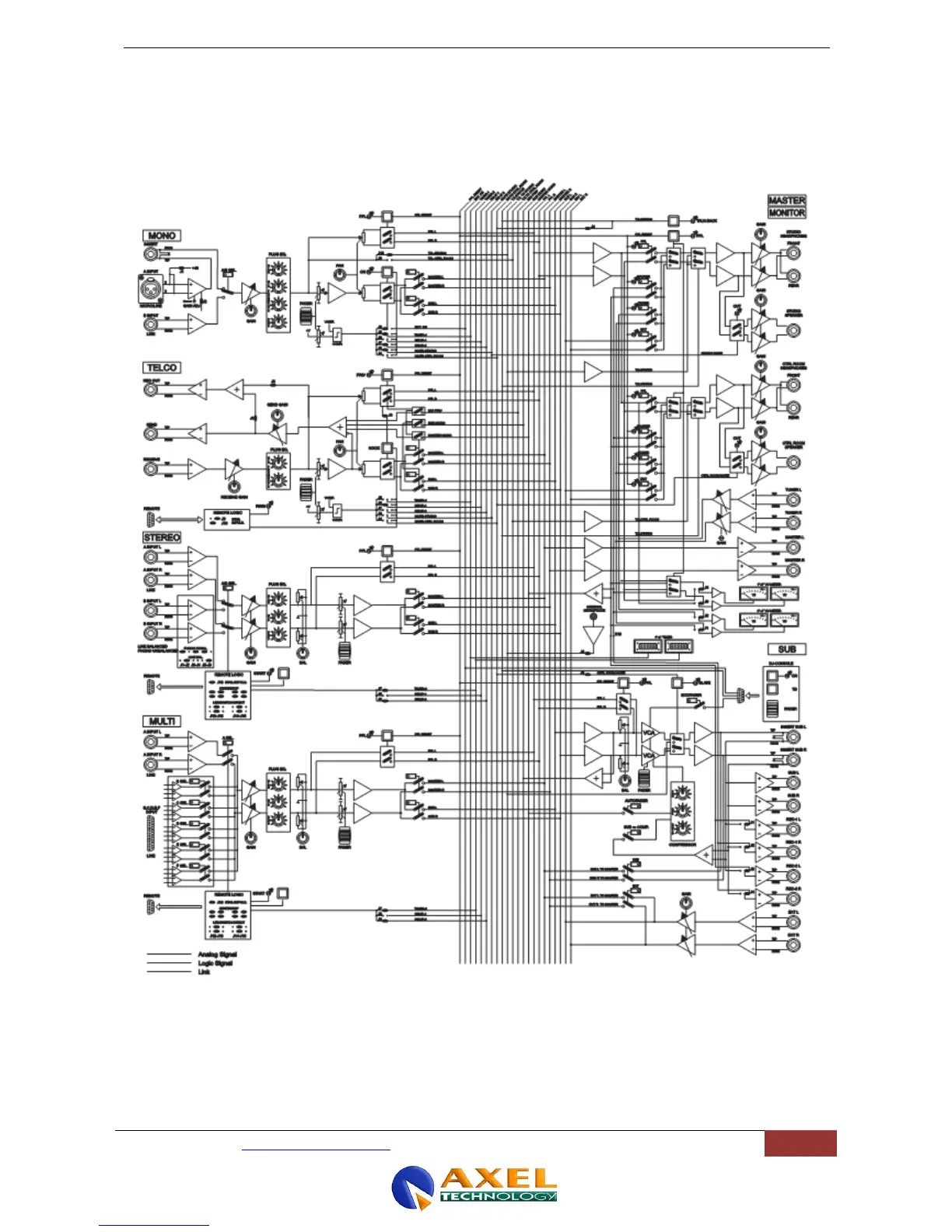

BLOCK DIAGRAM

ENG

Axel Technology srl www.axeltechnology.com BLOCK DIAGRAM

9 BLOCK DIAGRAM

Default Chapter2
- Table of Contents2
Oxygen 5 Series Introduction4
- Oxygen 5 - Available Frame Size4
- Oxygen 5 - Available Modules5
- This Manual6
- Available Frame Size Pictures7
Safety Warnings / Istruzioni Per la Sicurezza8
- Foreword8
Safety Warnings9
Consignes de Sécurité Importantes10
Istruzioni Importanti Per la Sicurezza11
Wichtige Sicherheitshinweise12
Instrucciones Importantes de Seguridad14
Unpacking and Inspection16
First Installation Recommendations17
- Power Supply Cable17
- Ac Mains Voltage Setting (230 V / 115 V)17
- Fuse Replacement18
- Protection against Lightning19
- Ventilation19
- Earthing20
- Position20
Block Diagram21
Installing the Mixer Unit22
Factory Preset Console Configuration23
- Module Removing and Installation24
- Alignement of Inputs25
- Master-Sub Routing Switches25
Mono Module26
- Description26
- Module Options and Jumper Settings27
- The Relay (Remote)Interface in Mono Module28
- The Phantom Power30
- The 'Insert' Socket30
Stereo Module31
- Introduction31
- Stereo Module Configuration32
- The Remote Interface34
Multi Module38
- Introduction38
- Audio Connector Pin-Out39
Telco Module40
- Introduction40
- Remote Interface Connection41
  - Remote Interface Pin-Out41
  - Description42
- Module Options and Jumper Settings43
- Hook Switch and Ring Led44
- Master-Sub Routing Switches44
- Master Module45
- Introduction45
Sub Module47
- Introduction47
- Module Options and Jumper Settings48
Power Supply50
- Front View50
- Rear View50
- Description50
- Pws Relays51
- Mixer Connection51
- Main Ac Voltage Settings52
- Pws Troubleshooting52
Meterbridge54
- Description54
- Meterbridge Setting54
- Timer55
Dj Console55
Technical Appendix57
- Appendix A - Audio Connections57
- Appendix B - Balanced Audio Connection Xlr I/O57
- Appendix C - Balanced Audio Connection Xlr F - Jack57
- Appendix D - Balanced Audio Connection Xlr M - Jack58
- Appendix E - Unbalanced Audio Connection Pin (Rca) Audio58
- Appendix F - Balanced Audio Connection Jack - Jack58
- Appendix F - Module Connection59
Technical Specifications60
Warranty61
WEEE Directive - Informativa RAEE62
Warranty63
Declaration of Rohs Conformity63
Axel Technology in Touch64
