11 FACTORY PRESET CONSOLE CONFIGURATION

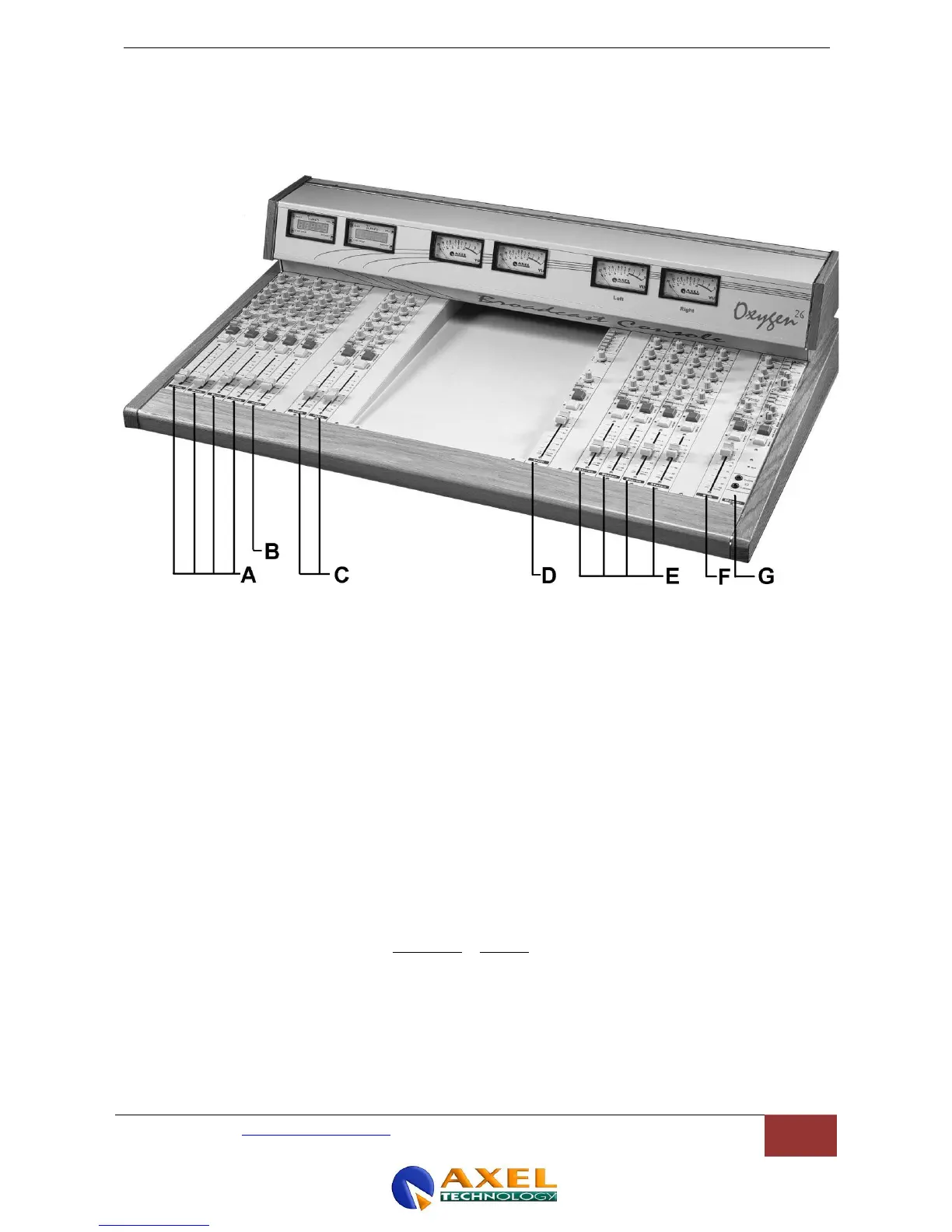

Oxygen 5 comes from the factory with the following MAIN settings:
MONO MODULES (A and B) ref to par.
12.2
The Mono module closest to the centre of the console (B) is set for
Control Room microphones and Jumpers J2, J 4, J6 are closed (i.e.
TalkBack path is routed to the Studio, Relay 1 in the PWS is addressed
and Control Room Speakers are muted).
The Mono module(s) at Yr left hand (A) is (are) set for Studio
microphones and Jumpers J3, J 5, J7 are closed (i.e TalkBack path is
routed to the Control Room, Relay 2 in the PWS is addressed and Studio
Speakers are muted)
Phantom power is set as disabled
TELCO MODULES ( C ) ref to par. 15.3
No settings
MULTI MODULE (D) ref.to par.
If not otherwise notified, all the inputs are set for LINE-type sources
STEREO MODULES (E) ref.to par.
If not otherwise notified, all the inputs are set for LINE-type sources
SUB MODULE
MASTER MODULE (E) ref to par. 16.2
Studio Speaker output is set for LINE level, the TalkBack internal
microphone is disabled, automatic Control Room speaker muting is set as
disabled.
