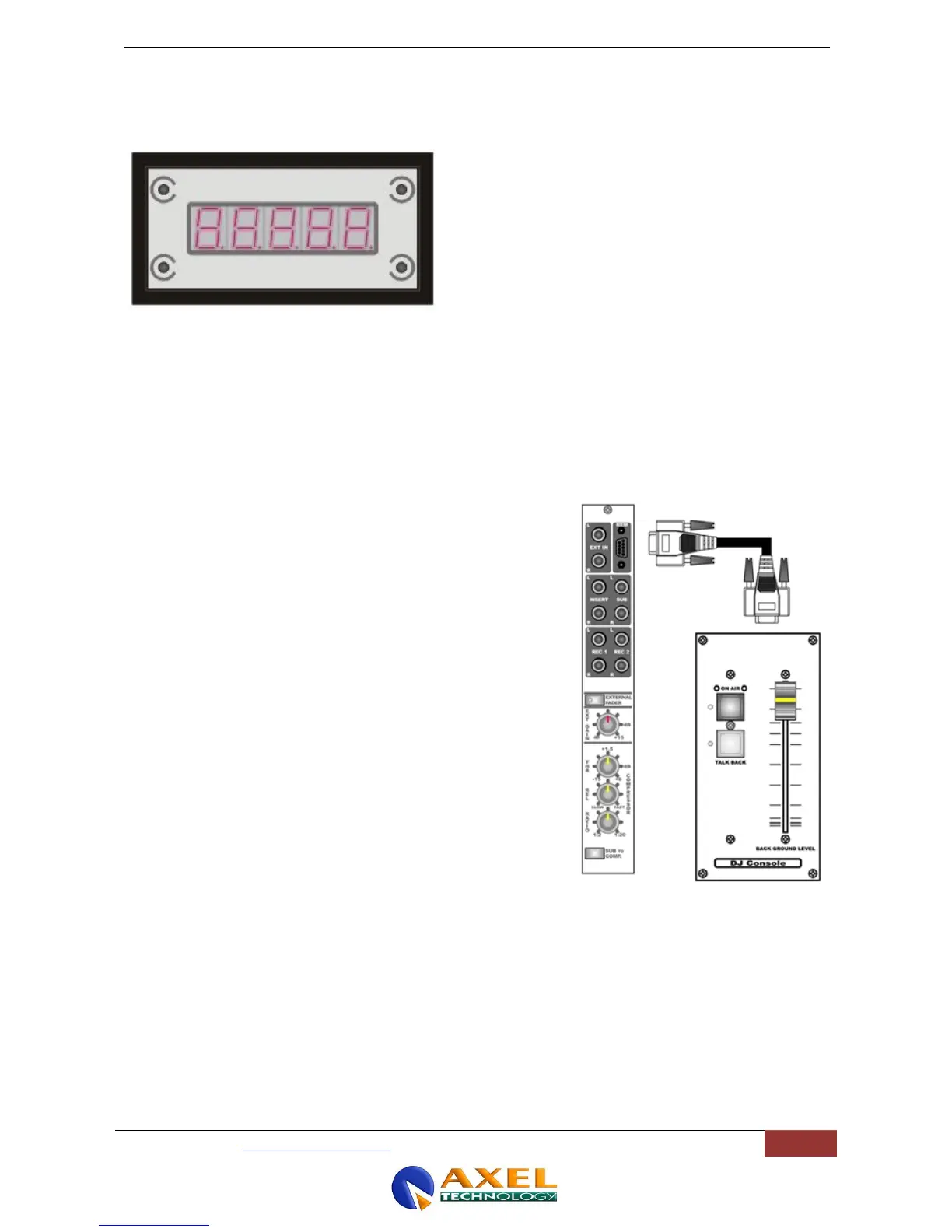

18.3 TIMER
By request, up to two Timer modules are available to be
installed on the meterbridge. The Timer feature the time count
up showing minutes, seconds and tenth of seconds if time
duration does not exceed 1 hour and hours, minutes and
seconds if time duration exceeds 1 hour. In particular, you can
associate, by jumper, timer start toopening of slider on Mono
modules and to the Start/Stop function of the Stereo modules.
19 DJ CONSOLE
The DJ CONSOLE is available as an option. It is to be installed in the studio and permits to the talent to remotely switch
On/Off his microphone, to enable TalkBack to Control Room and to fade out background music (manual ‘talk-over’
function). In particular, the Dj Console’s ONAIR key will turn On/Off all MONO modules with J8 jumper set to ‘EXT’
position (see MONO module Chapter).
Furthermore, Dj Console’s SLIDER will fade down / up all audio source routed to SUB output (having pressed EXT
FADER and SUBtoMASTER buttons on the SUB module).
To connect and enable DJ Console on the Oxygen 5 mixing console,
please follow these steps:
1) connect the Dj Console to Sub module - Remote Interface via a 9 pin
to 9 pin cable (see picture)
2) Set the Jumper J8 to the ‘EXT’ position on the Mono modules to be
controlled by the Dj Console (the Talent’s module at least!)
3) Press the ‘Master’ key on the Mono modules to be controlled by the
Dj Console
4) Press the ‘Sub’ key output on the Stereo modules processing the
musical program to be faded out
5) Press ‘EXT FADER’ button on the SUB module
6) Press ‘SUB to MASTER’ button on the SUB module
