12.3 THE RELAY (REMOTE)INTERFACE IN MONO MODULE
The 9 pin D-Type plug remote connector provides the inputs and outputs for the following functions
:
- Remote Start for equipment connected to Input A and/or B
- Remote Stop for equipment connected to Input A and/or B
- Remote PFL enable
A + 6 VDC , 50 mV current-limited output is also provided for use with the
remote control outputs. There are two general settings for the Remote
Interface:

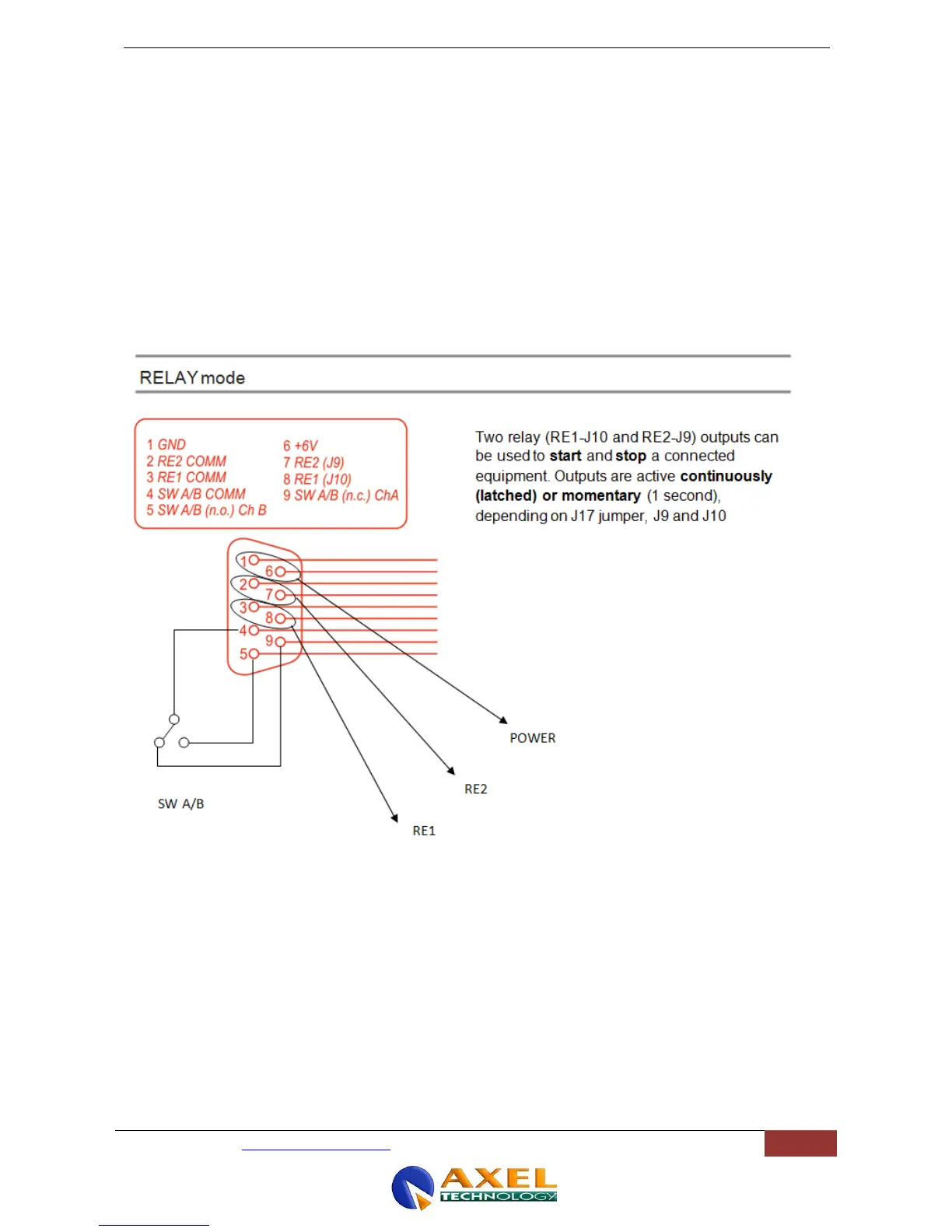

- RELAY = Relay Start / Stop commands (in Momentary / Latched mode - see jumper J17)
