14.2 AUDIO CONNECTOR PIN-OUT
Input A is electronically balanced on a pair of 1/4” Jack connector. The pin-out is the same as Stereo Module.
Inputs B-C-D-E-F (Line level) are electronically balanced on Sub D 25 pin connector.

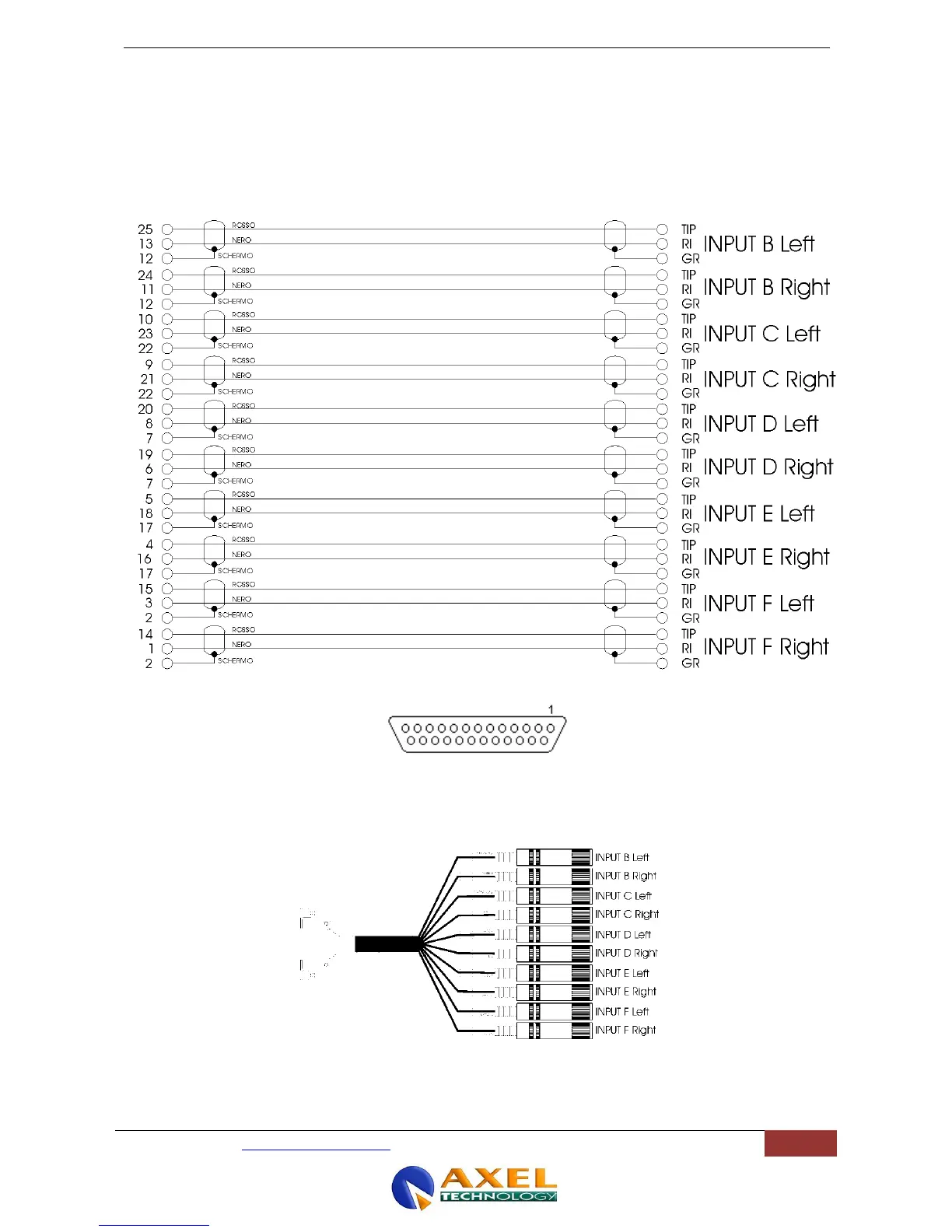

Sub D connector pin-out is as follows:
It is possible to make cables for connection to the Sub-D connector. In that case, metal caps for the Sub-D connector
and cable with a separate screening should be used, as per the CE norms.
Another possibility for connecting the mixer unit is to make use of the specific ADAPTER available as an option from Axel
Technology (see Chapter Errore. L'origine riferimento non è stata trovata.) The Adapter splits the Sub-D connector
into 10 1/4” balanced (stereo) jacks:
