The Front Panel

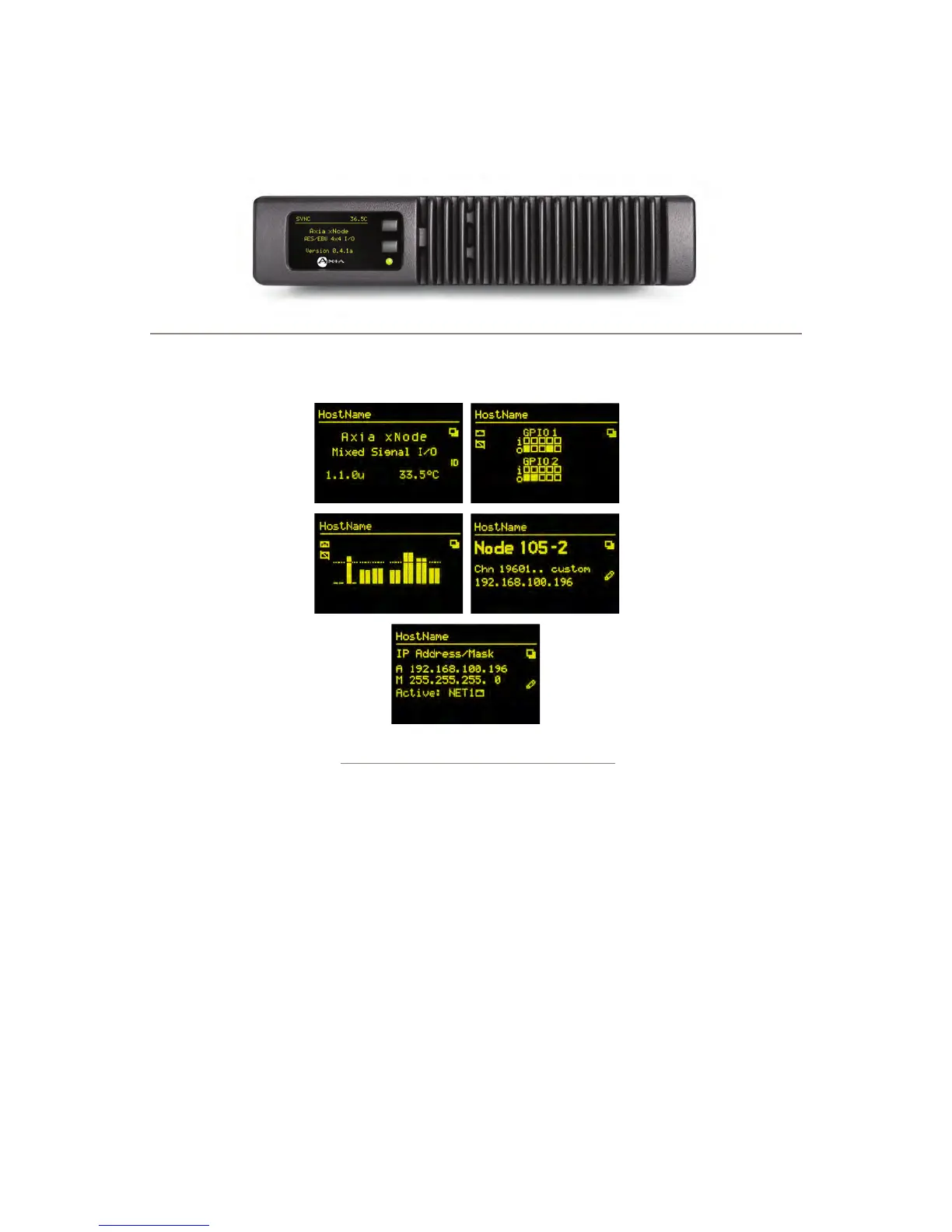

Figure 1-1: xNode Front Panel
The xNode uses the OLED display on the left hand side to provide status information and assist with initialsetup.
Figure 1-2: xNode OLED Display
