Chapter Six:
Microphone xNode
The microphone xNode has four mono inputs.
The microphone xNode provides four analog 2-channel outputs, line level. By default the outputs will be stereo au-
dio from an audio source from the network. This may be congured differently so that the 2 channel analog output
delivers two mono streams.
Rear Panel

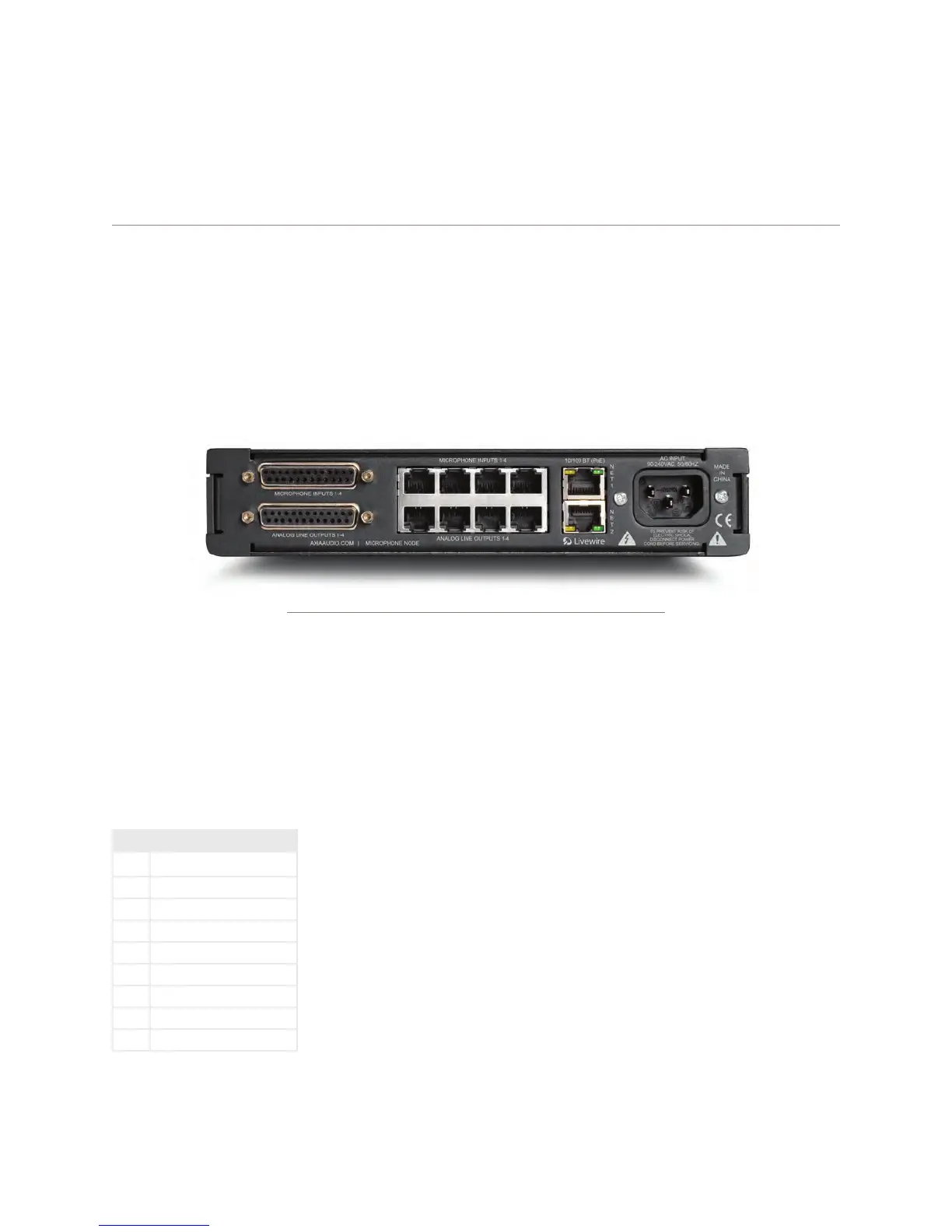

Figure 6-1: Microphone xNode Rear Panel
The microphone xNode uses RJ45 style connectors and 25 pin D-sub connectors for audio I/O, providing an option
to either use patch cables or breakout cables for audio wiring to either use standard CAT5e patch cables or D-Sub
connector breakout cables for audio wiring.
The top 4 RJ-45 style ports are analog, mono inputs. The bottom 4 RJ-45 style ports are line level analog outputs.
The pinout of an RJ-45 port
PIN FUNCTION
1 MIC +
2 MIC -
3 Not Used
4 Ground
5 Not Used
6 Not Used
7 Not Used
8 Not Used
shld GND
