Chapter Four:
Analog xNode
There are 4 two-channel (8 one-channel) inputs with the analog xNode. With default settings, the xNode will gener-
ate 4 Livewire stereo sources. You may also congure the inputs separately as different sources and generate up to 8
Livewire mono sources.
Rear Panel

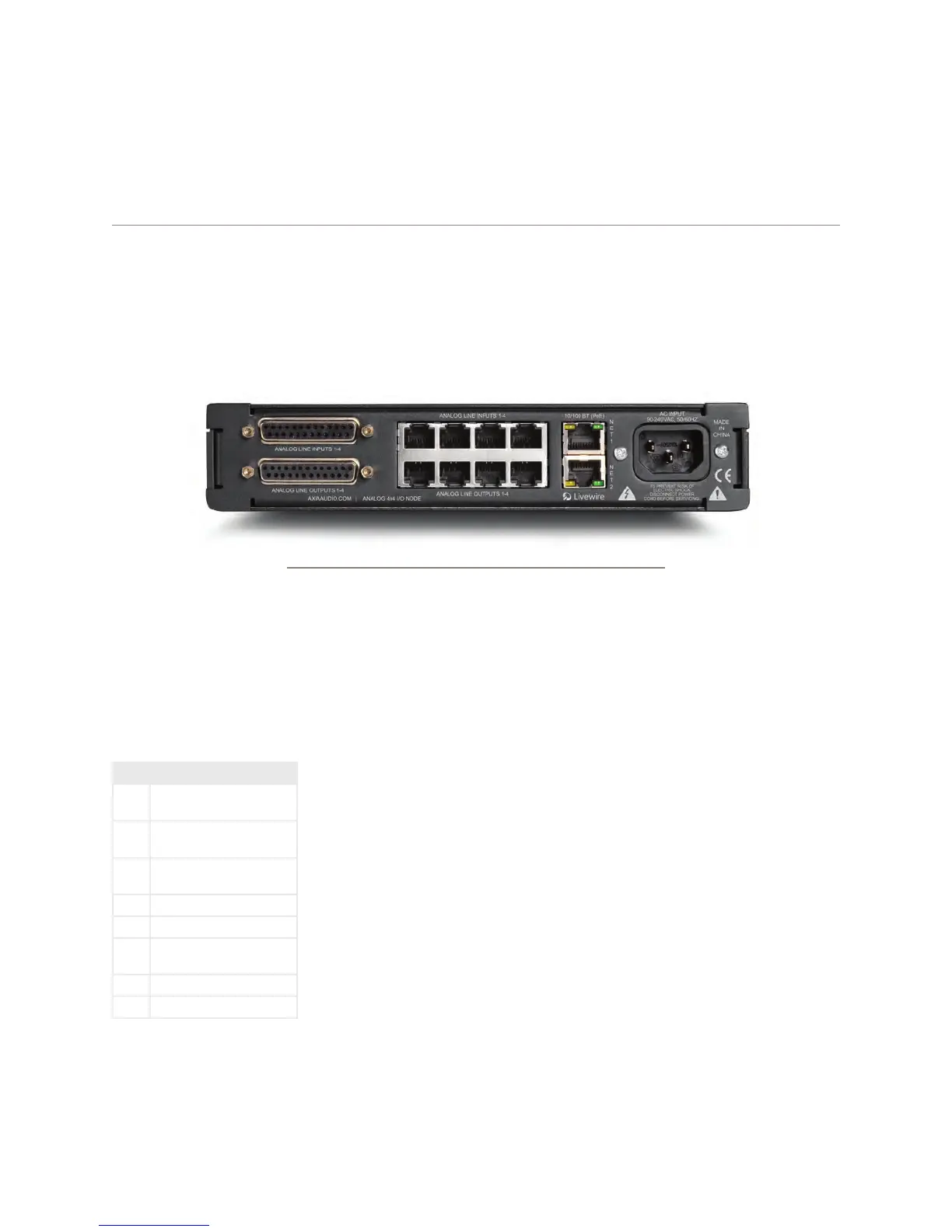

Figure 4-1: Analog xNode Rear Panel
The analog xNode uses RJ45 style connectors and 25 pin D-sub connectors for audio I/O, providing an option to
either use standard CAT5e patch cables or D-Sub breakout cables for audio wiring.
The top 4 RJ-45 style ports are line level analog inputs. The bottom 4 RJ-45 style ports are line level analog outputs.
The pinout of an RJ-45 port
PIN FUNCTION
1 Left Channel
Input/Output +
2 Left Channel
Input/Output -
3 Right Channel
Input/Output +
4 Ground
5 Not Used
6 Right Channel
Input/Output -
7 Not Used
8 Not Used
