7: GPIO xNode • 31
© 2016 Axia Audio - Rev 2.0
Chapter Seven:
GPIO xNode
The GPIO xNode provides 6 DA-15 ports. Each port provides 5 GPI (opto isolated inputs) and 5 GPO (solid state
relays). Each port is capable of driving a combined current of 100mA. Each GPI pin should be limited to 20mA of
current.
The web interface provides conguration control as well as a real time view on each of the GPI and GPO pins
through a Java script in the web interface.
Rear Panel

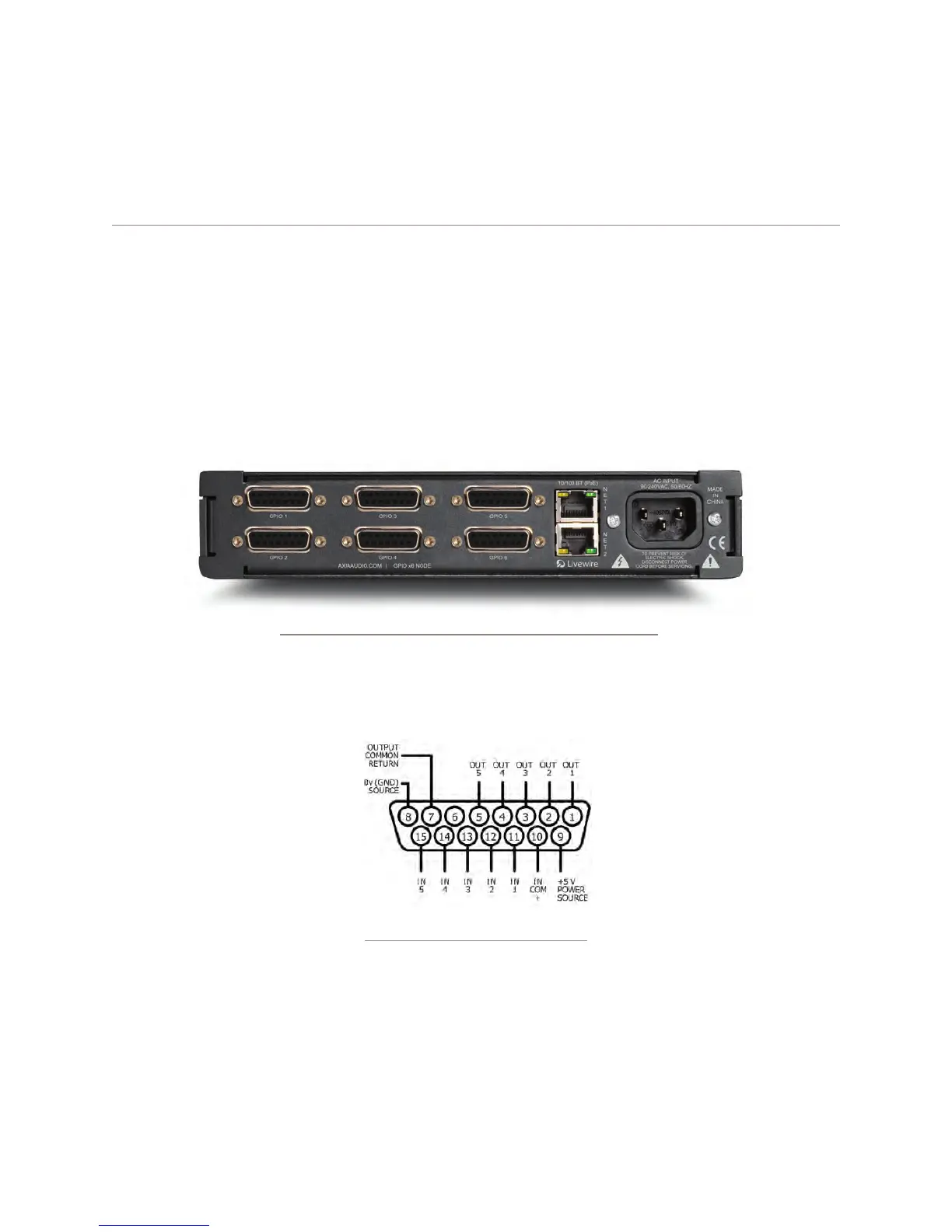

Figure 7-1: GPIO xNode Rear Panel
The illustration below shows the connector pinouts; 5 inputs and associated common return, 5 output relays and as-
sociated common, a +5 volt power source, and power source ground.
Figure 7-2
