3: The xNode in depth • 20
© 2016 Axia Audio - Rev 2.0

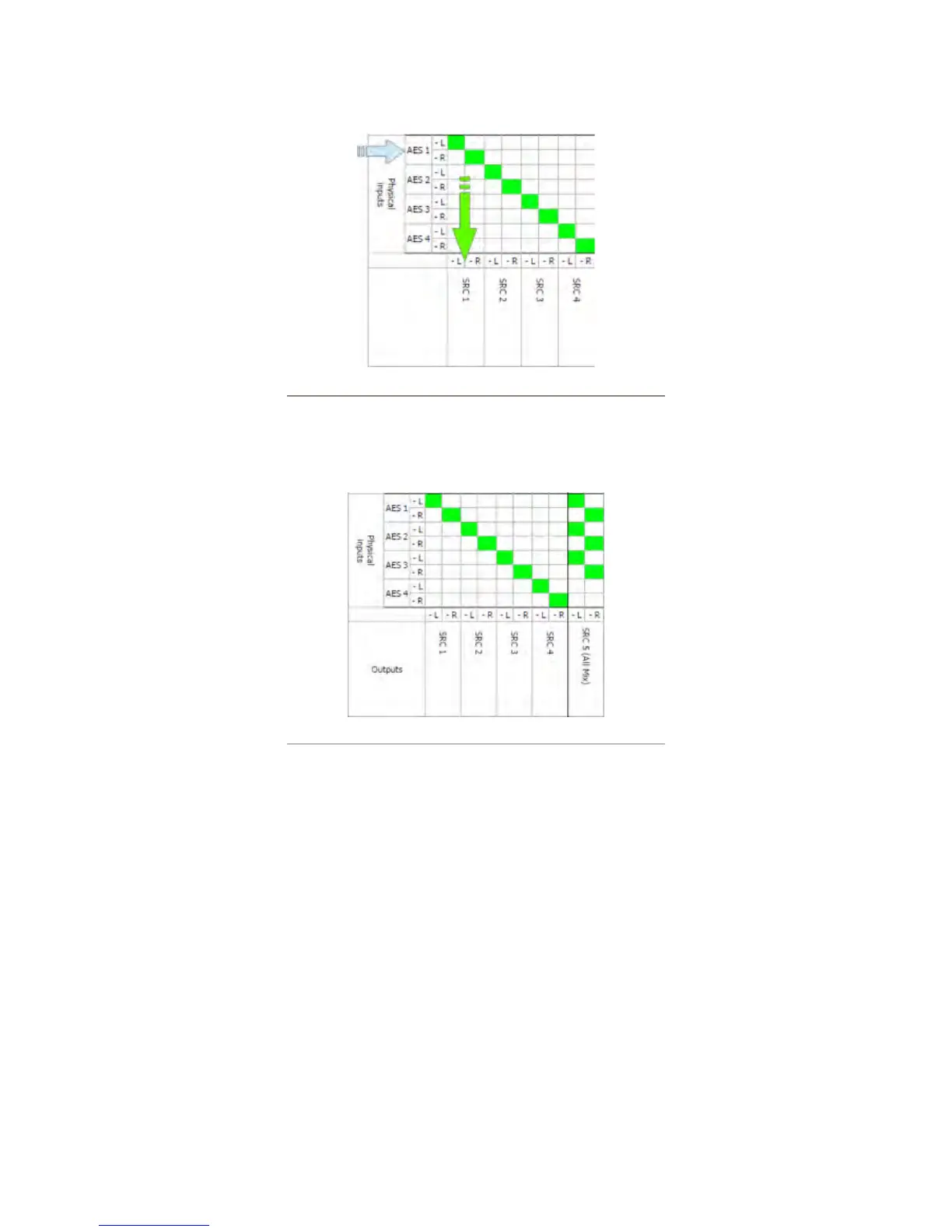

Figure 3-14
Another example with the AES/EBU xNode is all four physical inputs are turned into the rst four network stream
sources and a fth network stream source is the sum of three AES/EBU inputs as shown in gure 3-15.
Figure 3-15
Notice that the name of the fth output is changed, and this is accomplished by entering text into the Source Name
eld of the Sources page.
The possibilities of what you can achieve with the matrix mixer are quite broad, just keep an eye on the utilization
counter present to the top right of the mixer.
