Axis 223M User Manual

22
AXIS 223M - Video and Image Settings

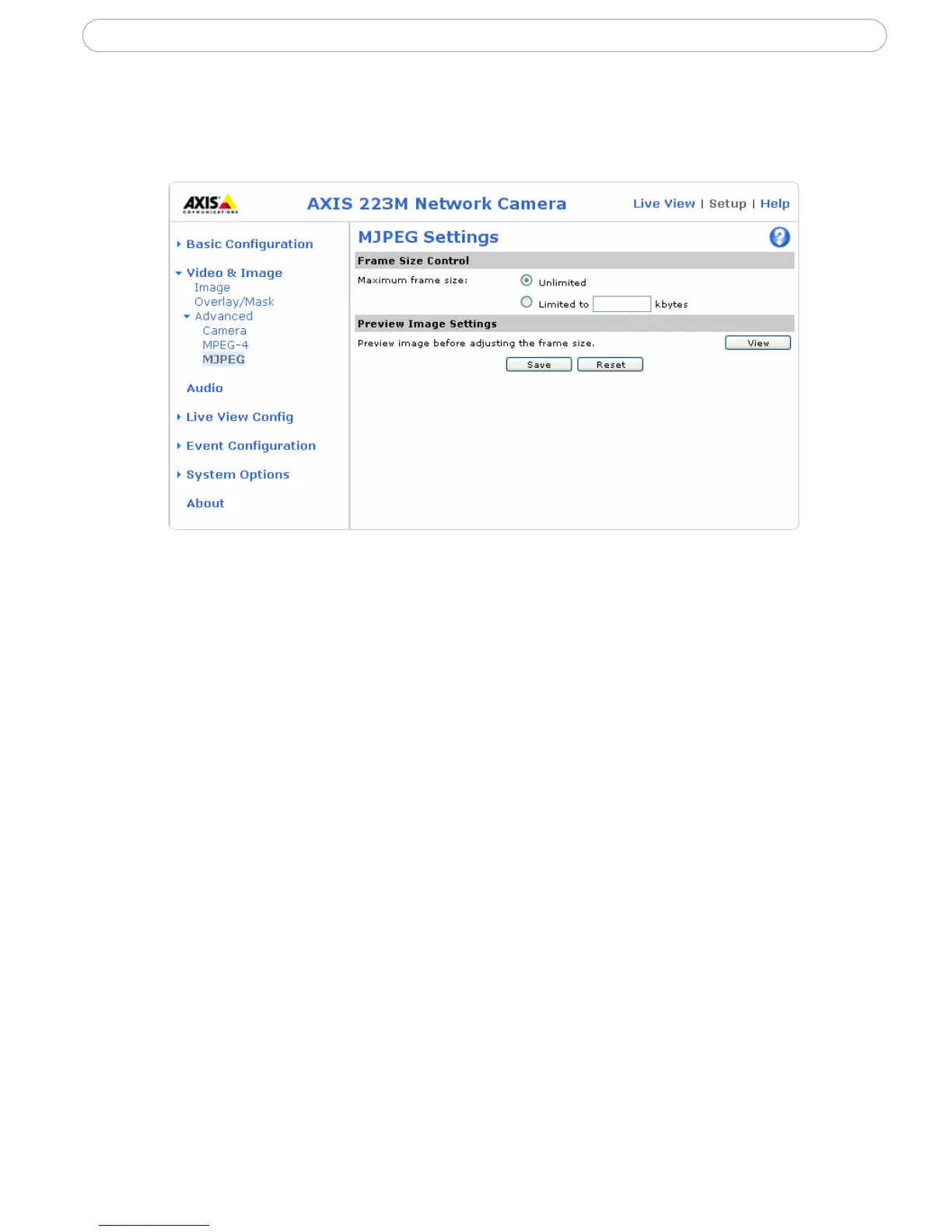

MJPEG Settings
The MJPEG Settings window is used to control the frame size of the video stream in order
to
improve either image quality or save bandwidth.
Frame Size Control - Use Frame Size Control to set the maximum frame size to unlimited
for best image quality, or to a limited number of Kbytes. The default is set to unlimited.
Preview Image Settings - Use Preview Image Settings to view the current compression
and frame size settings in the text overlay at the top of the image.

Axis 223M Specifications

General

Megapixel	2 MP
Focal length range	4 - 8 mm
Maximum frame rate	12 fps
Maximum video resolution	1600 x 1200 pixels
Sensor type	CCD
Product color	Gray
Focus	1.4
I/O ports	RS-232 RS-485/422
Security features	Multi-level password, IP address filtering, HTTPS encryption.
Dimensions (WxDxH)	88 x 200 x 49 mm
Compliance industry standards	IEEE 802.1X, IEEE 802.11g/b

Weight and Dimensions

Weight	620 g
