Axis 223M User Manual

23

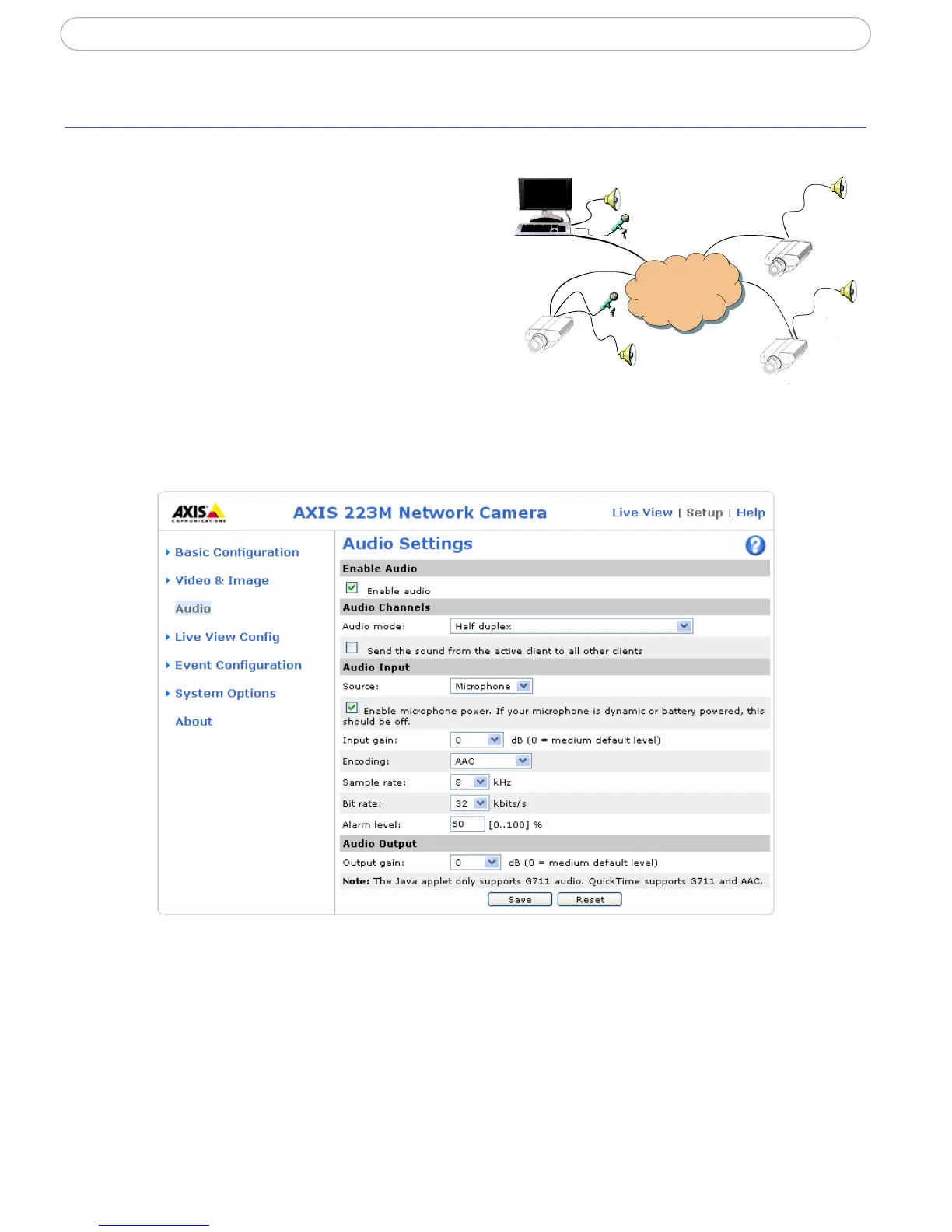

AXIS 223M - Audio
Audio
The AXIS 223M can transmit audio to other
clients using a connected external microphone
and can play audio received from other clients
via connected speakers. This section describes
how to configure the basic audio settings for the
AXIS 223M, e.g. set the communication mode
and adjust the sound levels in the microphone
and speakers connected to the camera.
Note: The speakers connected to the audio output must have
a built-in amplifier, e.g. PC speakers.
Audio Settings - Enable Audio
Check this box to enable audio in the AXIS 223M.
Audio Channels - Audio mode
Half-duplex mode transmits and receives audio in both directions, but only in one
direction at a time. This means that you must select when to receive or transmit audio with
the push-to-talk button. To speak, press and hold the button (check that the microphone is
not muted). When finished speaking, release the button and you will receive audio from
the other end of the connection.
Client PC
TCP/IP Network
Example of a network
using AXIS 223M cameras to transmit
audio and video across the network.

Axis 223M Specifications

General

Megapixel	2 MP
Focal length range	4 - 8 mm
Maximum frame rate	12 fps
Maximum video resolution	1600 x 1200 pixels
Sensor type	CCD
Product color	Gray
Focus	1.4
I/O ports	RS-232 RS-485/422
Security features	Multi-level password, IP address filtering, HTTPS encryption.
Dimensions (WxDxH)	88 x 200 x 49 mm
Compliance industry standards	IEEE 802.1X, IEEE 802.11g/b

Weight and Dimensions

Weight	620 g
