AXIS 223M - Unit Connectors

The RS-232 connector

The AXIS 223M provides one 9-pin D-sub connector, providing the physical interface for an

RS-232 port, used for connecting accessory equipment.

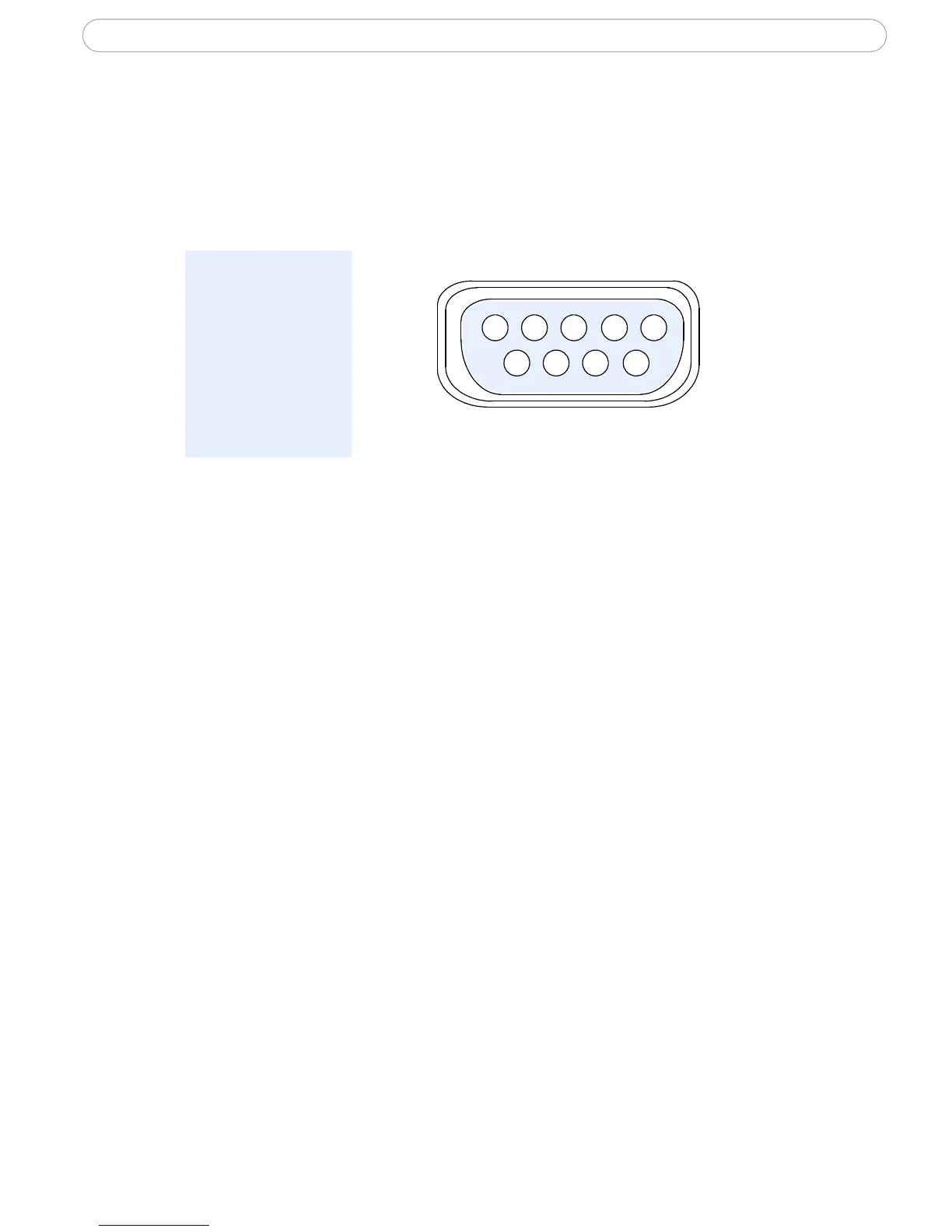

A diagram of the RS-232 connector, complete with pin assignment table, is shown below.

Pin Function

1 CD

2 - RXD

3 - TXD

4 DTR

5 GND

6 DSR

7 RTS

8 CTS

9 RI

54321

6789
