Axis 223M User Manual

26

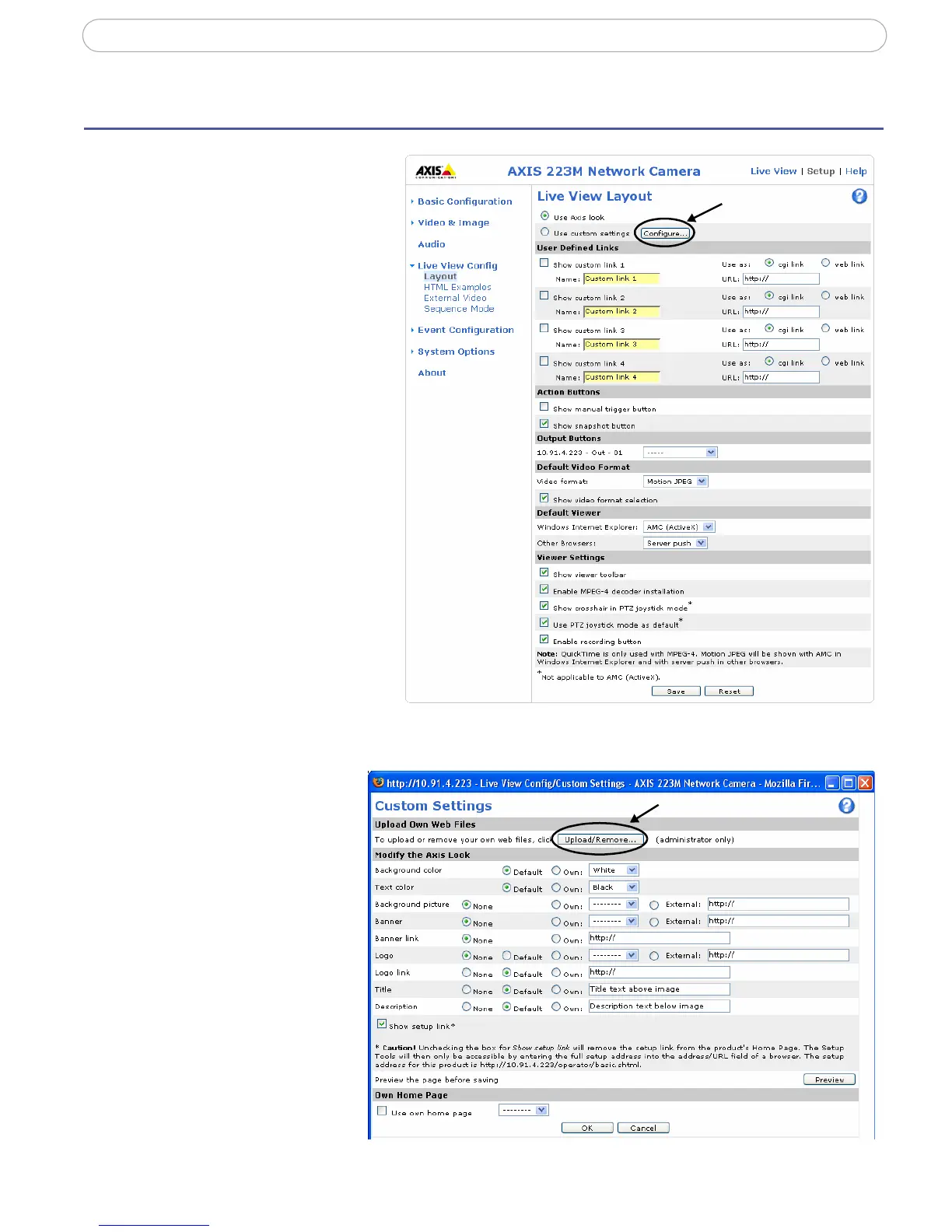

AXIS 223M - Live View Config
Live View Config
These are the tools for deciding
the layout of the camera’s Live
View page. The layout can be set
in 3 ways:
• Use Axis look - the layout is
unchanged.
• Use custom settings - modify
the default Live View page
with your own colors, images
etc. Click the Configure button
to open the Custom Settings
window shown below.
• Own Home Page - Use your
own custom page as the
default web page. Click the
Configure button to open the
Custom Settings window
shown below.
The other settings on this page
concern which other features to
include, e.g. buttons and links.
See
page 28 for more
information.
Use custom settings
Adjust the settings under
Modify the Axis look, to
change the background
picture, banner, colors, etc.
To use your own file for e.g. a
banner, first upload it (see the
following page) or select
External and enter the path
to the file.

Axis 223M Specifications

General

Megapixel	2 MP
Focal length range	4 - 8 mm
Maximum frame rate	12 fps
Maximum video resolution	1600 x 1200 pixels
Sensor type	CCD
Product color	Gray
Focus	1.4
I/O ports	RS-232 RS-485/422
Security features	Multi-level password, IP address filtering, HTTPS encryption.
Dimensions (WxDxH)	88 x 200 x 49 mm
Compliance industry standards	IEEE 802.1X, IEEE 802.11g/b

Weight and Dimensions

Weight	620 g
