Axis 223M User Manual

53
AXIS 223M - Unit Connectors
Power connections
Power can be supplied to the camera by the following methods:
• The supplied power adapter, PS-K, 9W. The center pin is positive (+).
• Power over Ethernet (PoE) with power classification Class 2, via the network
cable. This will automatically be detected if available via the network.
• The power connector block on the rear panel.
Power connector block
The power connector block supports both AC and DC input power.
The DC supply is 7-24V. Connect the negative pole to the GND pin and the positive pole to
the DC+ pin.
The AC supply is 10-24V. Connect the AC poles to the AC pins.

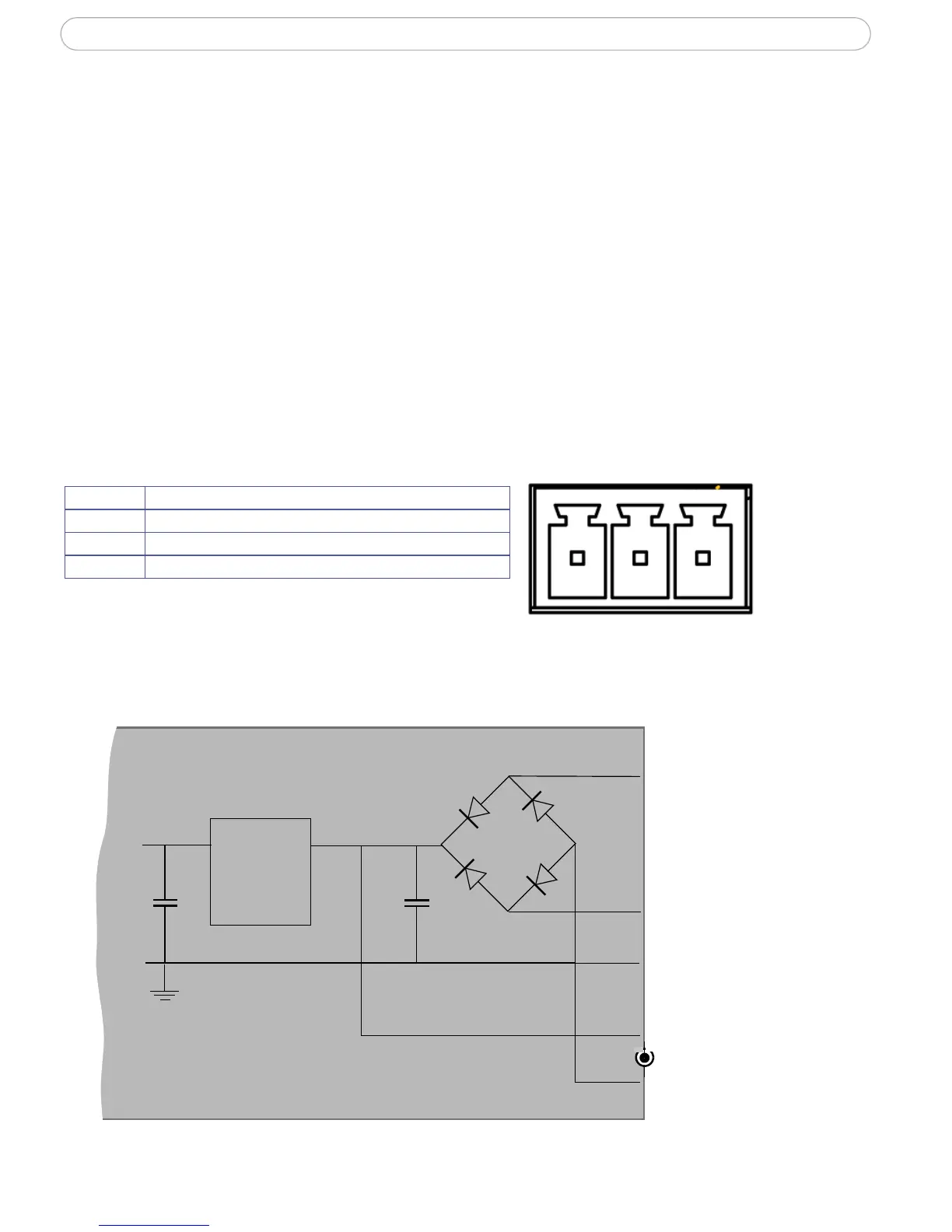

Schematic diagram - Power terminal block and Power connectors
Power connector block pin assignment table.
Pin Function
GND Ground/DC-
AC/DC+ AC and DC+, power input for mains power to unit
AC AC power input for mains power to unit
AC AC
DC+
GND
3
2
o
o
Mode
Power
Supply
3.3V
z
z
zz
z
z
z
z
z
z
o
o
Internal
~
Switch
o
z
GND
AC
1
AC/DC+
GND/DC-
=
+
-
Axis Power Supply
PS-K 9V max 9W or
according to parts list

Axis 223M Specifications

General

Megapixel	2 MP
Focal length range	4 - 8 mm
Maximum frame rate	12 fps
Maximum video resolution	1600 x 1200 pixels
Sensor type	CCD
Product color	Gray
Focus	1.4
I/O ports	RS-232 RS-485/422
Security features	Multi-level password, IP address filtering, HTTPS encryption.
Dimensions (WxDxH)	88 x 200 x 49 mm
Compliance industry standards	IEEE 802.1X, IEEE 802.11g/b

Weight and Dimensions

Weight	620 g
