Axis 223M User Manual

17
AXIS 223M - Video and Image Settings
Video and Image Settings
The following descriptions show examples of some of the features available in the AXIS
223M. For details of each setting, please refer to the online help available from the setup
tools. Click
to access the online help.

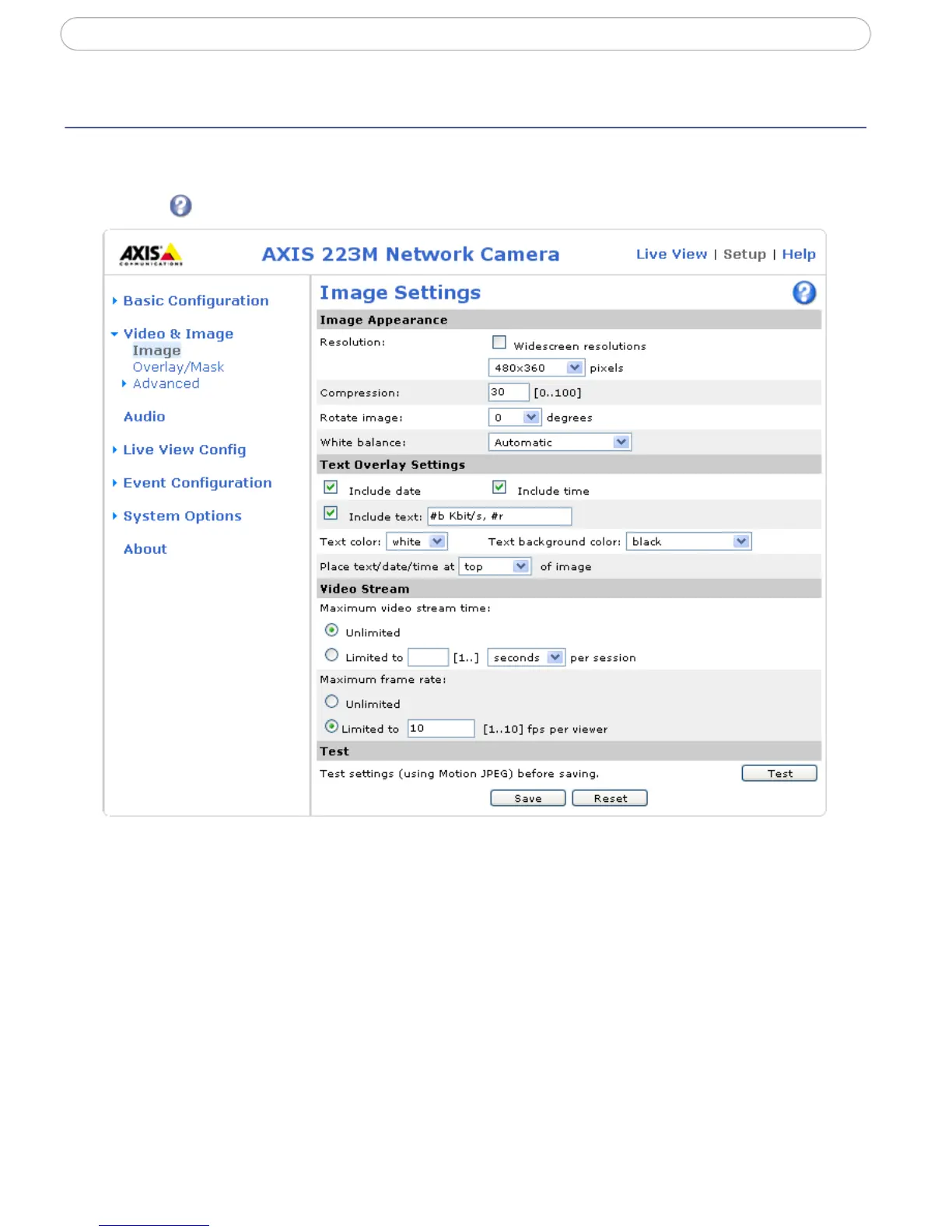

Image settings
Image appearance
Use these settings to change the image as required. The video image can be rotated and
fine-tuned by adjusting the color level, the brightness and the sharpness.
The configuration of the video image will affect the camera’s overall performance,
depending on how it is used and on the available bandwidth. Setting higher resolution and
lower compression improves video image quality, but increases the amount of bandwidth
used.

Axis 223M Specifications

General

Megapixel	2 MP
Focal length range	4 - 8 mm
Maximum frame rate	12 fps
Maximum video resolution	1600 x 1200 pixels
Sensor type	CCD
Product color	Gray
Focus	1.4
I/O ports	RS-232 RS-485/422
Security features	Multi-level password, IP address filtering, HTTPS encryption.
Dimensions (WxDxH)	88 x 200 x 49 mm
Compliance industry standards	IEEE 802.1X, IEEE 802.11g/b

Weight and Dimensions

Weight	620 g
