19
AXIS 223M - Video and Image Settings
Overlay/Mask settings
Overlay/Mask type
When using an image overlay,
select from the following options
the type to use:
Uploaded image as overlay -
usually used to provide extra
information in the video
image.
Uploaded image as privacy
mask - conceals part of the
video image.
Configurable areas as privacy
masks - up to 3 black areas are
used to conceal parts of the
video image.
The difference between an overlay and a privacy mask is that a privacy mask cannot be
bypassed by accessing the video stream with the help of the AXIS HTTP API, whereas an
overlay can.
Selecting the overlay/mask type will display further settings available for the selected type.
See the online help for further information.Overlay/Mask Type
Upload and use an overlay/mask
To upload an overlay image/privacy mask to the camera:
1. Select the type of overlay to use in Overlay/Mask Type.
2. In the field Upload own image, click the Browse button and locate the image file
on your computer or server.
3. Click the Upload button and follow the on-screen instructions.
To use an already uploaded image:
1. Select an uploaded image from the Use image drop-down list.
2. Place the image at the required location by entering the x and y coordinates.
3. Click Save.

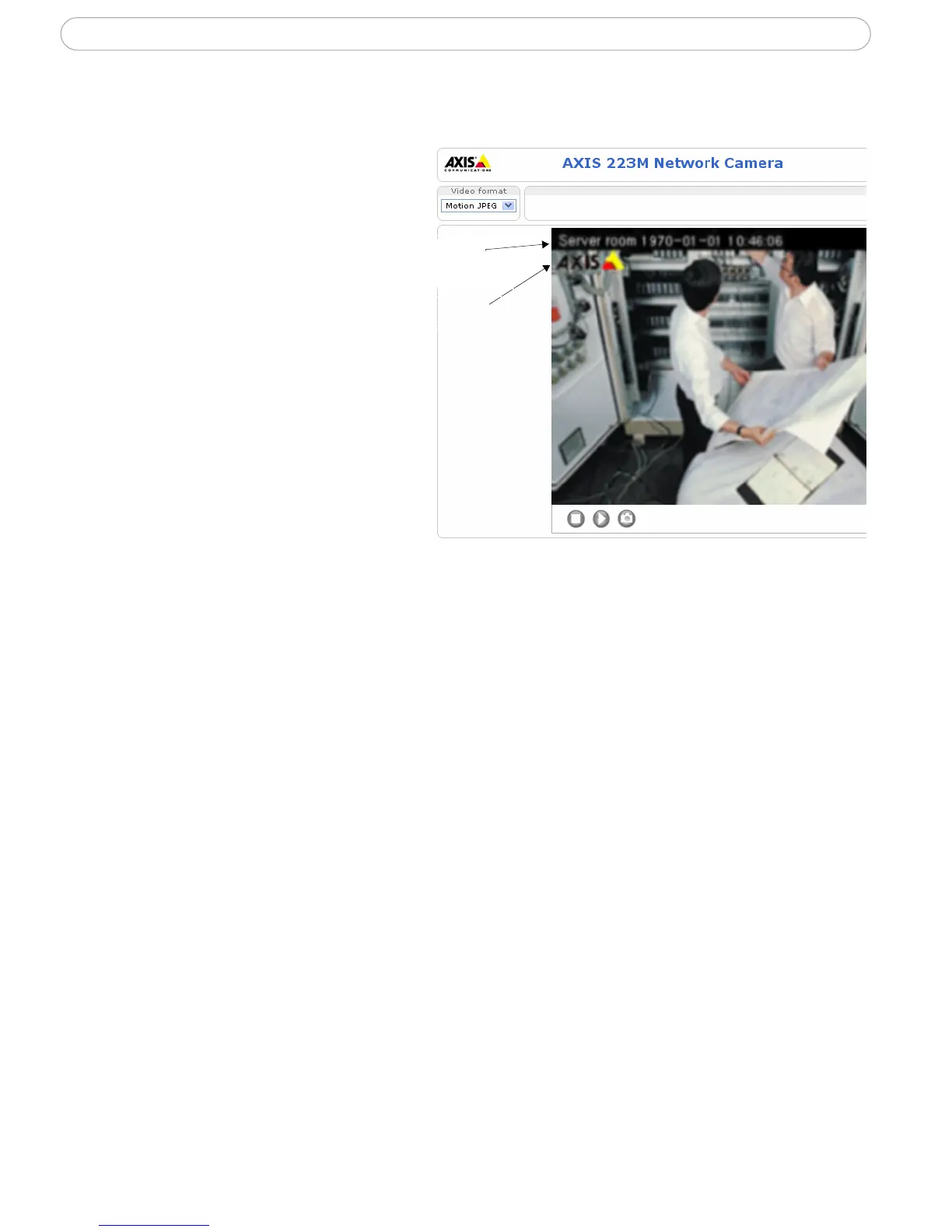

Text, date and
time overlays
Overlay image
