AXIS Q1615-E Mk II Network Camera

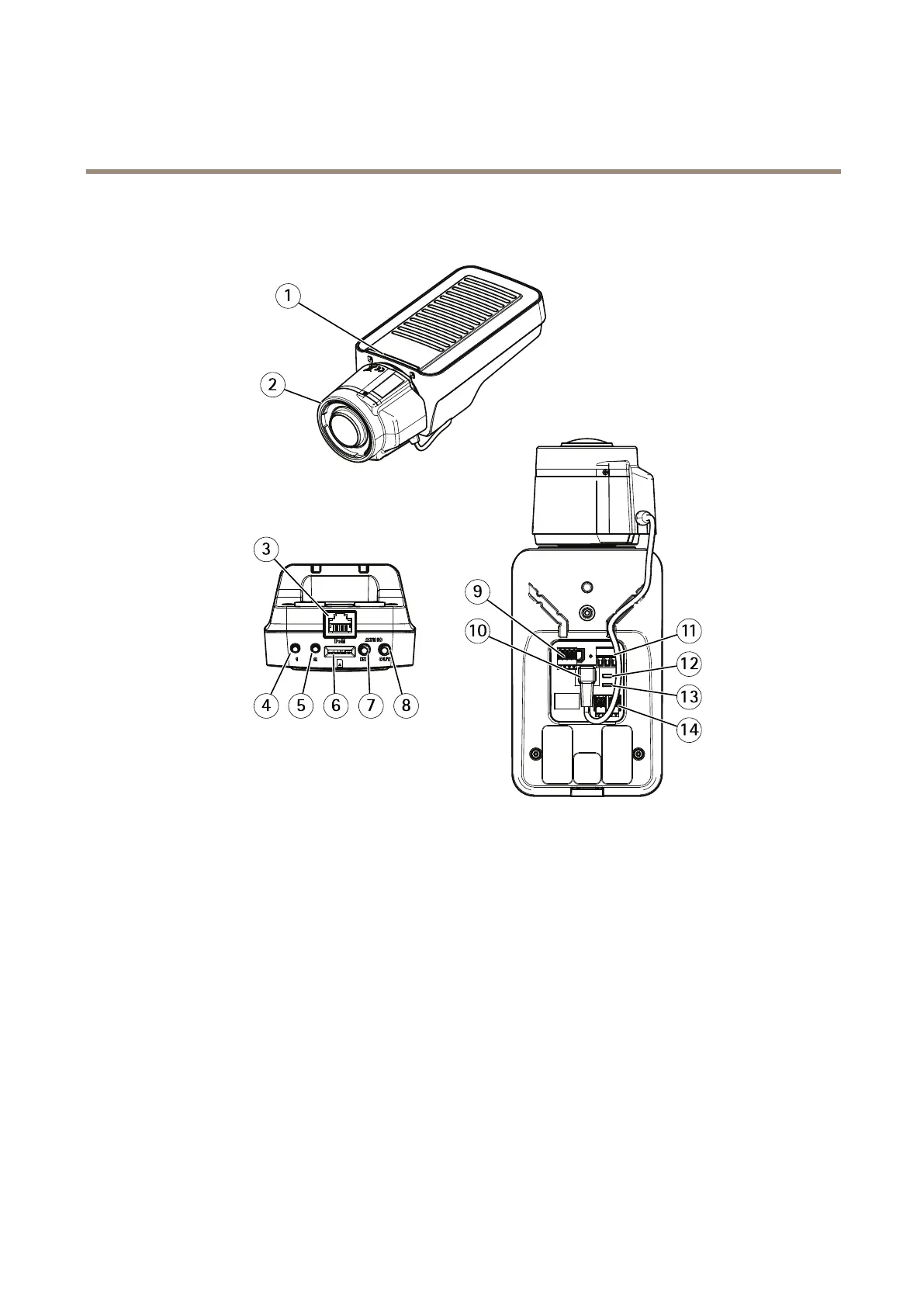

Hardware Overview
Hardware Overview
1
Status LED indicator
2
Lens
3
Network connector (PoE)
4
Control button (1)
5
Function button (2)
6
microSD Card slot
7
Audio in
8
Audio out
9
I/O connector
10
Iris connector
11
Power connector
12
Power LED indicator
13
Network LED indicator
14
RS485/RS422 connector
