Axis Q1615-E Mk II User Manual

AXIS Q1615-E Mk II Network Camera
Technical Specifications
Weight
3896 g (8.6 lb)
Included
accessories
AXIS T94Q01A Wall Mount, Sunshield
Connector kit, Resistorx T20 tool, Installation Guide, Windows decoder 1-user license
Optional
accessories
AXIS T91A47 Pole Mount, AXIS T94R01P Conduit Back Box, VT Corner Mount WCWA,
VT Column Mount Ball Joint WFWCA, AXIS T98A16-VE Surveillance Cabinet, Axis Optional Lenses,
AXIS T90B Illuminators, Axis network cable couplers, AXIS T8120 Midspan 15 W 1-port,
AXIS T8133 Midspan 30 W 1-port, AXIS T8129 PoE Extender, AXIS Surveillance microSDXC™ Card 64 GB
Video
management
software
AXIS Camera Companion, AXIS Camera Station, Video management software from Axis’ Application Development
Partners available on www.axis.com/techsup/software
Languages
English, German, French, Spanish, Italian, Russian, Simplied Chinese, Japanese, Korean, Portuguese, Traditional
Chinese
Warranty
Axis 3-year warranty and AXIS Extended Warranty option, see www.axis.com/warranty
a. This product includes software developed by the OpenSSL Project for use in the OpenSSL Toolkit (http://www.openssl.org/), and
cryptographic software written by Eric Young (eay@cryptsoft.com).
Environmental responsibility:
www.axis.com/environmental-responsibility

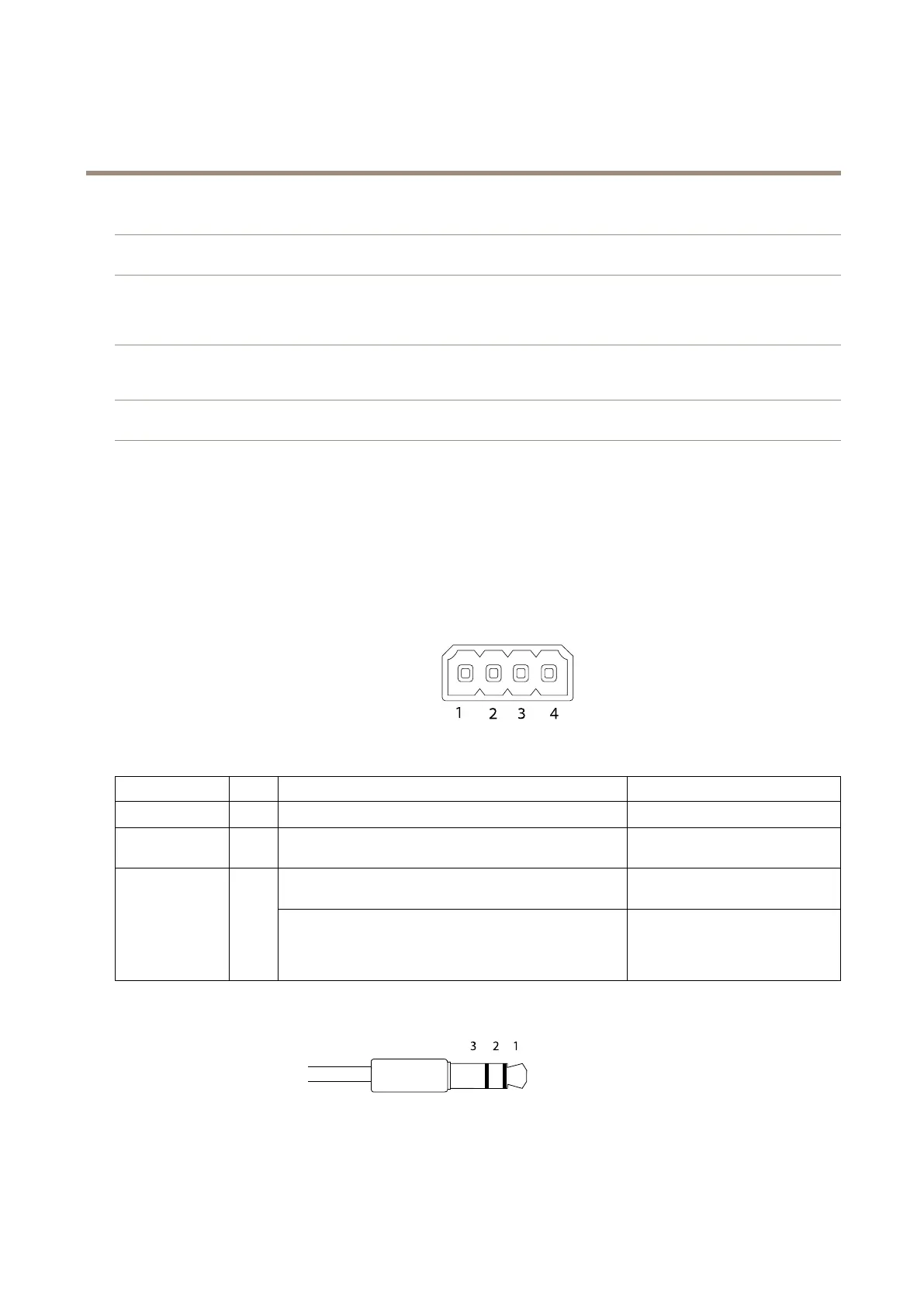

Connectors
I/O connector
4–pin terminal block
For an example diagram, see Connection Diagrams on page 78.
Function Pin Notes
Specications
0 V DC (-)
1
DC output
2
Can be used to power auxiliary equipment.
Note: This pin can only be used as power out.
12 V DC
Max load = 50 mA
Digital input – Connect to pin 1 to activate, or leave oating
(unconnected) to deactivate.
0 to max 30 V DCCongurable
(Input or Output)
3–4
Digital output – Connected to pin 1 when activated, oating
(unconnected) when deactivated. If used with an inductive
load, e.g. a relay, a diode must be connected in parallel with
the load, for protection against voltage transients.
0 to max 30 V DC, open drain,
100 mA
Audio Connector
3.5 mm audio connectors
(stereo)
76

Axis Q1615-E Mk II Specifications

General

Brand	Axis
Model	Q1615-E Mk II
Category	Security Camera
Language	English
