AXIS Q1615-E Mk II Network Camera
Technical Specifications
1 Tip 2 Ring
3 Sleeve
Audio Input
Balanced: ‘Hot’ signal Microphone/Line in
Unbalanced: Microphone/Line in
Balanced: ‘Cold’ signal Microphone/Line
in
Unbalanced: Unused
Ground
Audio Output
Line out, mono (stereo connector
compatible)
Line out, mono (stereo connector
compatible)
Ground
The internal microphone is used by default; the external microphone is used when connected. It is possible to disable the internal
microphone by connecting a plug to the mic input.

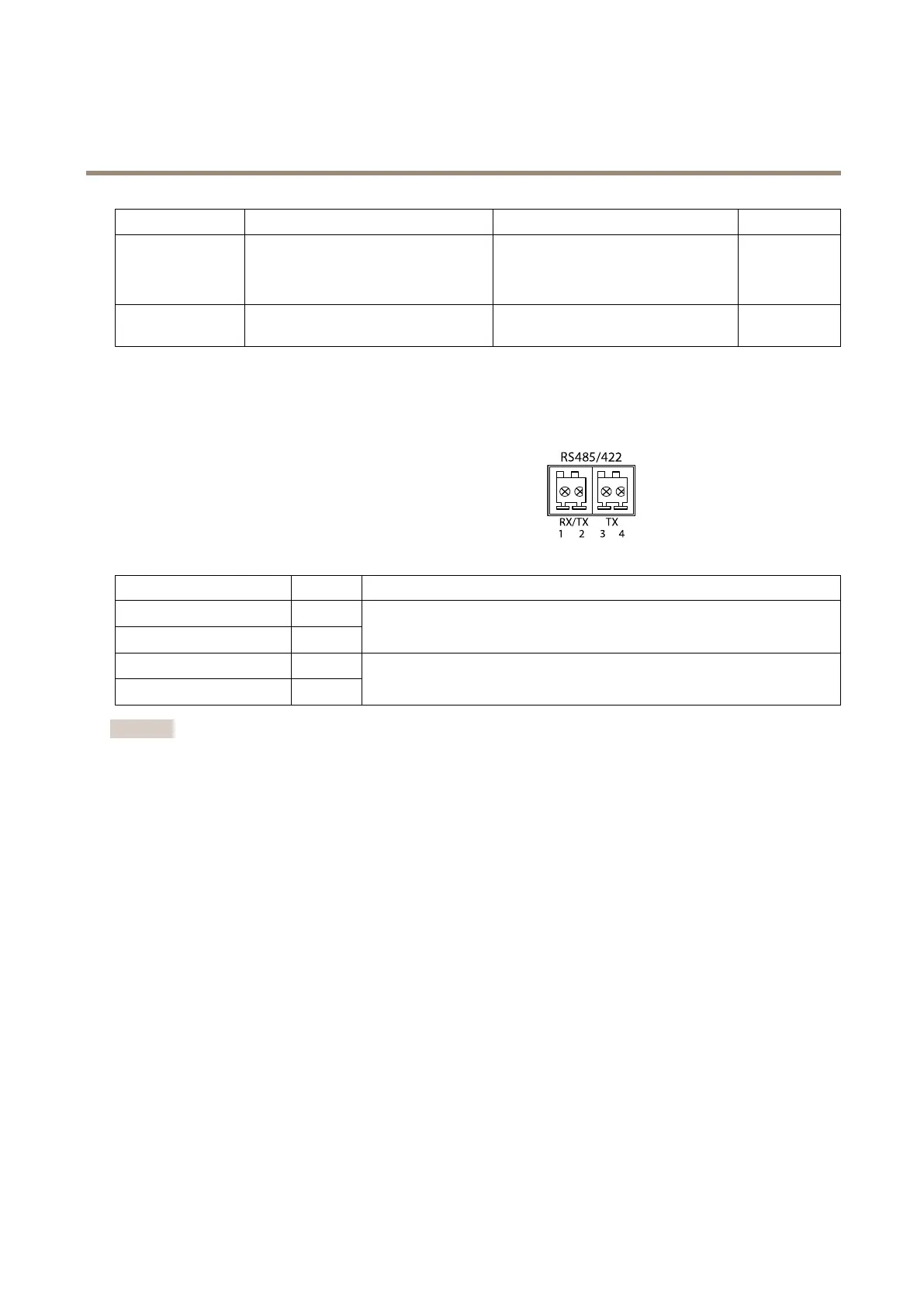

RS485/422 Connector
Two 2-pin terminal blocks for RS485/RS422 serial interface. The serial
port can be congured to support:
• Two-wire RS485 half duplex
• Four-wire RS485 full duplex
• Two-wire RS422 simplex
• Four-wire RS422 full duplex point to point communication
Function Pin Notes
RS485B alt RS485/422 RX(B)
1
RS485A alt RS485/422 RX(A)
2
RX pair for all modes (combined RX/TX for 2-wire RS485)
RS485/RS422 TX(B)
3
RS485/RS422 TX(A)
4
TX pair for RS422 and 4-wire RS485
Important
The recommended maximum cable length is 30 m (98.4 ft).
77
