AXOR Industries Service Manual MiniMagnum
TM
ver.1 rev.05/'15

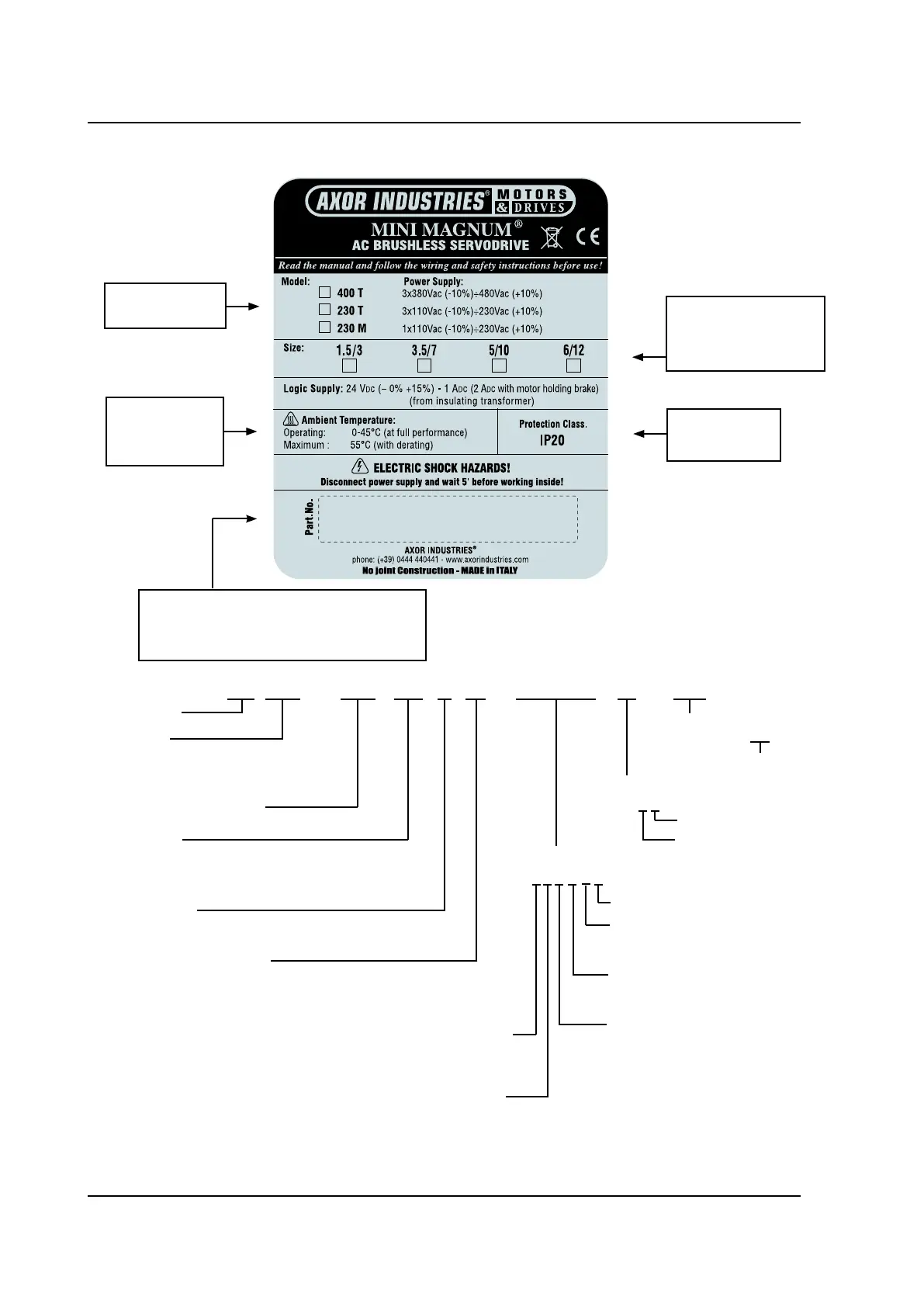

1.5 Product plate and Ordering Code
On the side of each MiniMagnum
TM
there is a product plate like the follow:
Nominal and peak
output current (in
Ampere RMS)
Power
supply
Protection
rating
Environmental
temperature
range
The "Part. No" gives others descrip-
tive codes about the drive and the
settings.
MM 400T - 3.5/7 - RXX - S - RO - 0 0 0 0 0 X - 0X - Sxxx
Size: 1.5/3, 3.5/7, 6/12
Name: Drive Line
Protection:
S = Standard
T = Tropicalized
Feedback:
RO = Resolver
EC = Commutation encoder
ER = Commutation encoder or resolver (both)
Specic number presence (opt):
S xxx
001÷999=specic number
Expansion cards:
0 X
Not in use
HBD: Holding Brake Drive
1= Present (opt)
0= Not Present (std)
Additional features:
0 0 0 0 0 X
CBMD: CanBus + Multidrop Interface
1= Present (opt)
0= Not Present (std)
Not in use
SEF: Safety Enable Function
1= Present (opt)
0= Not Present (std)
RXDB: Black Out Dynamic Brake
1= Present (opt)
0= Not Present (std)
R485: RS485 Interface
1= Present (opt)
0= Not Present (std)
Additional Connector M3
1= Present (opt)
0= Not Present (std)
Dumping size:
RXX = Internal standard resistor
R05 = 500W - 66Ω External resistor (opt)
R10 = 1000W - 33Ω + 33Ω 500W External resistors (opt)
Power Supply:
400T = 380÷480Vac 3PH (std)
230T = 110÷230Vac 3PH (std)
230M = 110÷230Vac 1PH (opt)
