AXOR Industries Service Manual MiniMagnum
TM
ver.1 rev.05/'15

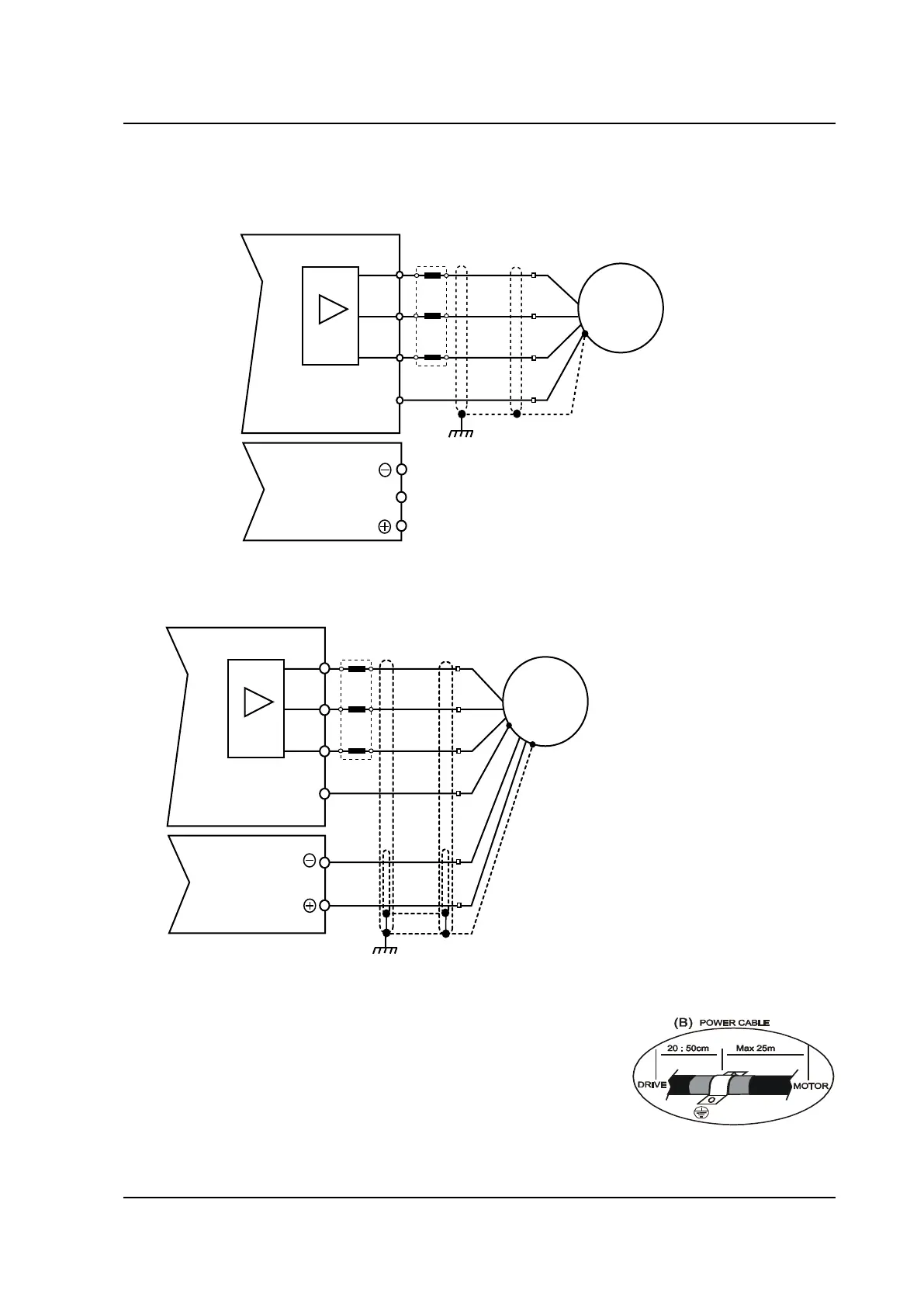

2.10 Motor power connection
MOTOR POWER + MOTOR HOLDING BRAKE
W
V
U
PE
Power
L
MiniMagnum
TM
M6
M
4
3
2
1
2 (NC)
1 (NC)
3 (NC)
M7
L
M
W
V
U
PE
Power
MiniMagnum
M6
M7
WITHOUT brake
WITH brake
OPTIONAL
(see note a)
(see note a)
(see note b)
(see note b)
b- The earth connection of the power cable’s shield must be made on
the zinc-coated panel (using a u-clamp) near the drive (20-50cm).
Motor side: the shield is connected to connector's metal ring, so it is
connected to ground through motor's carcass.
Note:
a- Use 3x1.2mH - 20Arms lter series for connections with cables longer than 20/25 meters.
Technical characteristics of brake outputs:
Output Voltage: +24VDC [0%, +15%].
Maximum available current: 3A.
