The MiniMagnum
TM

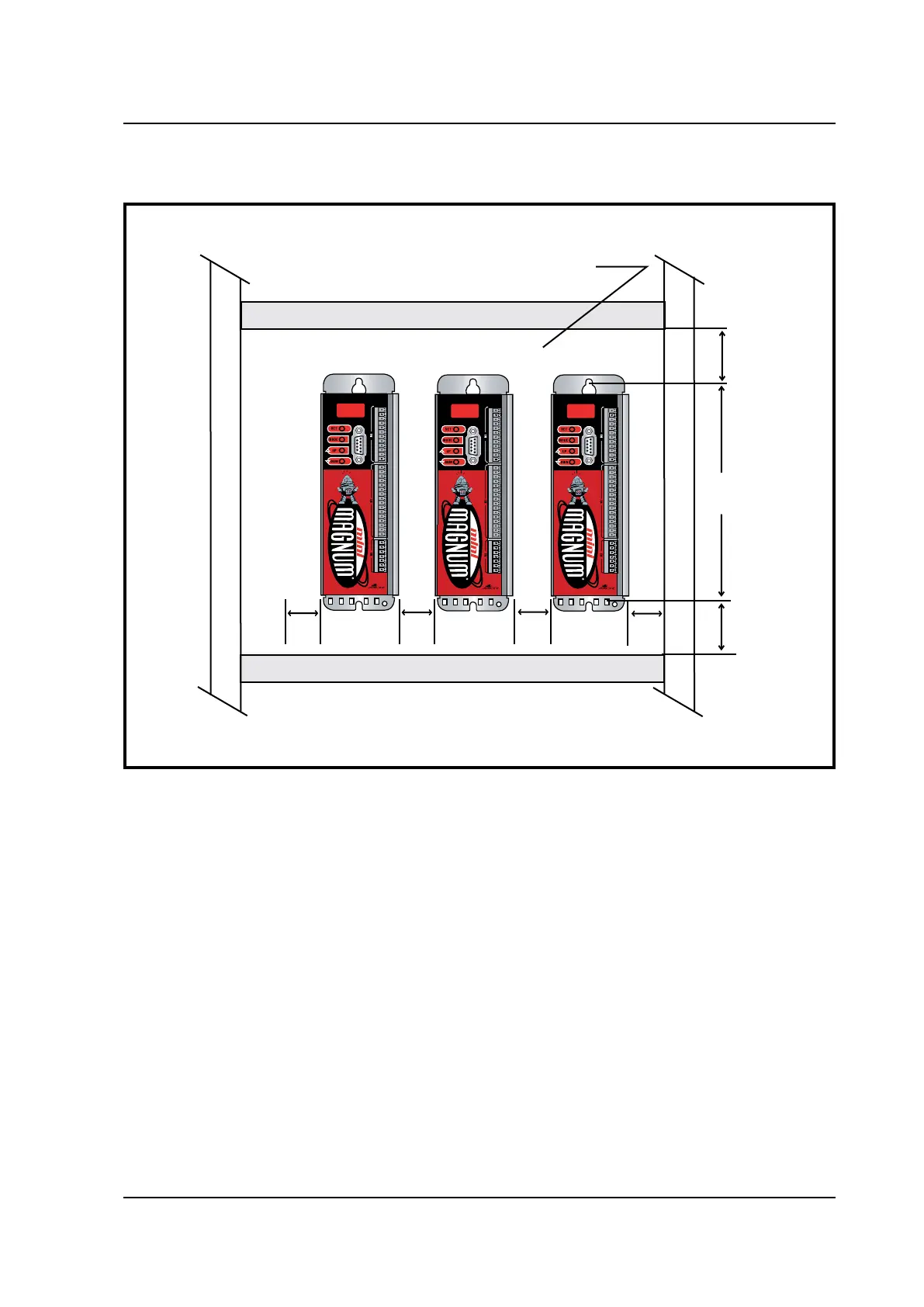

is made to be xed vertically to the bottom of the electrical box in order to
guarantee reliable cooling, respecting the following distances:
2.2 Positioning
Note: Arrange the power components (converters, main's lters, resistors, terminals, ... ) in bins of
the electrical panel different from those reserved to the command or control systems (PLC, PC, CNC,
regulators, ...). This improves the level of immunity to interference of the system.
20 2020 20
Ecc.
191
45
45
Dimensions in: mm
Cable duct
Cable duc
Zinced panel
