Azbil Corporation Model MTG11A/18A/11B/18B/14C System configuration and structure
Model MTG11A/18A, MTG11B/18B, MTG14C 1-5
System configuration for analog output and pulse output
System configuration
An example of the system configuration is shown.
The flow rate is available as an analog 4-20 mA DC output and totalized value is
available as a pulse output.
• Two wired magnetic flowmeter: Measures flow rate and outputs the instantaneous
flow rate value as an analog signal.
• Communicator: Used to communicate with this instrument, read data and change
the instrument data settings.
• Pulse output receiver equipment: It inputs the pulse output, and displays the
totalized value.
~Note Open collector: It is pulse output method to use the transistor contact.

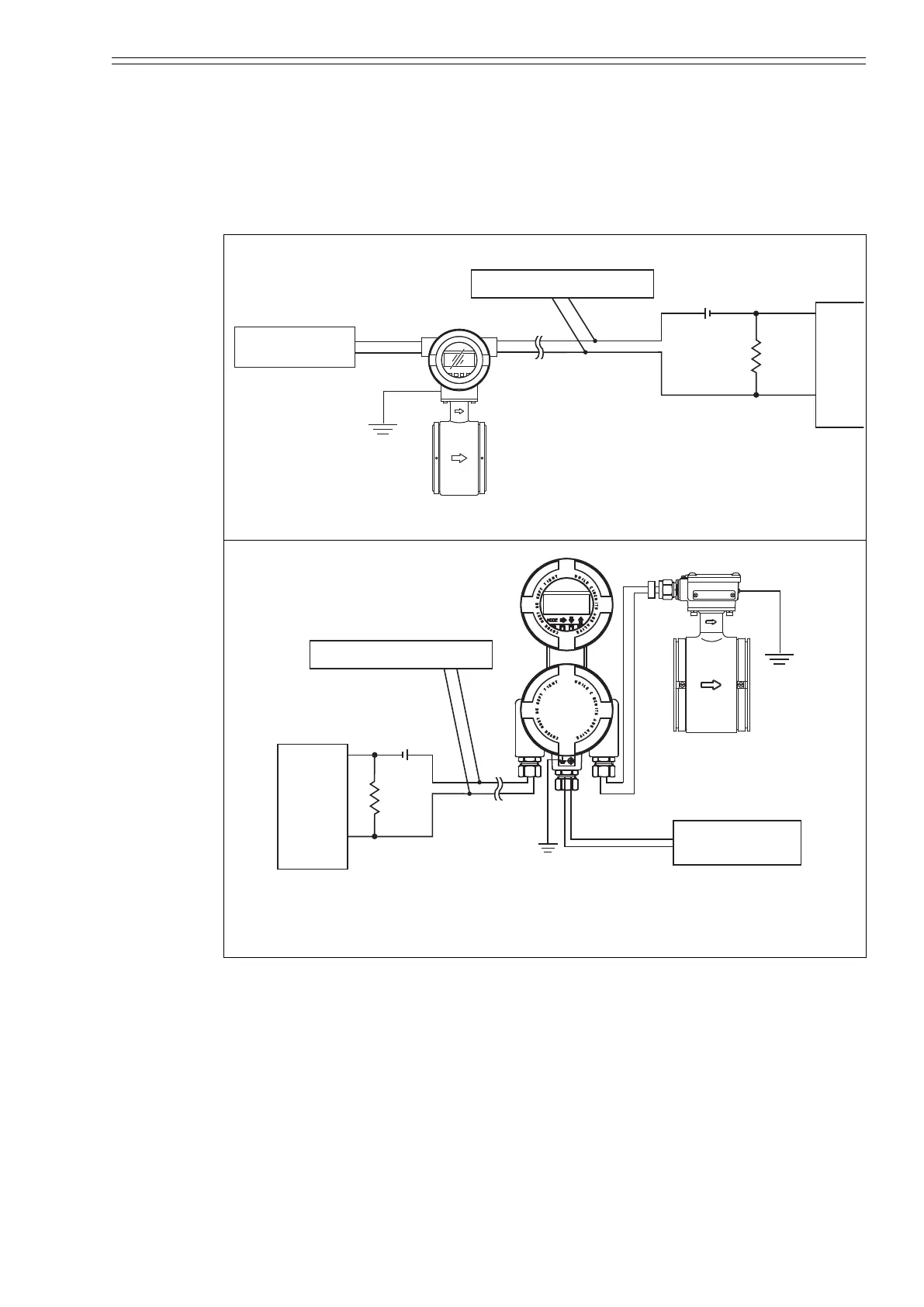

Figure 1-3-1 System configuration for analog output 2 (Integral type)
Figure 1-3-2 System configuration for analog output (Remote type)
Communicator
+
+
SFC / HART Communicator
4-20 mA
Analogue signal
250Ω
resistance
Power supply
24V DC
Host
contro
system
+
++
Pulse output
receiving function
Pulse
output
Grounding*
--
---
Signal receiver
(open collector)
Two wired magnetic flowmeter
*: The most effective grounding
method is direct connection to
earth ground with minimal
impedance.
Communicator
SFC / HART Communicator
4-20 mA
Analog signal
250Ω
resistance
power supply
24V DC
Host
control
system
(1-5V
input)
+
+
+
+
Pulse output
receiving function
Pulse output
Grounding *
-
-
Two wired magnetic flowmeter
(Remote type)
Signal receiver
(open collector)
*: The most effective grounding
method is direct connection to
earth ground with minimal
impedance.
Grounding *
