User Manual
Flashing The device connected to the corresponding port is active.
Off No wired device is connected to the corresponding port
On An inactive device is connected to the corresponding port
LAN 1-4
Flashing The device connected to the corresponding port is active.
WLAN
Off No wireless device connected to the router
Flashing Access point is enabled

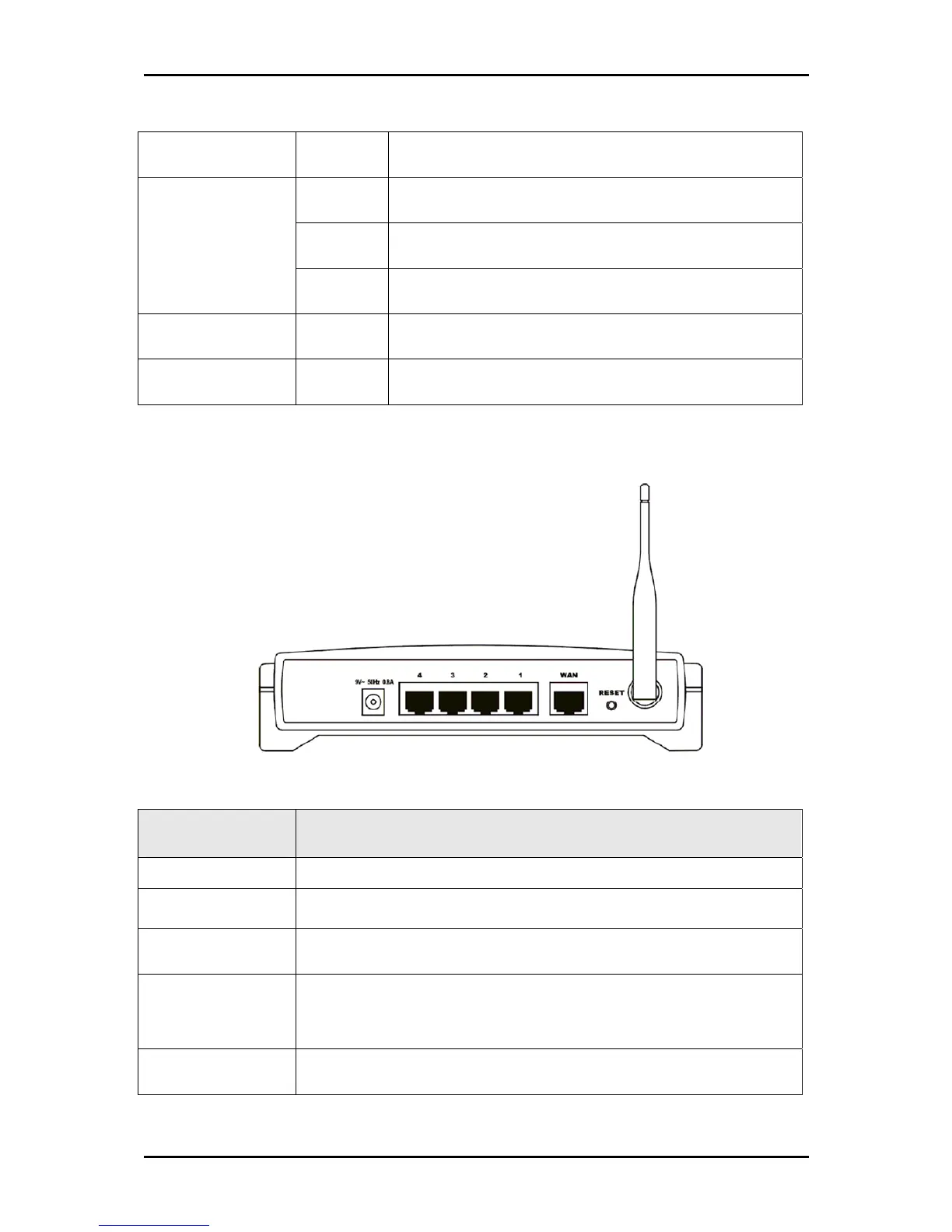

Rear Panel
Rear Panel
Label Description/Function
9V 50Hz .8A AC power socket
4-1 Ethernet port
WAN Port for connecting to a cable or DSL modem
RESET To manually reset the router, unplug the power first. Press RESET then plug the
power cord without releasing RESET for 3-4 seconds. When the SYS LED lights
up, release RESET and then wait for the router to restart.
Antenna Access point
Page 10 of 102
To Next Page
