Backyard Discovery 1801080 - WOODRIDGE ELITE - STEP 09

STEP 9
T-NUT 5/16
SD
(5)
BOLT WH
5/16x2 1/4 SD
(2)
BOLT WH
5/
16x3 3/4 SD
(3)
WASHER
LO
CK EXT
8x19 SD
(5)
BOLT WH 5/16x2 1/4 SD
(2 PLCS)
BOLT WH 5/16x3 3/4 SD
(3 PLCS)
WASHER LOCK EXT 8x19 SD
(5 PLCS)
T-NUT 5/16 SD
(5 PLCS)

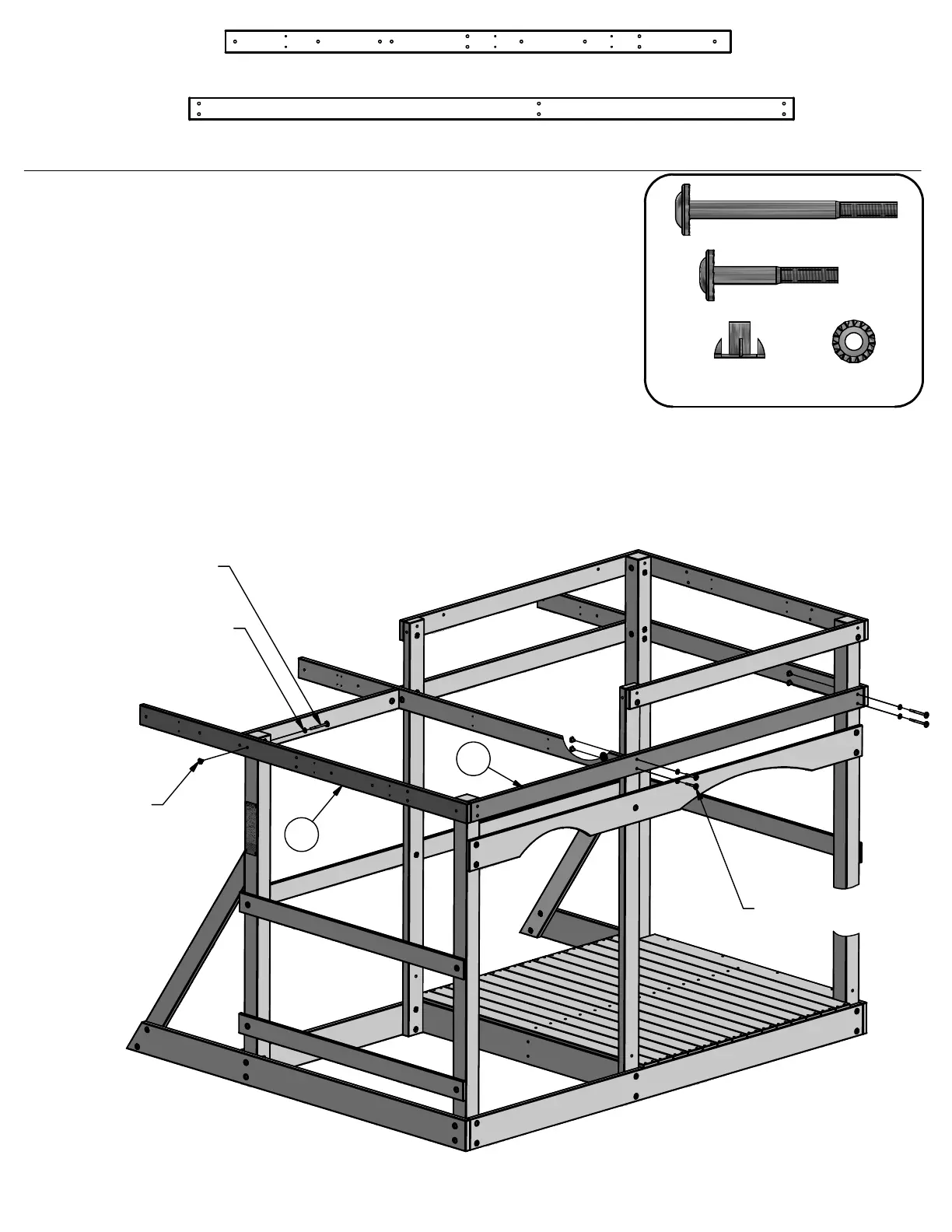

H1 - FLOOR SUPPORT - W4L09076
1"
x3 3/8"x90 1/8" (24x86x2288)
(1)
H3 - FLOOR SUPPORT - W4L09078
1"x3 3/8"x75 3/8" (24x86x1914)
(1)
H3
H1
38
30
