Backyard Discovery 1801080 - WOODRIDGE ELITE - STEP 72

STEP 72
SCREW PFH
8x1 1/4 SD
(12)
H18 - SEAT - W4L11195
1"
x3 3/8"x49 7/8" (24x86x1266)
(1)
G7 - SEAT - W4L11189
1"x5 1/4"x49 7/8" (24x134x1266)
(1)
M28 - CLEAT - W4L11232
5/8"x3 3/8"x5 1/4" (16x86x132)
(2)
NOTE:
PRE-DRILL 3/16" (5mm)
FOR
ALL SCREWS
THIS STEP
12 1/8"
12 1/8"
12 1/8"
4 3/8"
9 1/8"
SCREW PFH 8x1 1/4 SD
(8 PLCS)
G7
H18
M28
CENTER ON SEATS
SCREW PFH 8x1 1/4 SD
(4 PLCS)

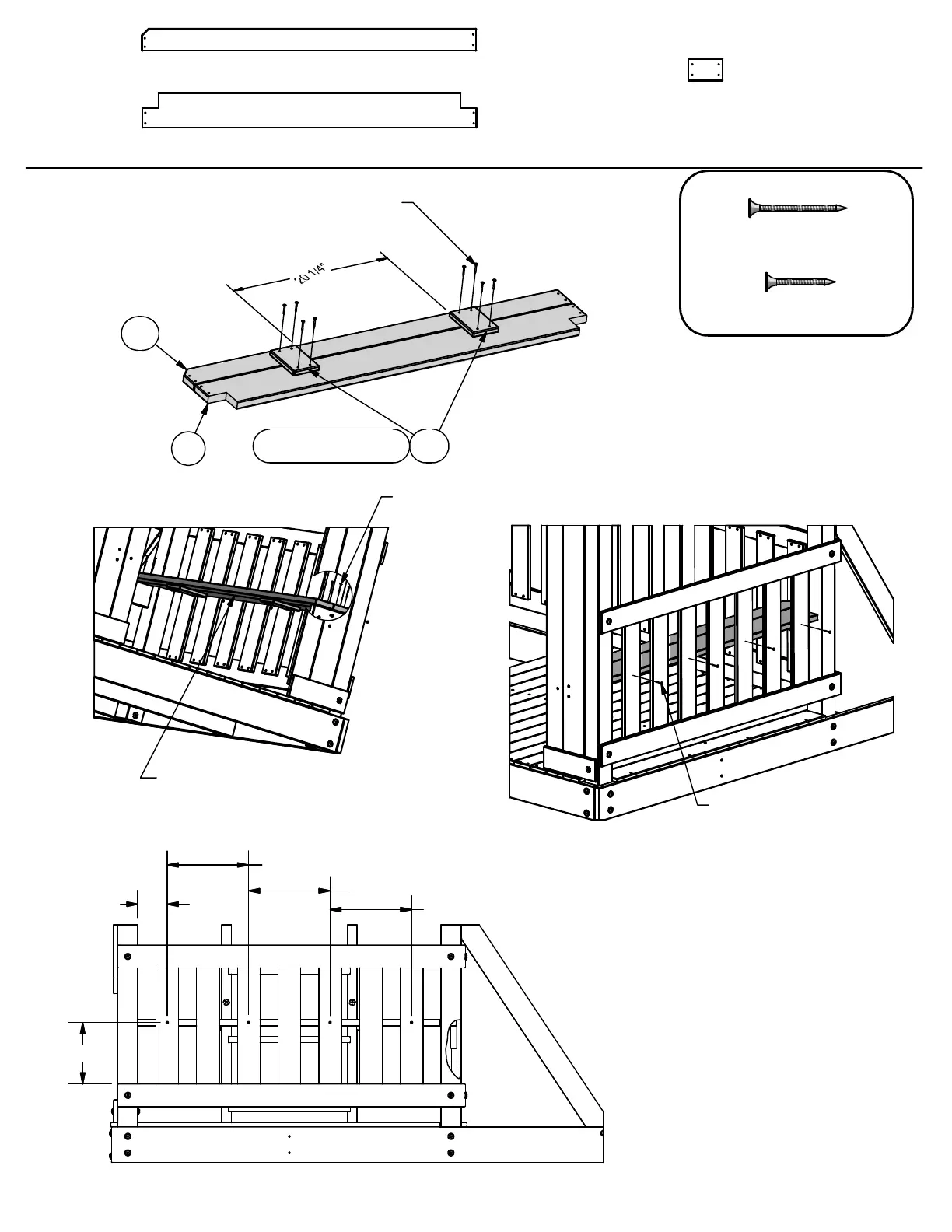

BENCH ASSEMBLY
SCREW PFH 8x1 3/4 SD
(8 PLCS)
SCREW PFH
8x
1 3/4 SD
(8)
