Backyard Discovery 1801080 - WOODRIDGE ELITE - STEP 25

M

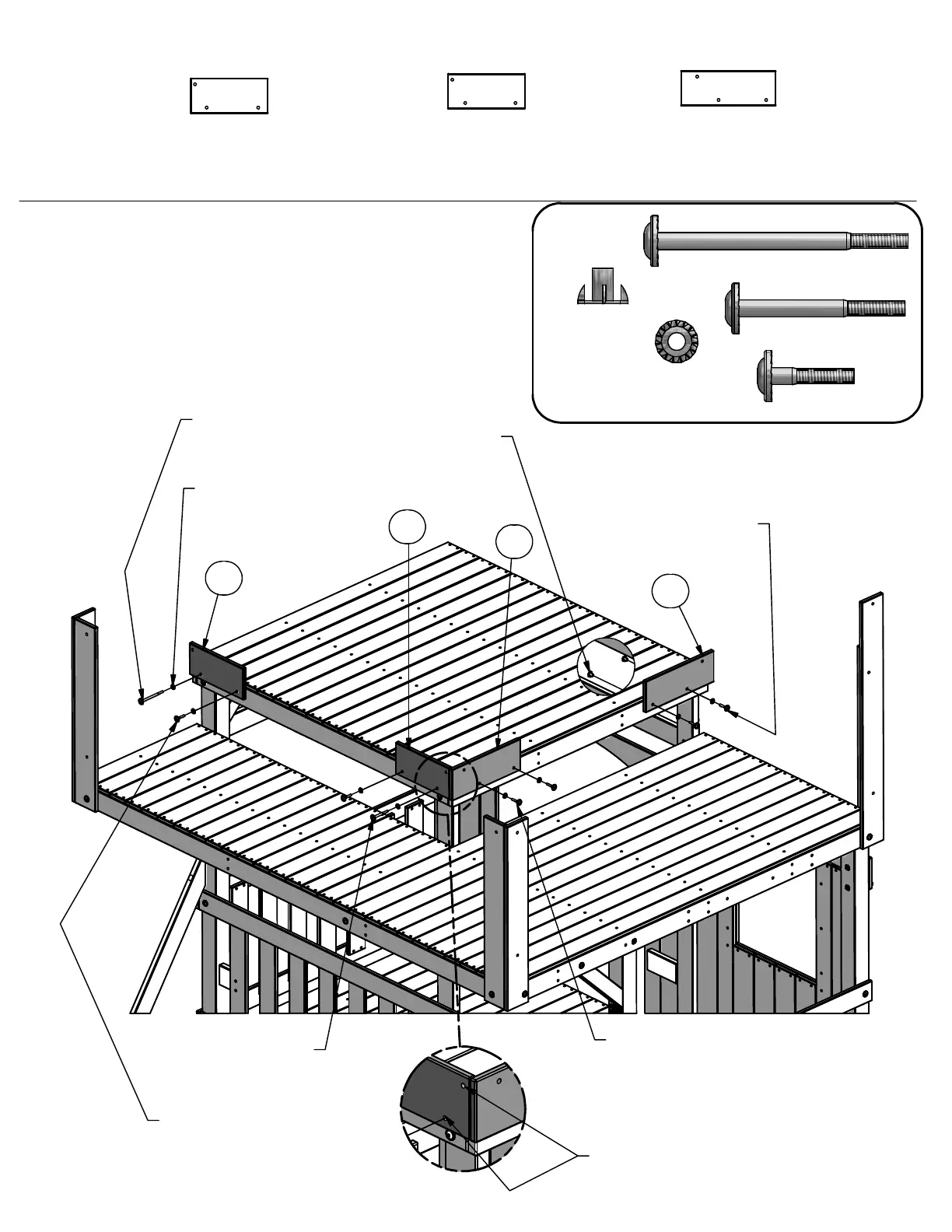

STEP 25
T-NUT 5/16
SD
(8)
WASHER
LOCK EXT
8x19 SD
(8)
BOLT WH
5/16x4 1/2 SD
(1)
BOLT WH
5/16x1 1/2 SD
(6)
BOLT WH
5/16x3 SD
(1)
K13 - WALL RAIL - W4L09071
5/8
"x5 1/4"x14 1/8" (16x134x360)
(2)
K14 - WALL RAIL - W4L09068
5/8"x5 1/4"x11 5/8" (16x134x294)
(1)
K15 - WALL RAIL - W4L09067
5/8"x5 1/4"x11 5/8" (16x134x294)
(1)
NOTE HOLES
K15
K14
K13
K13
BOLT WH 5/16x4 1/2 SD
(1 PLC)
WASHER LOCK EXT 8x19 SD
(8 PLCS)
BOLT WH 5/16x1 1/2 SD
(1 PLC)
BOLT WH 5/16x3 SD
(1 PLC)
BOLT WH 5/16x1 1/2 SD
(3 PLCS)
BOLT WH 5/16x1 1/2 SD
(2 PLCS)
T-NUT 5/16 SD
TYPICAL INSTALLATION
(8 PLCS)
46
