Backyard Discovery 1801080 - WOODRIDGE ELITE - STEP 19

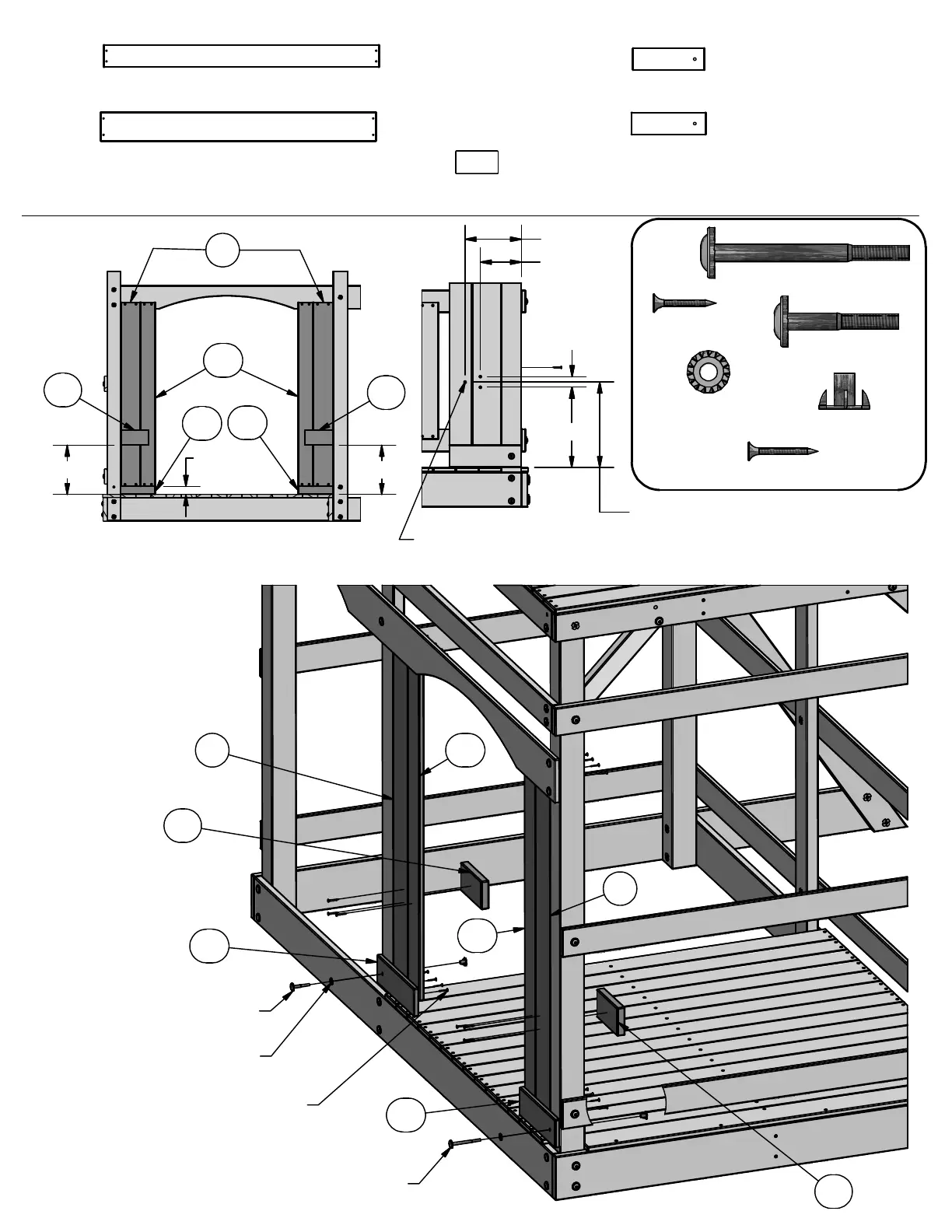

STEP 19
T-NUT 5/16
SD
(2)
BOLT WH
5/16x2 SD
(1)
WASHER
LOCK EXT
8x19 SD
(2)
BOLT WH
5/16x3 1/2 SD
(1)
SCREW PFH
8x1 1/8 SD
(16)
M10 - WALL BOARD - W4L11223
5/8
"x3 3/8"x41 1/8" (16x86x1044)
(2)
L4 - WALL BOARD - W4L11211
5/8"x4 3/8"x41 1/8" (16x112x1044)
(2)
M26 - WALL RAIL - W4L09082
5/8"x3 3/8"x11 1/8" (16x86x284)
(1)
M27 - WALL RAIL - W4L09083
5/8"x3 3/8"x10 3/4" (16x86x274)
(1)
1 13/16"
M27
M10
M26
L4
BOLT WH 5/16x2 SD
(1 PLC)
WASHER LOCK EXT 8x19 SD
(2 PLCS)
BOLT WH 5/16x3 1/2 SD
(1 PLC)
SCREW PFH 8x1 1/8 SD
(16 PLCS)
M26
L4 M10
M10
L4
M27
H23
H23
11" 11"
SCREW PFH 8x1 1/4 SD
(6 PLCS)
6 1/8"
1 5/8"
12"
8 7/16"
12 11/16"
NOTE:
PRE-DRILL 3/16" (5mm)
HOLES TO MOUNT 'H23'
BOARDS IN THIS STEP.
H23
H23
H23 - SUPPORT BOARD - W4L11452
1"x3 3/8"x6 1/4" (24x86x160)
(2)
SCREW PFH
8x1
1/4 SD
(6)
40
