PROGRAMMING THE M5000
The M5000 amplifier is pre-programmed from the factory. No additional programming is necessary, however, for special
features, the meter can be programmed for specific requirements.

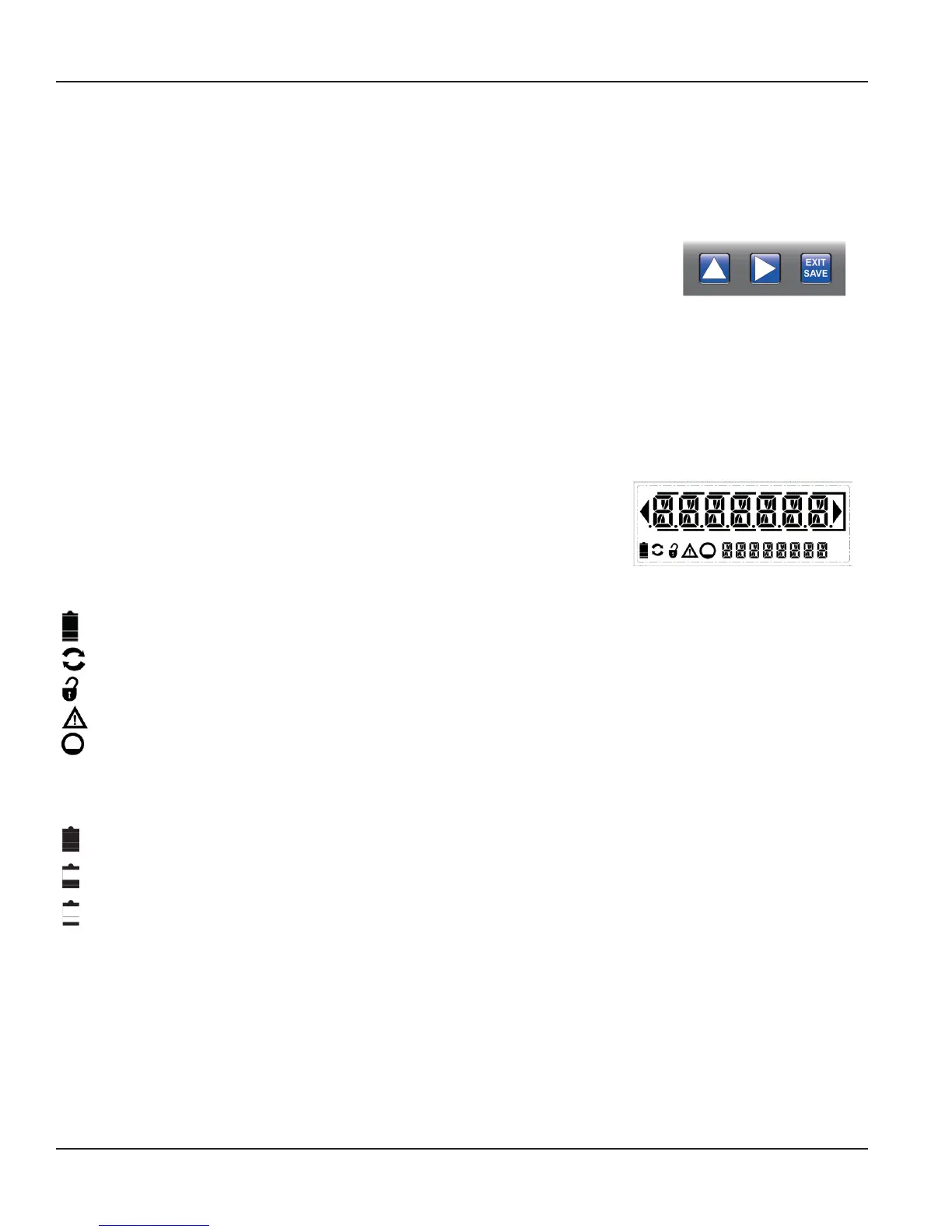

Function Buttons
All M5000 programming is accomplished using the three function buttons located on the
front of the amplifier. Screen navigation and digit and parameter selection is performed by a
combination of these three buttons.
The up-arrow button allows scrolling through seven menu screens. This button is also used to advance numerical digits to
change values, such as frequency, period, and EP level as well as toggle on-off conditions and flow directions.
The right-arrow button allows digit selection from left to right and allows selecting either the top row of the display or the
bottom row (the bottom row is active when flashing).
The EXIT SAVE button allows the saving of changed values and conditions, toggling between the upper and lower display
lines and returning to a previous menu.
Display
The top row displays seven digits for specific values on each screen and the bottom row
displays meter and register condition icons and current screen descriptions.
Icons
Battery status
Communication interface is activated (RS232, IrDA, M-Bus)
Meter is unlocked
Error message
Empty pipe detection
Battery Levels
The battery icon indicates three levels of capacity:
Greater than 3 volts (maximum = 3.6V)
Greater than 2 volts, less than 3 volts (recommended battery replacement)
Less than 2 volts (measuring has stopped)
M-Series® M5000 Electromagnetic Flow Meter
Page 18 September 2013
