2A-2. ENGINE BAY COVER & FUEL FILLING FLAP

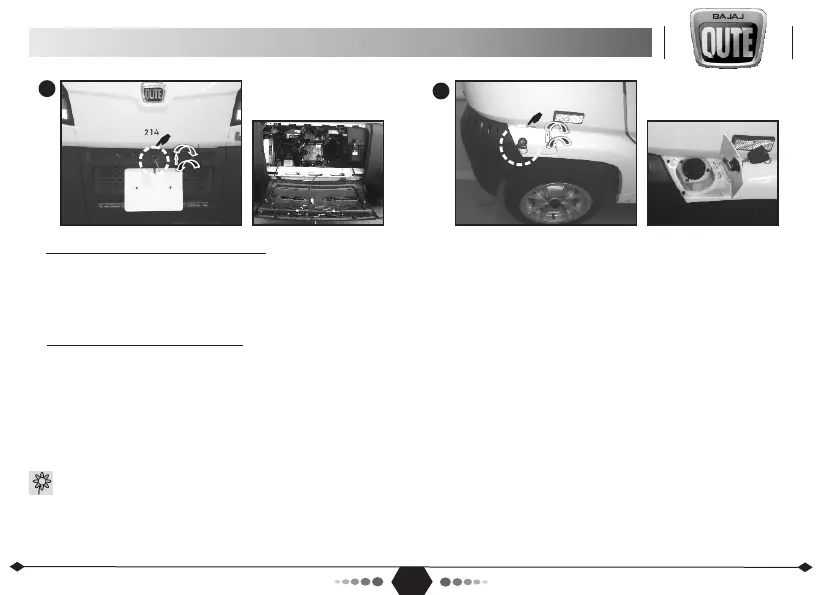

a. Engine bay cover with lock :
Engine is mounted in engine bay at the rear of the vehicle underneath rear passenger seat. An engine bay
cover with locking provision is provided to cover the engine.
To access engine, open engine bay cover. To unlock or lock the bay cover, insert key & rotate it clockwise
or anticlockwise respectively
b. Fuel filling flap with lock:
Fuel Tank is mounted on rear RH side inside the engine cabin, A provision is made for fuel filling at rear RH
side of vehicle. It is covered by flap with lock. For filling fuel in tank, unlock & open the flap.
To unlock or lock the flap, insert key & rotate it clockwise or anticlockwise respectively.
Remove the fuel cap by rotating it in anti- clockwise direction.
After filling the fuel in tank fit the fuel cap by rotating it in clockwise direction.
Warning:
- Ensure that fuel cap is fitted properly.
- Do not allow fuel to enter ground water, the soil or the sewage system.
